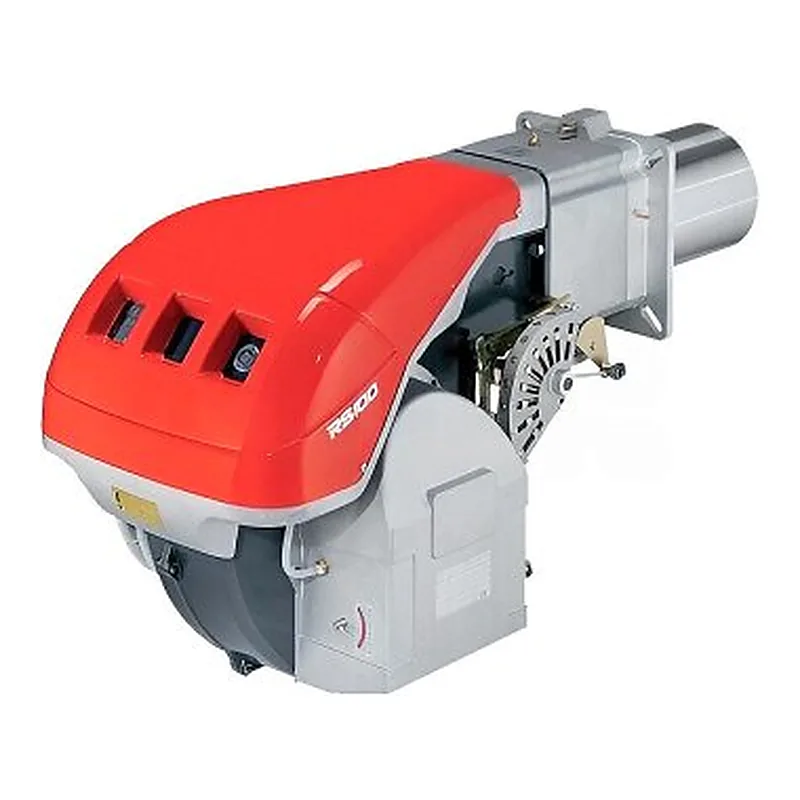

Riello RS 100/M TC FS1 — spare parts
- Fuel
- Gas
- Output
- 150–1340 kW
- Parts
- 12
- Factory code
- 3787282
- Series
- RS 100/M · 6
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RS 100/M TC FS1 · 6
—on request
—on request
—on request
—on request
—on request
Ionization & ignition electrodes for Riello RS 100/M TC FS1 · 2
—on request
—on request
Motors for Riello RS 100/M TC FS1 · 2
—on request
—on request
Boiler pipes, flanges & connections for Riello RS 100/M TC FS1 · 1
—on request
Gas nozzles & injectors for Riello RS 100/M TC FS1 · 1
—on request
What is inside Riello RS 100/M TC FS1
Components named in the manufacturer's documentation.
- RS 100/M 829T1
- RS 100/M 829T80
- RS 130/M MZ 830T1
- RS 130/M MZ 830T80
- RS 70/M 828T1
- RS 70/M 828T80
Specifications
FuelGas
Output150–1340 kW
Gas connectionRp 2"
Power consumption2100 W
Net weight73 kg
Flame tube length250 mm
Flame tube diameter179 mm
Flame tube typeshort
Back pressure (combustion chamber)-1–10.5 mbar
Gas consumption15–116 m³/h
Overall dimensions116.1 x 52.7 x 55.5 cm
Delivery scopewith combustion head, without gas train
Other versions of this seriesRiello RS 100/M · 6
Parts often differ between versions of one series: pick the version named on your rating plate.
- RS 100/M
2 parts · 3787282 · 3789710 +1 - RS 100/M TC
15 parts · 3789710 - RS 100/M TC FS1
12 parts · 3787282 - RS 100/M TC FS1 MB 415/1 - RT 30
1 part · 3789710-3970180-3000843 - RS 100/M TL
15 parts · 3789711 - RS 100/M TL FS1 MB 415/1 - RT 30
1 part · 3789711-3970180-3000843
Questions about Riello RS 100/M TC FS1 parts
Which burner components fit Riello RS 100/M TC FS1?
These fit Riello RS 100/M TC FS1: Riello Equalizing Disc 3012027; Riello Mixing Device Head 3012028; Riello Mixing device head 3012029; Riello Mixing device head 3012030; Riello Gas Pressure Measurement Nipple 3012049; Riello Adjustment Rod 3012054. ↑
Which ionization & ignition electrodes fit Riello RS 100/M TC FS1?
These fit Riello RS 100/M TC FS1: Riello Ignition Electrode 3012016; Riello Ionization Electrode 3012176. ↑
Which motors fit Riello RS 100/M TC FS1?
These fit Riello RS 100/M TC FS1: Riello Electric Motor 3003966; Riello Electric Motor 3003968. ↑
Which boiler pipes, flanges & connections fit Riello RS 100/M TC FS1?
These fit Riello RS 100/M TC FS1: Riello Flange Gasket 3003991. ↑
Which gas nozzles & injectors fit Riello RS 100/M TC FS1?
These fit Riello RS 100/M TC FS1: Riello Gas nozzle 3012025. ↑
