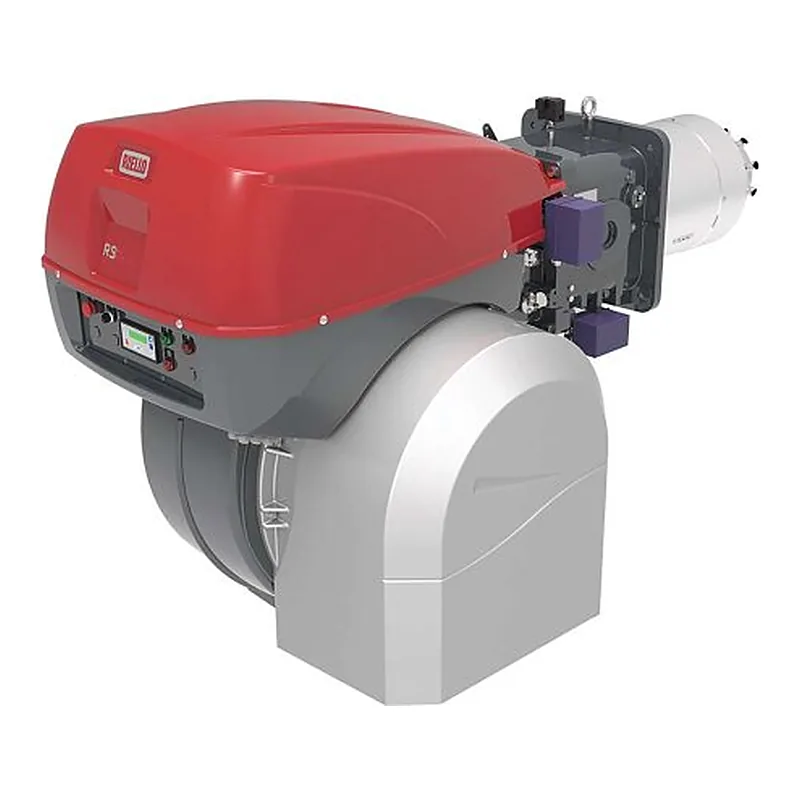

Riello RS 1200/E BLU TC FS1/FS2 — spare parts
- Fuel
- Gas
- Output
- 1500–11000 kW
- Parts
- 7
- Factory code
- 20057515
- Series
- RS 1200/E · 2
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RS 1200/E BLU TC FS1/FS2 · 4
—on request
—on request
—on request
Burner pipes, flanges & connections for Riello RS 1200/E BLU TC FS1/FS2 · 1
Ionization & ignition electrodes for Riello RS 1200/E BLU TC FS1/FS2 · 1
—on request
Nozzle adapters for Riello RS 1200/E BLU TC FS1/FS2 · 1
What is inside Riello RS 1200/E BLU TC FS1/FS2
Components named in the manufacturer's documentation.
- LMV51
Specifications
FuelGas
Output1500–11000 kW
Fan motor power25000 W
Power consumption27200 W
Net weight500 kg
Protection class (IP)IP55
Flame tube length670 mm
Flame tube diameter456 mm
Flame tube typestandard
Back pressure (combustion chamber)0–25 mbar
Gas consumption150–1100 m³/h
Noise level99.7 dB
Operating temperature0–50 °C
Overall dimensions230.7 x 125 x 133.8 cm
Delivery scopewith combustion head, without gas train
Additional featurescontinuous ventilation
Other versions of this seriesRiello RS 1200/E · 2
Parts often differ between versions of one series: pick the version named on your rating plate.
- RS 1200/E BLU TC FS1/FS2
7 parts · 20057515 - RS 1200/E C01 TC FS1-FS2
3 parts · 20061950
Questions about Riello RS 1200/E BLU TC FS1/FS2 parts
Which burner components fit Riello RS 1200/E BLU TC FS1/FS2?
These fit Riello RS 1200/E BLU TC FS1/FS2: Riello Gas Ramp 20169192; Riello Gas Manifold VGD 100/1 20169193; Riello Continuous Ventilation Block 3010094; Riello Adapter DN 80-DN 100 3010223. ↑
Which burner pipes, flanges & connections fit Riello RS 1200/E BLU TC FS1/FS2?
These fit Riello RS 1200/E BLU TC FS1/FS2: Riello Adapter RS 300-800 DN80/80 153 BR AK 3010222. ↑
Which ionization & ignition electrodes fit Riello RS 1200/E BLU TC FS1/FS2?
These fit Riello RS 1200/E BLU TC FS1/FS2: Riello Ignition Electrodes 20011338. ↑
Which nozzle adapters fit Riello RS 1200/E BLU TC FS1/FS2?
These fit Riello RS 1200/E BLU TC FS1/FS2: Riello Nozzle adapter RS 1000-1200 80/100 - DÜZ 3010224. ↑
