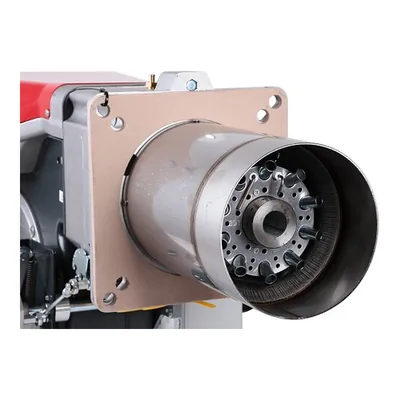

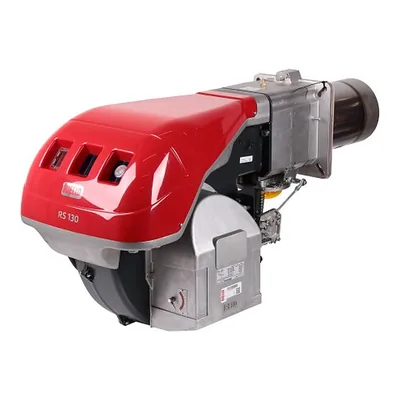

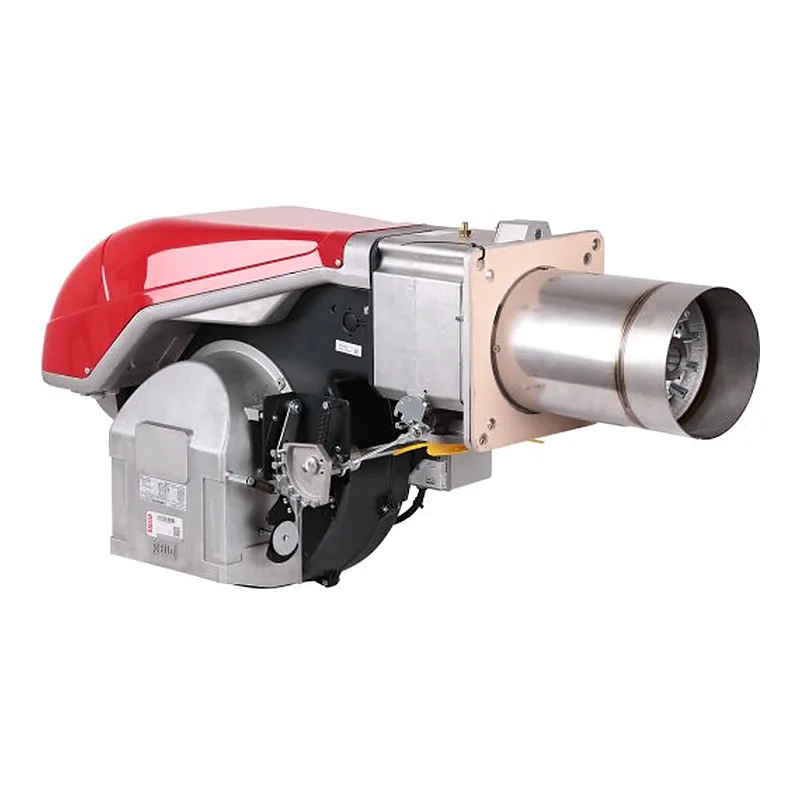

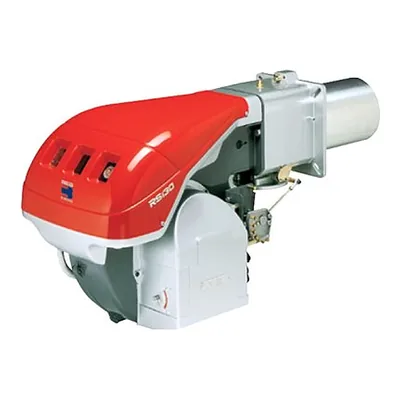

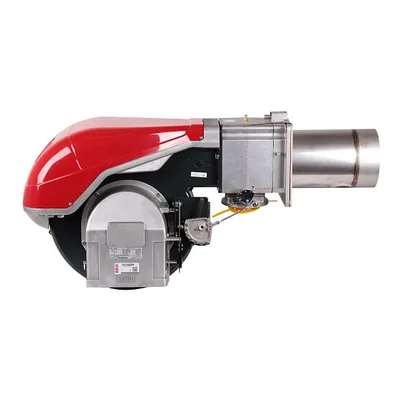

Riello RS 130 TC FS1 — spare parts
- Fuel
- Gas
- Output
- 372–1512 kW
- Parts
- 16
- Versions
- 2
- Series
- RS 130 · 6
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RS 130 TC FS1 · 4
—on request
—on request
—on request
Actuators for Riello RS 130 TC FS1 · 3
433.78 EURexcl. VAT · import VAT and duties on delivery
—on request
—on request
Boiler pipes, flanges & connections for Riello RS 130 TC FS1 · 1
—on request
Burner pipes, flanges & connections for Riello RS 130 TC FS1 · 1
—on request
Control boxes for Riello RS 130 TC FS1 · 1
226.43 EURexcl. VAT · import VAT and duties on delivery
Gas nozzles & injectors for Riello RS 130 TC FS1 · 1
—on request
Ignition components for Riello RS 130 TC FS1 · 1
—on request
Ionization & ignition electrodes for Riello RS 130 TC FS1 · 1
—on request
Motors for Riello RS 130 TC FS1 · 1
—on request
Sensors and switches for Riello RS 130 TC FS1 · 1
—on request
Thermometers and manometers for Riello RS 130 TC FS1 · 1
—on request
What is inside Riello RS 130 TC FS1
Components named in the manufacturer's documentation.
- LKS 210-21 in stock
- RMG88.62C2 in stock
- SIEMENS RMG88.62C2 in stock
- 3012025
- 1200 SE 50
- 1900 SE 65 FC CT
- 3012023
- 3012024
- 3100 SE 80 FC CT
- COMPACT 8/20 PM
- LGW 10 A2
- LKS 210
- MB DLE 412
- MB DLE 415
- MB DLE415 + CT
- MB ZR DLE 412
- MB ZR DLE 415
- MBC 1200 SE (CT)
- MBC 1200 SE 50
- MBC 1900 SE
- MBC 1900-3100 SE (CT)
- MBC 3100 SE 80
- MBDLE 407
- MBDLE 410
Specifications
FuelGas
Output372–1512 kW
Firing stagesTwo-stage
Fan motor power2200 W
Power consumption2600 W
Net weight76 kg
Protection class (IP)IP40
Flame tube length280 mm
Flame tube diameter189 mm
Flame tube typestandard
Back pressure (combustion chamber)-0.9–10.5 mbar
Gas consumption93–151 m³/h
Noise level89.5 dB
Operating temperature0–40 °C
Overall dimensions112 x 55.3 x 55.5 cm
Delivery scopewith combustion head
Versions
20194288
3785502
Other versions of this seriesRiello RS 130 · 6
Parts often differ between versions of one series: pick the version named on your rating plate.
- RS 130
2 parts · 20194288 · 20194295 +6 - RS 130 TC FS1
16 parts · 20194288 · 3785502 - RS 130 TC FS1 MB 415/1 CT RT 30
12 parts · 3785502-3970198-3000843 - RS 130 TL
15 parts · 20194295 · 3785501 - RS 130 TL D
14 parts · 3785503 - RS 130 TL FS1 MB 415/1 CT RT 30
12 parts · 3785503-3970198-3000843
Questions about Riello RS 130 TC FS1 parts
Which burner components fit Riello RS 130 TC FS1?
These fit Riello RS 130 TC FS1: Riello Spring 3003879; Riello Spring Retainer 3003880; Riello Mixing device head 3012030; Riello Gas Pressure Measurement Nipple 3012049. ↑
Which actuators fit Riello RS 130 TC FS1?
These fit Riello RS 130 TC FS1: Honeywell Servo motor B1-15S2 LKS210-21; Riello Steering rod 3012060; Riello Actuator Shaft 3012710. ↑
Which boiler pipes, flanges & connections fit Riello RS 130 TC FS1?
These fit Riello RS 130 TC FS1: Riello Flange Gasket 3003991. ↑
Which burner pipes, flanges & connections fit Riello RS 130 TC FS1?
These fit Riello RS 130 TC FS1: Riello Gas Elbow 3012042. ↑
Which control boxes fit Riello RS 130 TC FS1?
These fit Riello RS 130 TC FS1: Riello Burner control RMG88.62C2 3013073. ↑
Which gas nozzles & injectors fit Riello RS 130 TC FS1?
These fit Riello RS 130 TC FS1: Riello Gas nozzle 3012025. ↑
