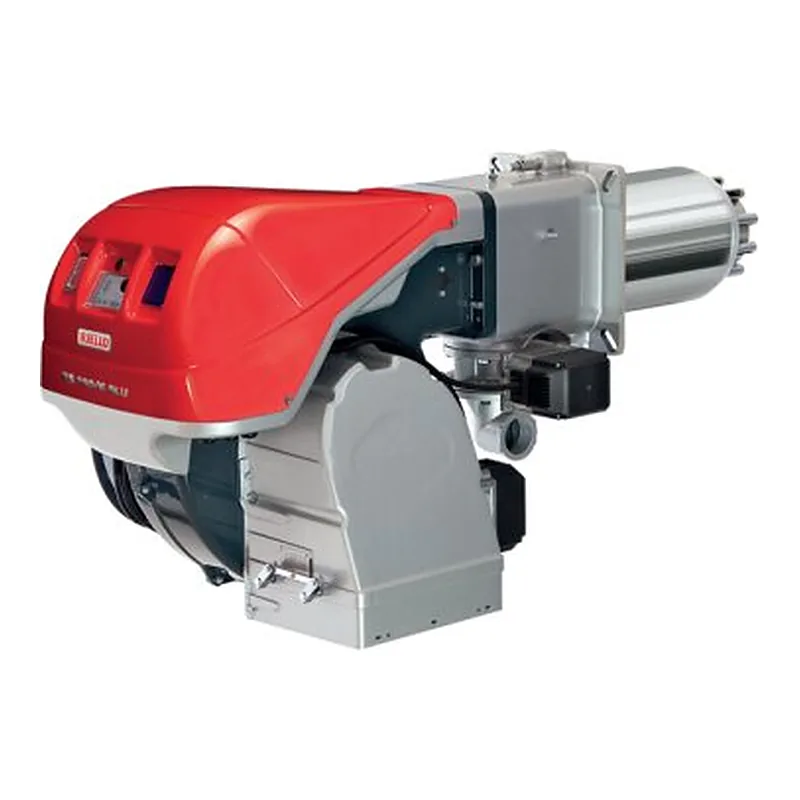

Riello RS 310/E MZ TC FS1 — spare parts
- Fuel
- Gas
- Output
- 600–3900 kW
- Parts
- 2
- Factory code
- 20068353
- Series
- RS 310/E · 4
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RS 310/E MZ TC FS1 · 1
Gas valves for Riello RS 310/E MZ TC FS1 · 1
—on request
Specifications
FuelGas
Output600–3900 kW
Fan motor power7500 W
Supply voltage380 V
Power consumption9100 W
Net weight250 kg
Protection class (IP)IP54
Flame tube length519 mm
Flame tube diameter306 mm
Flame tube typestandard
Back pressure (combustion chamber)-0.5–17.97 mbar
Gas consumption40–363 m³/h
Noise level78 dB
Operating temperature0–40 °C
Overall dimensions168.7 x 89 x 79 cm
Delivery scopewith combustion head
Additional featurescontinuous ventilation
Other versions of this seriesRiello RS 310/E · 4
Parts often differ between versions of one series: pick the version named on your rating plate.
- RS 310/E BLU TC FS1
1 part · 20065783 · 20068261 - RS 310/E C02 FS1 BT 330
1 part · 20218987 - RS 310/E MZ TC
1 part · 20175621 - RS 310/E MZ TC FS1
2 parts · 20068353
Questions about Riello RS 310/E MZ TC FS1 parts
Which burner components fit Riello RS 310/E MZ TC FS1?
These fit Riello RS 310/E MZ TC FS1: Riello Continuous Ventilation Block 3010094. ↑
Which gas valves fit Riello RS 310/E MZ TC FS1?
These fit Riello RS 310/E MZ TC FS1: Siemens Gas Solenoid Valve VGD20.503. ↑
