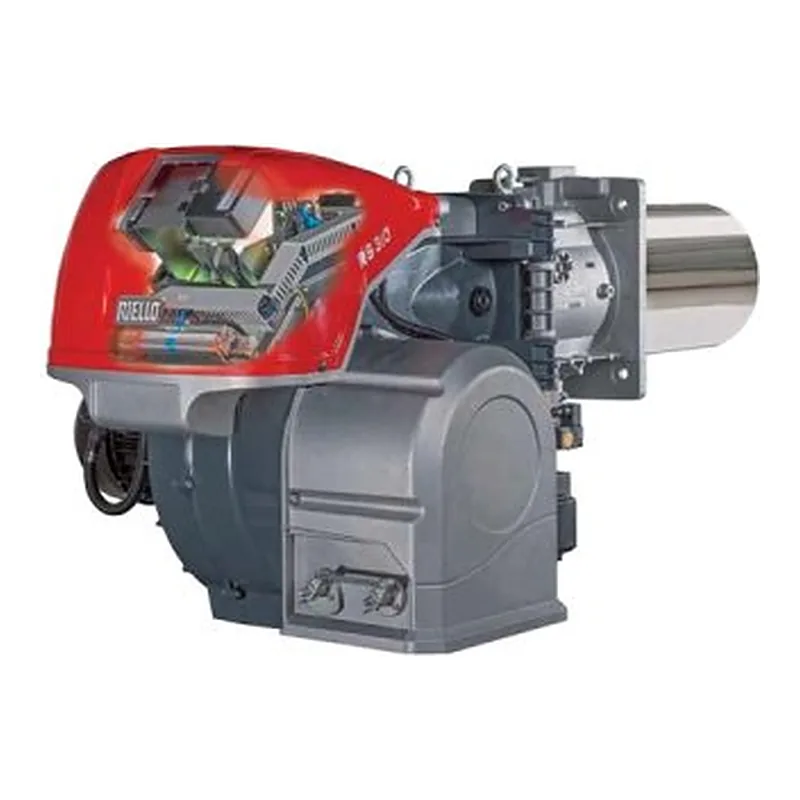

Riello RS 310/M MZ TC FS1 — spare parts
- Fuel
- Gas
- Output
- 600–3900 kW
- Parts
- 11
- Versions
- 2
- Series
- RS 310/M · 2
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RS 310/M MZ TC FS1 · 5
—on request
—on request
—on request
—on request
Pressure switches for Riello RS 310/M MZ TC FS1 · 2
—on request
—on request
Boiler filters, gaskets & seals for Riello RS 310/M MZ TC FS1 · 1
—on request
Ignition cables and connectors for Riello RS 310/M MZ TC FS1 · 1
—on request
Motors for Riello RS 310/M MZ TC FS1 · 1
—on request
Turbulators for Riello RS 310/M MZ TC FS1 · 1
—on request
What is inside Riello RS 310/M MZ TC FS1
Components named in the manufacturer's documentation.
- RMG88
- SQM40
Specifications
FuelGas
Output600–3900 kW
Fan motor power7500 W
Supply voltage380 V
Power consumption8800 W
Net weight250 kg
Protection class (IP)IP54
Flame tube length519 mm
Flame tube diameter306 mm
Flame tube typestandard
Back pressure (combustion chamber)-0.5–17.97 mbar
Gas consumption60–390 m³/h
Noise level78 dB
Operating temperature0–40 °C
Overall dimensions168.7 x 89 x 79 cm
Delivery scopewith combustion head
Versions
20061373
20068351
Other versions of this seriesRiello RS 310/M · 2
Parts often differ between versions of one series: pick the version named on your rating plate.
- RS 310/M BLU TC FS1
11 parts · 20067964 · 20068245 - RS 310/M MZ TC FS1
11 parts · 20061373 · 20068351
Questions about Riello RS 310/M MZ TC FS1 parts
Which burner components fit Riello RS 310/M MZ TC FS1?
These fit Riello RS 310/M MZ TC FS1: Riello Bearing 3003841; Riello Air Pressure Fitting 3003891; Riello Gas Pressure Measurement Nipple 3005447; Riello Bearing 3012795; Riello Burner components 3012841. ↑
Which pressure switches fit Riello RS 310/M MZ TC FS1?
These fit Riello RS 310/M MZ TC FS1: Dungs Pressure switch 272336; FBR Pressure switch 172123. ↑
Which boiler filters, gaskets & seals fit Riello RS 310/M MZ TC FS1?
These fit Riello RS 310/M MZ TC FS1: Riello Copper Washers 3007077. ↑
Which ignition cables and connectors fit Riello RS 310/M MZ TC FS1?
These fit Riello RS 310/M MZ TC FS1: Riello Ignition Electrode Cable 3012393. ↑
Which motors fit Riello RS 310/M MZ TC FS1?
These fit Riello RS 310/M MZ TC FS1: Riello Electric Motor 3013565. ↑
Which turbulators fit Riello RS 310/M MZ TC FS1?
These fit Riello RS 310/M MZ TC FS1: Elco Turbulator 13013328. ↑
