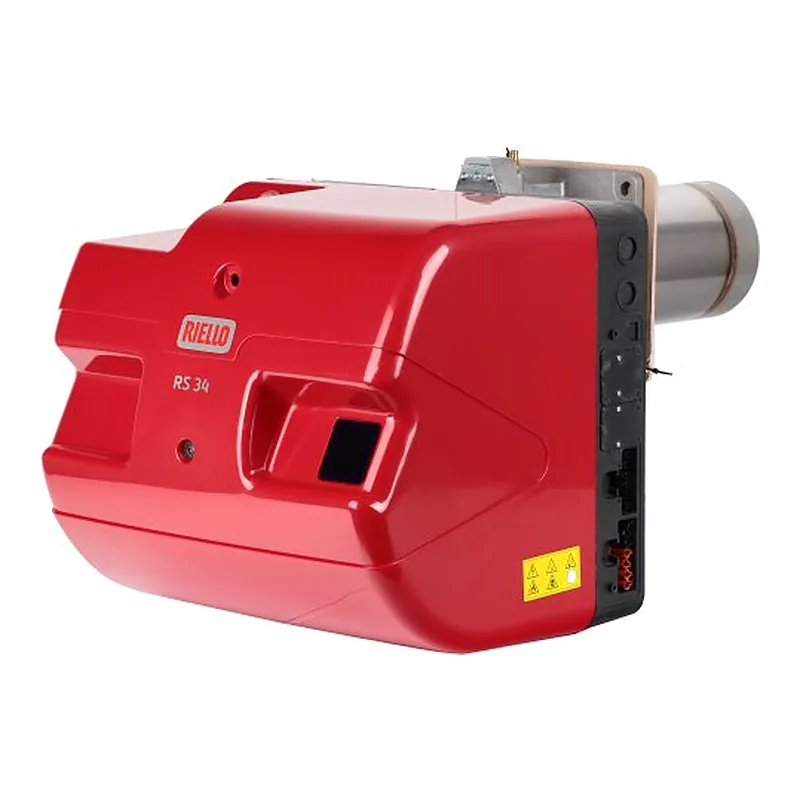

Riello RS 34/M MZ TL — spare parts
- Fuel
- Gas
- Output
- 45–390 kW
- Parts
- 13
- Factory code
- 3788711
- Series
- RS 34/M · 7
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RS 34/M MZ TL · 4
—on request
—on request
—on request
Thermometers and manometers for Riello RS 34/M MZ TL · 2
—on request
—on request
Wiring, cables & electrical components for Riello RS 34/M MZ TL · 2
—on request
—on request
Boiler insulation for Riello RS 34/M MZ TL · 1
—on request
Burner pipes, flanges & connections for Riello RS 34/M MZ TL · 1
—on request
Burners for Riello RS 34/M MZ TL · 1
—on request
Control devices for Riello RS 34/M MZ TL · 1
—on request
Sensors and switches for Riello RS 34/M MZ TL · 1
—on request
What is inside Riello RS 34/M MZ TL
Components named in the manufacturer's documentation.
- 3003784
- 3002316
- 3002480
- 3012885
- 3013362
- 3013490
- 3013751
- 3013752
- 3014037
- 3014038
Specifications
FuelGas
Output45–390 kW
Fan motor power300 W
Supply voltage220 V
Power consumption600 W
Net weight32 kg
Protection class (IP)IP40
Flame tube length351 mm
Flame tube diameter140 mm
Flame tube typeextended
Back pressure (combustion chamber)-1–7 mbar
Gas consumption4.5–39 m³/h
Noise level79 dB
Operating temperature0–40 °C
Overall dimensions85.9 x 44.2 x 42.2 cm
Delivery scopewith combustion head
Other versions of this seriesRiello RS 34/M · 7
Parts often differ between versions of one series: pick the version named on your rating plate.
- RS 34/M
1 part · 3788710 · 3788711 - RS 34/M MZ TC
13 parts · 3788710 - RS 34/M MZ TC FS1 MB 407/1 - RT 20
12 parts · 3788710-3970553 - RS 34/M MZ TC FS1 MB 415/1 - RT 30
12 parts · 3788710-3970180 - RS 34/M MZ TL
13 parts · 3788711 - RS 34/M MZ TL FS1 MB 407/1 - RT 20
12 parts · 3788711-3970553 - RS 34/M MZ TL FS1 MB 415/1 - RT 30
12 parts · 3788711-3970180
Questions about Riello RS 34/M MZ TL parts
Which burner components fit Riello RS 34/M MZ TL?
These fit Riello RS 34/M MZ TL: Riello Air Damper 20014909; Riello Equalizing Disc 3013626; Riello Intake Air Guide 3013745; Riello Gas Pressure Measurement Nipple 3013953. ↑
Which thermometers and manometers fit Riello RS 34/M MZ TL?
These fit Riello RS 34/M MZ TL: Riello Air Damper 3003875; Riello Air Damper 3013901. ↑
Which wiring, cables & electrical components fit Riello RS 34/M MZ TL?
These fit Riello RS 34/M MZ TL: Riello Capacitor 20087030; Riello Anti-interference Filter 3012160. ↑
Which boiler insulation fit Riello RS 34/M MZ TL?
These fit Riello RS 34/M MZ TL: Riello Soundproofing 20014917. ↑
Which burner pipes, flanges & connections fit Riello RS 34/M MZ TL?
These fit Riello RS 34/M MZ TL: Riello Gas Connection Flange 3006802. ↑
Which burners fit Riello RS 34/M MZ TL?
These fit Riello RS 34/M MZ TL: Riello Burner Base 3003784. ↑
