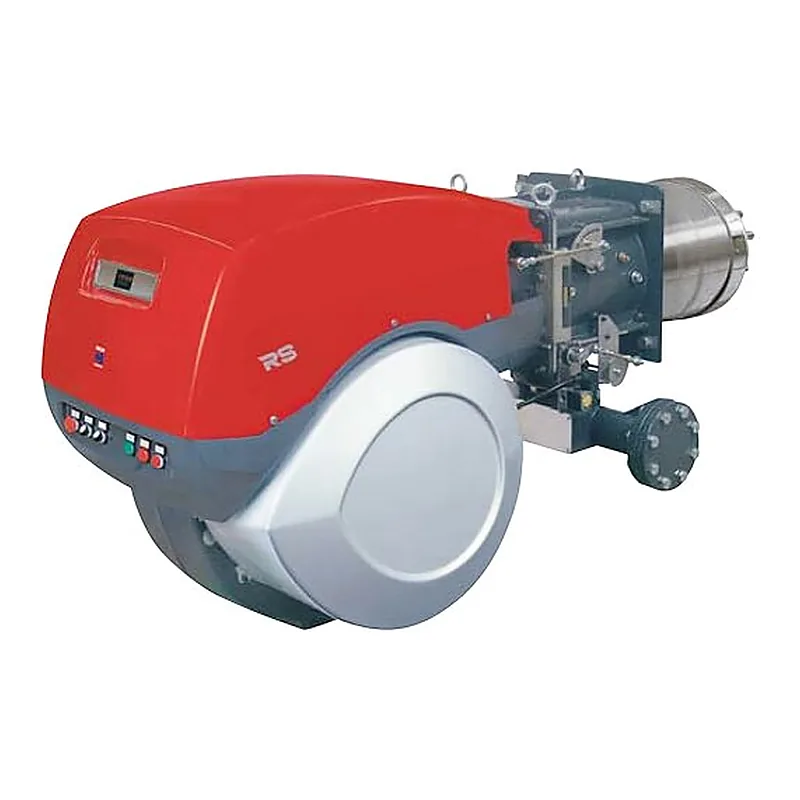

Riello RS 400/EV BLU TC FS1/FS2 — spare parts
- Fuel
- Gas
- Output
- 800–4550 kW
- Parts
- 6
- Factory code
- 3898452
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RS 400/EV BLU TC FS1/FS2 · 3
—on request
—on request
Burners for Riello RS 400/EV BLU TC FS1/FS2 · 1
—on request
Ionization & ignition electrodes for Riello RS 400/EV BLU TC FS1/FS2 · 1
—on request
Pressure switches for Riello RS 400/EV BLU TC FS1/FS2 · 1
—on request
Specifications
FuelGas
Output800–4550 kW
Fan motor power7500 W
Power consumption8800 W
Net weight236 kg
Protection class (IP)IP54
Flame tube length521 mm
Flame tube diameter313 mm
Flame tube typeshort
Back pressure (combustion chamber)0–16 mbar
Gas consumption80–455 m³/h
Gas train pressure6–100 mbar
Noise level85 dB
Operating temperature0–40 °C
Overall dimensions184.6 x 77.5 x 86.7 cm
Delivery scopewith combustion head
Additional featurescontinuous ventilation
Questions about Riello RS 400/EV BLU TC FS1/FS2 parts
Which burner components fit Riello RS 400/EV BLU TC FS1/FS2?
These fit Riello RS 400/EV BLU TC FS1/FS2: Riello Continuous Ventilation Block 3010094; Riello Gas head 3013297; Riello Gas Manifold 3970222. ↑
Which burners fit Riello RS 400/EV BLU TC FS1/FS2?
These fit Riello RS 400/EV BLU TC FS1/FS2: Riello Burner Housing 3013310. ↑
Which ionization & ignition electrodes fit Riello RS 400/EV BLU TC FS1/FS2?
These fit Riello RS 400/EV BLU TC FS1/FS2: Riello Ignition Electrode 3013106. ↑
Which pressure switches fit Riello RS 400/EV BLU TC FS1/FS2?
These fit Riello RS 400/EV BLU TC FS1/FS2: Riello Pressure Switch Cable 3013300. ↑
