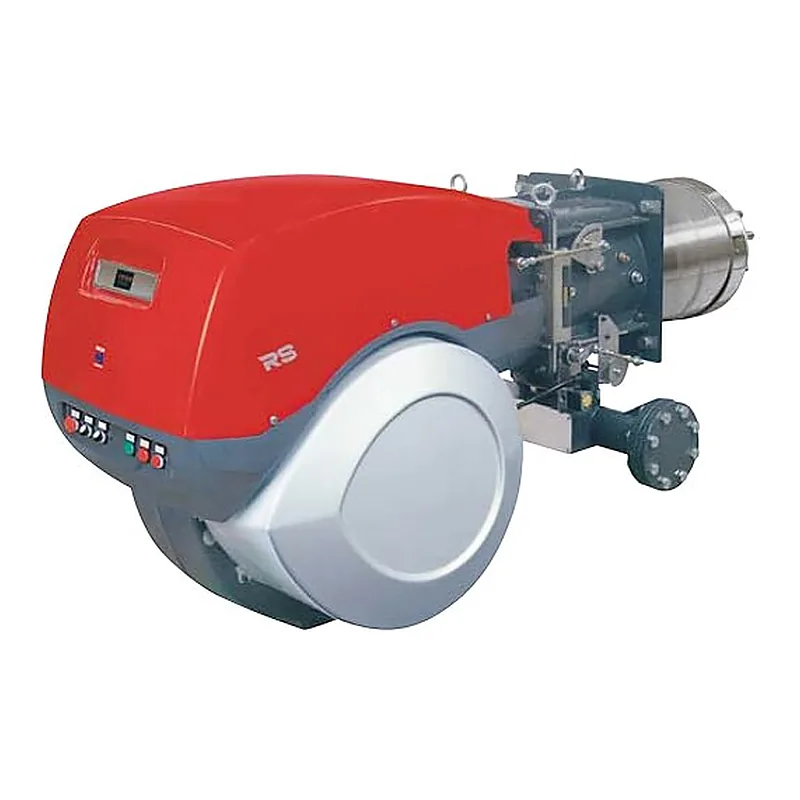

Riello RS 400/M BLU TC FS1 — spare parts
- Fuel
- Gas
- Output
- 950–4590 kW
- Parts
- 12
- Factory code
- 3899510
- Series
- RS 400/M · 2
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RS 400/M BLU TC FS1 · 4
—on request
—on request
—on request
Pressure switches for Riello RS 400/M BLU TC FS1 · 3
—on request
—on request
—on request
Control devices for Riello RS 400/M BLU TC FS1 · 2
—on request
—on request
Actuators for Riello RS 400/M BLU TC FS1 · 1
—on request
Sensors and switches for Riello RS 400/M BLU TC FS1 · 1
—on request
Turbulators for Riello RS 400/M BLU TC FS1 · 1
—on request
What is inside Riello RS 400/M BLU TC FS1
Components named in the manufacturer's documentation.
- LKS 310-35 servomotor
- RMG88.62C2 control box
Specifications
FuelGas
Output950–4590 kW
Fan motor power7500 W
Power consumption8800 W
Net weight236 kg
Protection class (IP)IP54
Flame tube length521 mm
Flame tube diameter313 mm
Flame tube typestandard
Back pressure (combustion chamber)0–16 mbar
Gas consumption95–459 m³/h
Gas train pressure6.3–32.5 mbar
Noise level85 dB
Operating temperature0–40 °C
Overall dimensions184.6 x 77.5 x 86.7 cm
Delivery scopewith combustion head
Other versions of this seriesRiello RS 400/M · 2
Parts often differ between versions of one series: pick the version named on your rating plate.
- RS 400/M BLU
12 parts · 3899500 - RS 400/M BLU TC FS1
12 parts · 3899510
Questions about Riello RS 400/M BLU TC FS1 parts
Which burner components fit Riello RS 400/M BLU TC FS1?
These fit Riello RS 400/M BLU TC FS1: Riello Gas Pressure Measurement Nipple 3005447; Riello Bearing 3012795; Riello Burner components 3012841; Riello Gas Manifold 3970226. ↑
Which pressure switches fit Riello RS 400/M BLU TC FS1?
These fit Riello RS 400/M BLU TC FS1: Dreizler Pressure switch 08-86761; Dungs Pressure switch 272616; FBR Pressure switch 172123. ↑
Which control devices fit Riello RS 400/M BLU TC FS1?
These fit Riello RS 400/M BLU TC FS1: Riello Time Relay 3012785; Riello Fuel-Air Ratio Regulator 3013648. ↑
Which actuators fit Riello RS 400/M BLU TC FS1?
These fit Riello RS 400/M BLU TC FS1: Honeywell Actuator A5C-30 S7 LKS 310-35. ↑
Which sensors and switches fit Riello RS 400/M BLU TC FS1?
These fit Riello RS 400/M BLU TC FS1: Riello Thermal Relay 3013676. ↑
Which turbulators fit Riello RS 400/M BLU TC FS1?
These fit Riello RS 400/M BLU TC FS1: Elco Turbulator 13013328. ↑
