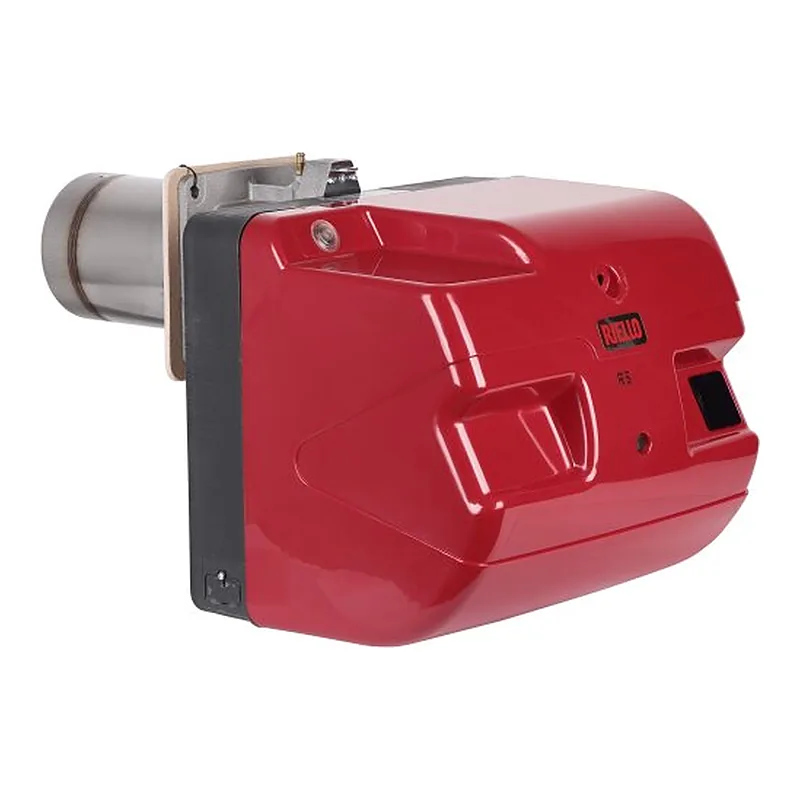

Riello RS 44 MZ TC FS1 MB 420/1 - RSM 30 — spare parts
- Fuel
- Gas
- Output
- 80–550 kW
- Parts
- 11
- Factory code
- 3789110-3970233
- Series
- RS 44 · 7
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RS 44 MZ TC FS1 MB 420/1 - RSM 30 · 5
—on request
—on request
—on request
—on request
Sensors and switches for Riello RS 44 MZ TC FS1 MB 420/1 - RSM 30 · 2
—on request
—on request
Control devices for Riello RS 44 MZ TC FS1 MB 420/1 - RSM 30 · 1
—on request
Ionization & ignition electrodes for Riello RS 44 MZ TC FS1 MB 420/1 - RSM 30 · 1
—on request
Motors for Riello RS 44 MZ TC FS1 MB 420/1 - RSM 30 · 1
—on request
Thermometers and manometers for Riello RS 44 MZ TC FS1 MB 420/1 - RSM 30 · 1
—on request
What is inside Riello RS 44 MZ TC FS1 MB 420/1 - RSM 30
Components named in the manufacturer's documentation.
- RS 34 MZ 883 T
- RS 44 MZ 884 T
- air pressure switch
- ignition transformer
- minimum gas pressure switch
Specifications
FuelGas
Output80–550 kW
Gas connectionRp 2"
Firing stagesTwo-stage
Fan motor power420 W
Supply voltage220 V
Power consumption700 W
Net weight31 kg
Protection class (IP)IP40
Flame tube length216 mm
Flame tube diameter152 mm
Flame tube typestandard
Back pressure (combustion chamber)-1–8 mbar
Gas consumption8–55 m³/h
Gas train pressure4.6–24 mbar
Noise level81 dB
Operating temperature0–40 °C
Overall dimensions72.4 x 44.2 x 42.2 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesRiello RS 44 · 7
Parts often differ between versions of one series: pick the version named on your rating plate.
- RS 44
2 parts · 3789110 - RS 44 MZ TC FS1
13 parts · 3789110 - RS 44 MZ TC FS1 MB 410/1 - RSD 20
11 parts · 3789110-3970532 - RS 44 MZ TC FS1 MB 420/1 - RSM 30
11 parts · 3789110-3970233 - RS 44 MZ TL FS1
13 parts · 3789111 - RS 44 MZ TL FS1 MB 410/1 - RSD 20
11 parts · 3789111-3970532 - RS 44 MZ TL FS1 MB 420/1 - RSM 30
11 parts · 3789111-3970233
Questions about Riello RS 44 MZ TC FS1 MB 420/1 - RSM 30 parts
Which burner components fit Riello RS 44 MZ TC FS1 MB 420/1 - RSM 30?
These fit Riello RS 44 MZ TC FS1 MB 420/1 - RSM 30: Elco Air Damper Regulator 13013722; Riello Cotter Pin 3003816; Riello Washer Set 3007088; Riello Intake Air Guide 3013745; Riello Gas Pressure Measurement Nipple 3013953. ↑
Which sensors and switches fit Riello RS 44 MZ TC FS1 MB 420/1 - RSM 30?
These fit Riello RS 44 MZ TC FS1 MB 420/1 - RSM 30: Riello Key Switch 3003770; Riello Miniature Relay 3013407. ↑
Which control devices fit Riello RS 44 MZ TC FS1 MB 420/1 - RSM 30?
These fit Riello RS 44 MZ TC FS1 MB 420/1 - RSM 30: Riello Fuel-Air Ratio Regulator 20014908. ↑
Which ionization & ignition electrodes fit Riello RS 44 MZ TC FS1 MB 420/1 - RSM 30?
These fit Riello RS 44 MZ TC FS1 MB 420/1 - RSM 30: Elco Ignition Electrode 13013749. ↑
Which motors fit Riello RS 44 MZ TC FS1 MB 420/1 - RSM 30?
These fit Riello RS 44 MZ TC FS1 MB 420/1 - RSM 30: Riello Electric Motor 3013752. ↑
Which thermometers and manometers fit Riello RS 44 MZ TC FS1 MB 420/1 - RSM 30?
These fit Riello RS 44 MZ TC FS1 MB 420/1 - RSM 30: Riello Air Damper 3003875. ↑
