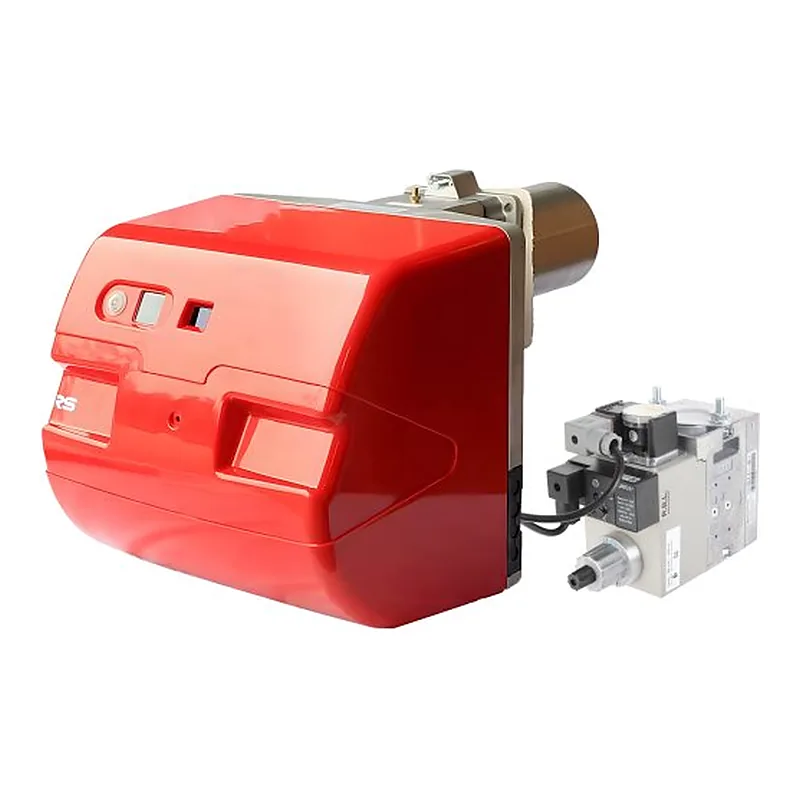

Riello RS 50/M MZ TL FS1 MB 410/1 - RSD 20 — spare parts
- Fuel
- Gas
- Output
- 80–630 kW
- Parts
- 5
- Factory code
- 3781623-3970532
- Series
- RS 50/M · 7
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RS 50/M MZ TL FS1 MB 410/1 - RSD 20 · 3
—on request
—on request
Boiler insulation for Riello RS 50/M MZ TL FS1 MB 410/1 - RSD 20 · 1
—on request
Burners for Riello RS 50/M MZ TL FS1 MB 410/1 - RSD 20 · 1
—on request
What is inside Riello RS 50/M MZ TL FS1 MB 410/1 - RSD 20
Components named in the manufacturer's documentation.
- Riello 826 T1RS 50/M MZ
- Riello 826 T80
Specifications
FuelGas
Output80–630 kW
Gas connectionRp 1"
Fan motor power650 W
Power consumption750 W
Net weight39 kg
Protection class (IP)IP44
Flame tube length351 mm
Flame tube diameter152 mm
Flame tube typestandard
Back pressure (combustion chamber)-1–9 mbar
Gas consumption8–63 m³/h
Gas train pressure17.5–60 mbar
Noise level83 dB
Operating temperature0–40 °C
Overall dimensions93.1 x 47.6 x 47.4 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesRiello RS 50/M · 7
Parts often differ between versions of one series: pick the version named on your rating plate.
- RS 50/M MZ
12 parts · 20180672 - RS 50 /M MZ TC
12 parts · 3781622 - RS 50/M MZ TC FS1 MB 410/1 - RSD 20
3 parts · 3781622-3970532 - RS 50/M MZ TC FS1 MB 415/1 - RT 30
3 parts · 3781622-3970180 - RS 50/M MZ TL FS1
12 parts · 3781623 - RS 50/M MZ TL FS1 MB 410/1 - RSD 20
5 parts · 3781623-3970532 - RS 50/M MZ TL FS1 MB 415/1 - RT 30
5 parts · 3781623-3970180
Questions about Riello RS 50/M MZ TL FS1 MB 410/1 - RSD 20 parts
Which burner components fit Riello RS 50/M MZ TL FS1 MB 410/1 - RSD 20?
These fit Riello RS 50/M MZ TL FS1 MB 410/1 - RSD 20: Riello Gas Manifold 3970180; Riello Gas Manifold 3970198; Riello Gas Manifold MB 410/1 3970532. ↑
Which boiler insulation fit Riello RS 50/M MZ TL FS1 MB 410/1 - RSD 20?
These fit Riello RS 50/M MZ TL FS1 MB 410/1 - RSD 20: Riello Soundproofing Material 3003830. ↑
Which burners fit Riello RS 50/M MZ TL FS1 MB 410/1 - RSD 20?
These fit Riello RS 50/M MZ TL FS1 MB 410/1 - RSD 20: Riello Burner Housing 3014051. ↑
