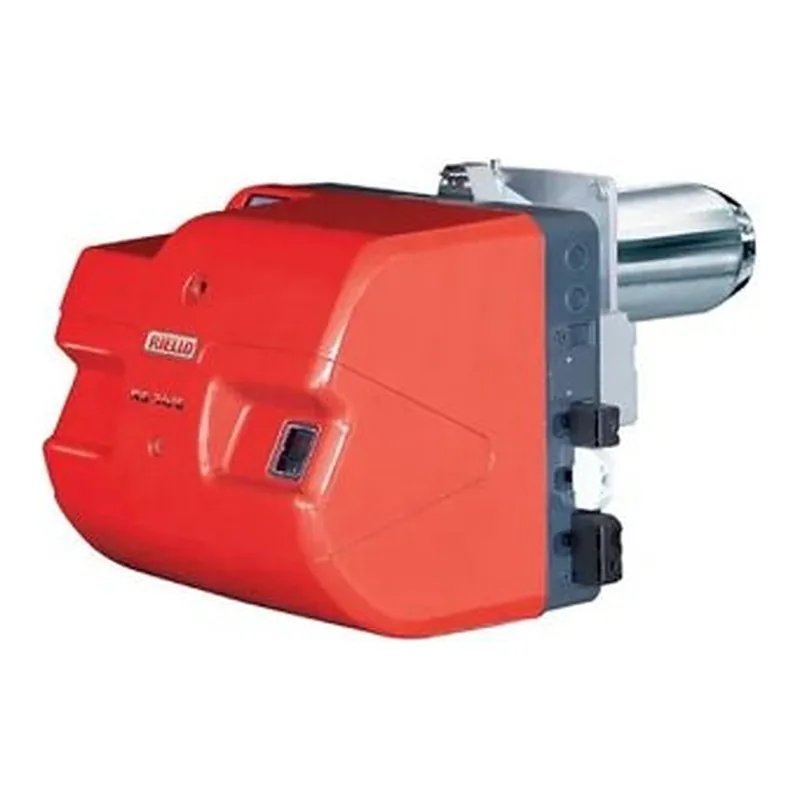

Riello RS 55/E BLU TC FS1 — spare parts
- Fuel
- Gas
- Output
- 100–680 kW
- Parts
- 12
- Factory code
- 20038491
- Series
- RS 55/E · 2
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner pipes, flanges & connections for Riello RS 55/E BLU TC FS1 · 2
—on request
Ionization & ignition electrodes for Riello RS 55/E BLU TC FS1 · 2
—on request
—on request
Actuators for Riello RS 55/E BLU TC FS1 · 1
—on request
Boiler filters, gaskets & seals for Riello RS 55/E BLU TC FS1 · 1
—on request
Boiler pipes, flanges & connections for Riello RS 55/E BLU TC FS1 · 1
—on request
Burner components for Riello RS 55/E BLU TC FS1 · 1
—on request
Burners for Riello RS 55/E BLU TC FS1 · 1
—on request
Control devices for Riello RS 55/E BLU TC FS1 · 1
—on request
Control panels and displays for Riello RS 55/E BLU TC FS1 · 1
—on request
Ignition cables and connectors for Riello RS 55/E BLU TC FS1 · 1
—on request
What is inside Riello RS 55/E BLU TC FS1
Components named in the manufacturer's documentation.
- REC 27.100A2
- SQM33....
Specifications
FuelGas
Output100–680 kW
Fan motor power1100 W
Power consumption1500 W
Net weight42 kg
Protection class (IP)IP40
Flame tube length255 mm
Flame tube diameter189 mm
Flame tube typestandard
Back pressure (combustion chamber)-1–8.5 mbar
Gas consumption10–68 m³/h
Noise level64 dB
Operating temperature0–40 °C
Overall dimensions89.5 x 53.3 x 49 cm
Delivery scopewith combustion head
Additional featurescontinuous ventilation
Other versions of this seriesRiello RS 55/E · 2
Parts often differ between versions of one series: pick the version named on your rating plate.
- RS 55/E BLU TC FS1
12 parts · 20038491 - RS 55/E BLU TC FS1 MB 412/1 - RT 52
8 parts · 20038491-3970256-3000843
Questions about Riello RS 55/E BLU TC FS1 parts
Which burner pipes, flanges & connections fit Riello RS 55/E BLU TC FS1?
These fit Riello RS 55/E BLU TC FS1: Riello Gas Connection Flange 3006803; Riello External Gas Pipe 3012041. ↑
Which ionization & ignition electrodes fit Riello RS 55/E BLU TC FS1?
These fit Riello RS 55/E BLU TC FS1: Riello Ignition Electrode 3012017; Riello Ionization Electrode 3012176. ↑
Which actuators fit Riello RS 55/E BLU TC FS1?
These fit Riello RS 55/E BLU TC FS1: Riello Actuator Clutch 3013938. ↑
Which boiler filters, gaskets & seals fit Riello RS 55/E BLU TC FS1?
These fit Riello RS 55/E BLU TC FS1: Riello Insulation Gasket 3012735. ↑
Which boiler pipes, flanges & connections fit Riello RS 55/E BLU TC FS1?
These fit Riello RS 55/E BLU TC FS1: Riello Flange Gasket 3003991. ↑
Which burner components fit Riello RS 55/E BLU TC FS1?
These fit Riello RS 55/E BLU TC FS1: Riello Gas Pressure Measurement Nipple 3012049. ↑
