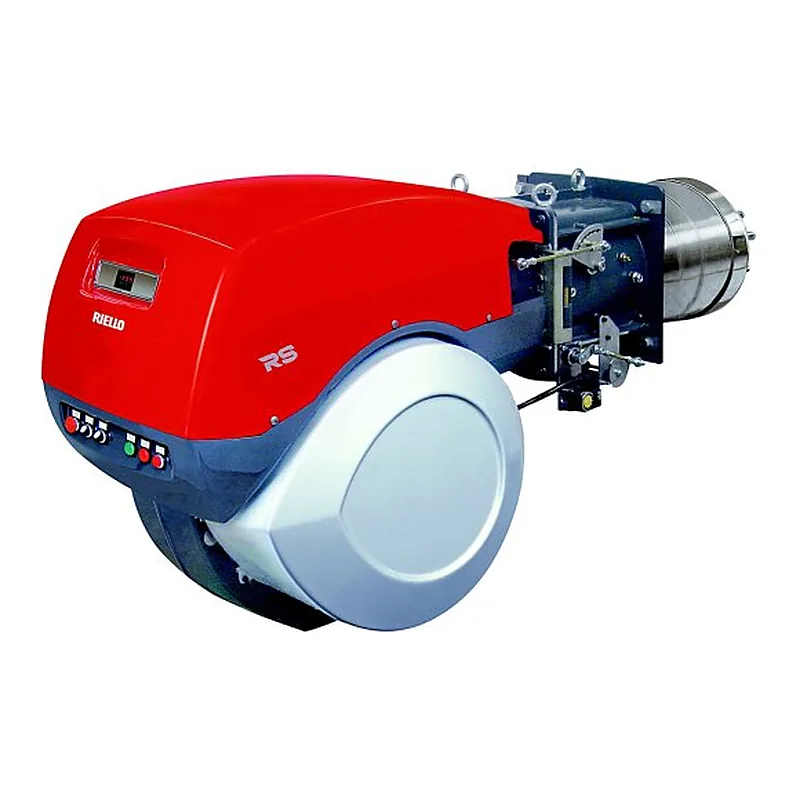

Riello RS 800/EV BLU TC FS1/FS2 — spare parts
- Fuel
- Gas
- Output
- 1200–8100 kW
- Parts
- 8
- Factory code
- 3911090
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RS 800/EV BLU TC FS1/FS2 · 3
—on request
—on request
Burner pipes, flanges & connections for Riello RS 800/EV BLU TC FS1/FS2 · 3
—on request
—on request
—on request
Burners for Riello RS 800/EV BLU TC FS1/FS2 · 1
—on request
Pressure switches for Riello RS 800/EV BLU TC FS1/FS2 · 1
—on request
What is inside Riello RS 800/EV BLU TC FS1/FS2
Components named in the manufacturer's documentation.
- Air pressure switch
- LMV52
- Maximum gas pressure switch
- Minimum gas pressure switch
- PVP pressure switch kit
- Probe-electrode
- SQM48.4
Specifications
FuelGas
Output1200–8100 kW
Fan motor power21000 W
Power consumption24000 W
Net weight300 kg
Protection class (IP)IP54
Flame tube length582 mm
Flame tube diameter363 mm
Flame tube typeshort
Back pressure (combustion chamber)0–25 mbar
Gas consumption120–810 m³/h
Gas train pressure27–111 mbar
Noise level82 dB
Operating temperature0–60 °C
Overall dimensions190.7 x 94 x 86.7 cm
Delivery scopewith combustion head
Additional featurescontinuous ventilation
Questions about Riello RS 800/EV BLU TC FS1/FS2 parts
Which burner components fit Riello RS 800/EV BLU TC FS1/FS2?
These fit Riello RS 800/EV BLU TC FS1/FS2: Riello Continuous Ventilation Block 3010094; Riello Gas Manifold 3970222; Riello Gas Manifold 3970223. ↑
Which burner pipes, flanges & connections fit Riello RS 800/EV BLU TC FS1/FS2?
These fit Riello RS 800/EV BLU TC FS1/FS2: Riello Gas Adapter 153 BR AK 3000832; Riello Adapter RS 300/ 800 153 BR AK 3010221; Riello Adapter RS 300-800 DN80/80 153 BR AK 3010222. ↑
Which burners fit Riello RS 800/EV BLU TC FS1/FS2?
These fit Riello RS 800/EV BLU TC FS1/FS2: Riello Burner Housing 3013310. ↑
Which pressure switches fit Riello RS 800/EV BLU TC FS1/FS2?
These fit Riello RS 800/EV BLU TC FS1/FS2: Riello Pressure Switch Cable 3013300. ↑
