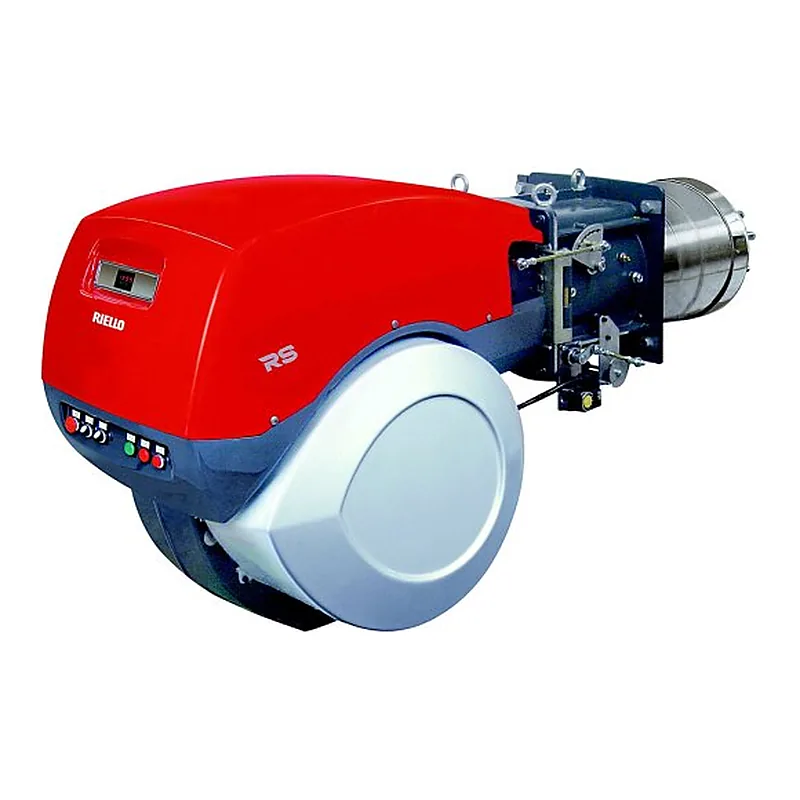

Riello RS 800/M BLU TC FS1 — spare parts
- Fuel
- Gas
- Output
- 1200–8100 kW
- Parts
- 12
- Factory code
- 3911010
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RS 800/M BLU TC FS1 · 6
—on request
—on request
—on request
—on request
—on request
Pressure switches for Riello RS 800/M BLU TC FS1 · 3
—on request
—on request
—on request
Control devices for Riello RS 800/M BLU TC FS1 · 2
—on request
—on request
Sensors and switches for Riello RS 800/M BLU TC FS1 · 1
—on request
What is inside Riello RS 800/M BLU TC FS1
Components named in the manufacturer's documentation.
- 856 T
- 856 T80
- 859 T
- 860 T
- 887 T
- 887 T80
- RS 300/M BLU
- RS 400/M BLU
- RS 500/M BLU
- RS 500/M BLU T80
- RS 800/M BLU
- RS 800/M BLU T80
- potentiometer
- pressure switch
- sensor
Specifications
FuelGas
Output1200–8100 kW
Fan motor power22000 W
Power consumption24000 W
Net weight300 kg
Protection class (IP)IP54
Flame tube length582 mm
Flame tube diameter363 mm
Flame tube typeshort
Back pressure (combustion chamber)0–25 mbar
Gas consumption120–810 m³/h
Gas train pressure15.7–62.3 mbar
Noise level82 dB
Operating temperature0–60 °C
Overall dimensions190.7 x 94 x 86.7 cm
Delivery scopewith combustion head
Questions about Riello RS 800/M BLU TC FS1 parts
Which burner components fit Riello RS 800/M BLU TC FS1?
These fit Riello RS 800/M BLU TC FS1: Riello Gas Pressure Measurement Nipple 3005447; Riello Bearing 3012795; Riello Diffuser 3013955; Riello Gas Manifold 3970222; Riello Gas Manifold 3970223; Riello Gas Manifold 3970226. ↑
Which pressure switches fit Riello RS 800/M BLU TC FS1?
These fit Riello RS 800/M BLU TC FS1: Riello Pressure switch 3012197; Riello Pressure Switch Cable 3013300; Riello Pressure switch 3013449. ↑
Which control devices fit Riello RS 800/M BLU TC FS1?
These fit Riello RS 800/M BLU TC FS1: Riello Time Relay 3012785; Riello Fuel-Air Ratio Regulator 3013648. ↑
Which sensors and switches fit Riello RS 800/M BLU TC FS1?
These fit Riello RS 800/M BLU TC FS1: Riello Thermal Relay 3014108. ↑
