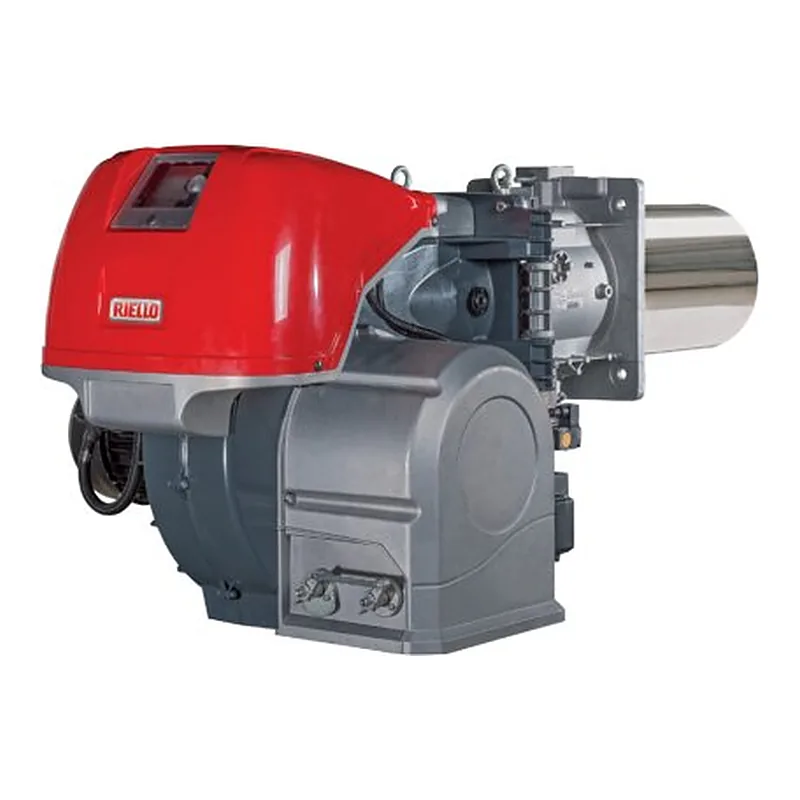

Riello RS 810/EV O2 BLU TC FS1/FS2 — spare parts
- Fuel
- Gas
- Output
- 1200–8000 kW
- Parts
- 2
- Factory code
- 20160293
- Series
- RS 810/EV · 2
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Riello RS 810/EV O2 BLU TC FS1/FS2 · 1
Sensor components for Riello RS 810/EV O2 BLU TC FS1/FS2 · 1
—on request
What is inside Riello RS 810/EV O2 BLU TC FS1/FS2
Components named in the manufacturer's documentation.
- Actuator
- Air pressure switch
- LMV52...
- Maximum gas pressure switch
- Minimum gas pressure switch
- PVP pressure switch kit
- QGO20
Specifications
FuelGas
Output1200–8000 kW
Supply voltage380 V
Power consumption24500 W
Net weight300 kg
Flame tube length558 mm
Flame tube diameter363 mm
Flame tube typestandard
Back pressure (combustion chamber)0–25 mbar
Gas consumption120–801 m³/h
Overall dimensions199.8 x 105 x 76.65 cm
Delivery scopewith combustion head
Additional featurescontinuous ventilation
Other versions of this seriesRiello RS 810/EV · 2
Parts often differ between versions of one series: pick the version named on your rating plate.
- RS 810/EV BLU TC FS1/FS2
2 parts · 20160292 - RS 810/EV O2 BLU TC FS1/FS2
2 parts · 20160293
Questions about Riello RS 810/EV O2 BLU TC FS1/FS2 parts
Which burner components fit Riello RS 810/EV O2 BLU TC FS1/FS2?
These fit Riello RS 810/EV O2 BLU TC FS1/FS2: Riello Continuous Ventilation Block 3010094. ↑
Which sensor components fit Riello RS 810/EV O2 BLU TC FS1/FS2?
These fit Riello RS 810/EV O2 BLU TC FS1/FS2: Riello O2 Probe Kit 153 BR AK 20045187. ↑
