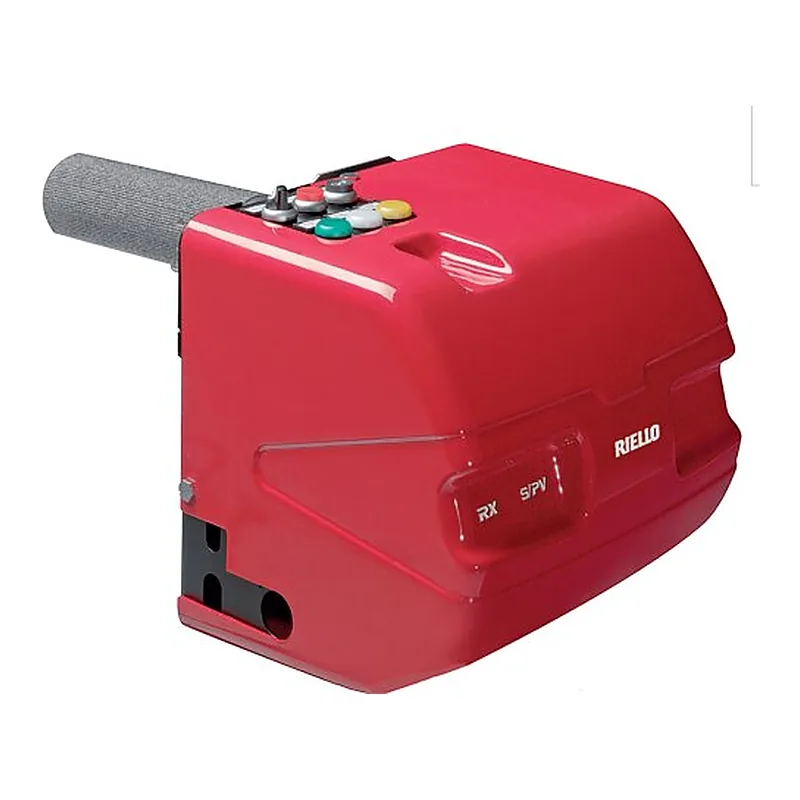

Riello RX 120 S/PV — gas burner, photo 1

Riello RX 120 S/PV — spare parts

Fuel
Gas
Output
37–122 kW
Parts
11
Factory code
20140258

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Burner components for Riello RX 120 S/PV · 4

Boiler pipes, flanges & connections for Riello RX 120 S/PV · 3

Boiler filters, gaskets & seals for Riello RX 120 S/PV · 2

Fans and flue gas exhausters for Riello RX 120 S/PV · 1

Plugs and connectors for Riello RX 120 S/PV · 1

What is inside Riello RX 120 S/PV

Components named in the manufacturer's documentation.

  • CM222

Specifications

FuelGas
Output37–122 kW
Supply voltage220 V
Net weight27 kg
Protection class (IP)IP40
Flame tube length392 mm
Flame tube diameter84 mm
Flame tube typestandard
Gas consumption2.65–12.7 m³/h
Operating temperature0–40 °C
Overall dimensions64.6 x 34.2 x 31.9 cm
Delivery scopewith combustion head, without gas train

Other versions of this seriesRiello RX 120 · 2

Parts often differ between versions of one series: pick the version named on your rating plate.

Questions about Riello RX 120 S/PV parts

Which burner components fit Riello RX 120 S/PV?

These fit Riello RX 120 S/PV: Riello Manifold Group 20016894; Riello Diaphragm 20016905; Riello Burner components 20016916; Riello Gas Pressure Measurement Nipple 3005447. ↑

Which boiler pipes, flanges & connections fit Riello RX 120 S/PV?

These fit Riello RX 120 S/PV: Riello Flange 20016891; Riello Connection 3020478; Riello Connection 3020479. ↑

Which boiler filters, gaskets & seals fit Riello RX 120 S/PV?

These fit Riello RX 120 S/PV: Riello Gasket 3020275; Riello Gasket 3020276. ↑

Which fans and flue gas exhausters fit Riello RX 120 S/PV?

These fit Riello RX 120 S/PV: Riello Ventilating Group 3020277. ↑

Which plugs and connectors fit Riello RX 120 S/PV?

These fit Riello RX 120 S/PV: Riello Connector 3020458. ↑
