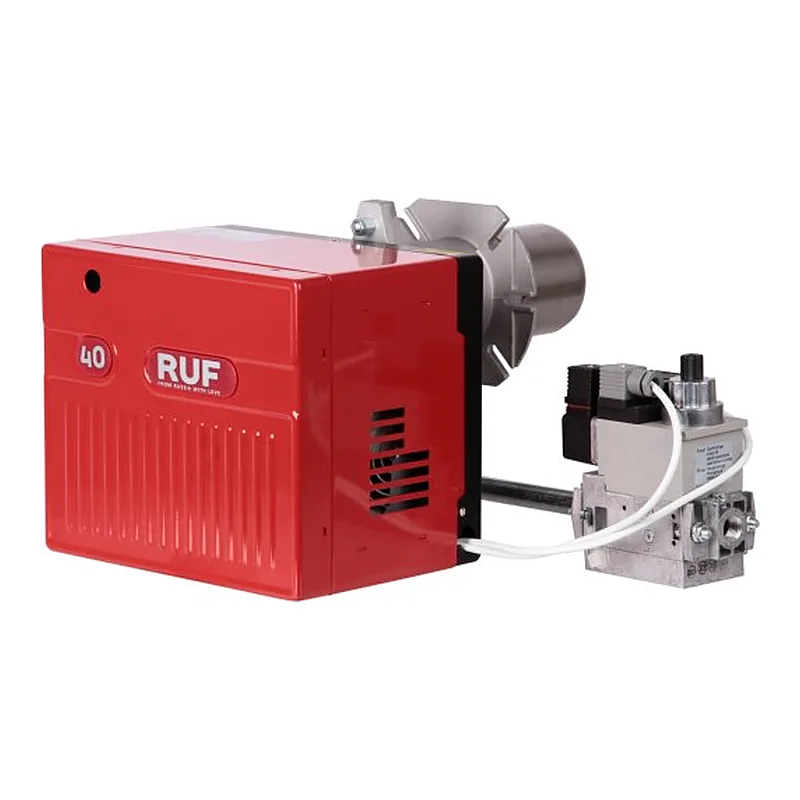

RUF 40 FS10 TL MB-DLE405 B01 S20 — spare parts
- Fuel
- Gas
- Output
- 42–116 kW
- Parts
- 11
- Factory code
- RU3756435TL-RU3970530
- Series
- 40 FS10 · 4
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Ignition cables and connectors for RUF 40 FS10 TL MB-DLE405 B01 S20 · 2
—on request
Ionization & ignition electrodes for RUF 40 FS10 TL MB-DLE405 B01 S20 · 2
—on request
—on request
Boiler pipes, flanges & connections for RUF 40 FS10 TL MB-DLE405 B01 S20 · 1
—on request
Burner components for RUF 40 FS10 TL MB-DLE405 B01 S20 · 1
—on request
Control devices for RUF 40 FS10 TL MB-DLE405 B01 S20 · 1
—on request
Ignition transformers for RUF 40 FS10 TL MB-DLE405 B01 S20 · 1
—on request
Impellers for RUF 40 FS10 TL MB-DLE405 B01 S20 · 1
—on request
Motors for RUF 40 FS10 TL MB-DLE405 B01 S20 · 1
—on request
Pressure switches for RUF 40 FS10 TL MB-DLE405 B01 S20 · 1
—on request
Specifications
FuelGas
Output42–116 kW
Firing stagesSingle-stage
Fan motor power150 W
Supply voltage220 V
Protection class (IP)IP20
Flame tube length120 mm
Flame tube diameter105 mm
Flame tube typeextended
Back pressure (combustion chamber)0–1.6 mbar
Gas consumption11.6–52 m³/h
Gas train pressure2.3–11.9 mbar
Delivery scopewith combustion head, with gas train
Other versions of this seriesRUF 40 FS10 · 4
Parts often differ between versions of one series: pick the version named on your rating plate.
- 40 FS10 TC
11 parts · RU3756435 - 40 FS10 TC MB-DLE405 B01 S20
11 parts · RU3756435-RU3970530 - 40 FS10 TL
11 parts · RU3756435TL - 40 FS10 TL MB-DLE405 B01 S20
11 parts · RU3756435TL-RU3970530
Questions about RUF 40 FS10 TL MB-DLE405 B01 S20 parts
Which ignition cables and connectors fit RUF 40 FS10 TL MB-DLE405 B01 S20?
These fit RUF 40 FS10 TL MB-DLE405 B01 S20: RUF Ignition Electrode Cable RU3002689; RUF Ionization Electrode Cable RU3008453. ↑
Which ionization & ignition electrodes fit RUF 40 FS10 TL MB-DLE405 B01 S20?
These fit RUF 40 FS10 TL MB-DLE405 B01 S20: RUF Ionization Electrode RU3006708; RUF Ignition Electrode RU3006943. ↑
Which boiler pipes, flanges & connections fit RUF 40 FS10 TL MB-DLE405 B01 S20?
These fit RUF 40 FS10 TL MB-DLE405 B01 S20: RUF Flange Gasket RU3005795. ↑
Which burner components fit RUF 40 FS10 TL MB-DLE405 B01 S20?
These fit RUF 40 FS10 TL MB-DLE405 B01 S20: RUF Gas Ramp RU3970530. ↑
Which control devices fit RUF 40 FS10 TL MB-DLE405 B01 S20?
These fit RUF 40 FS10 TL MB-DLE405 B01 S20: Simson Furnace Automation RMG88.62C2 RU3013073. ↑
Which ignition transformers fit RUF 40 FS10 TL MB-DLE405 B01 S20?
These fit RUF 40 FS10 TL MB-DLE405 B01 S20: Simson Ignition transformer RU3012159. ↑
