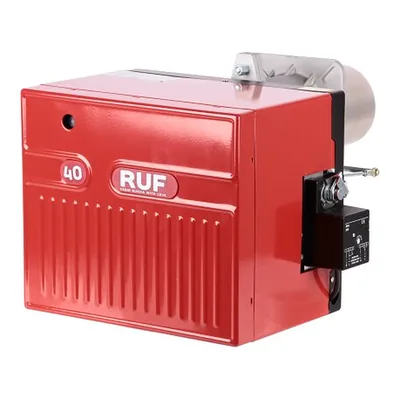

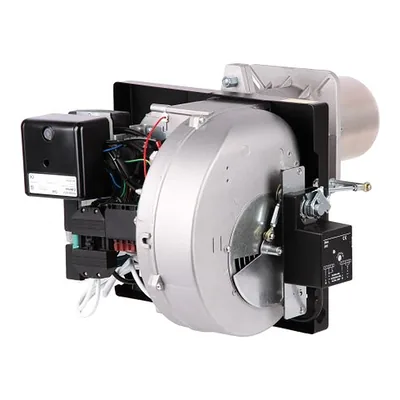

RUF 40 GS20D TC — spare parts
- Fuel
- Gas
- Output
- 43–194 kW
- Parts
- 11
- Factory code
- RU20190875
- Series
- 40 GS20D · 4

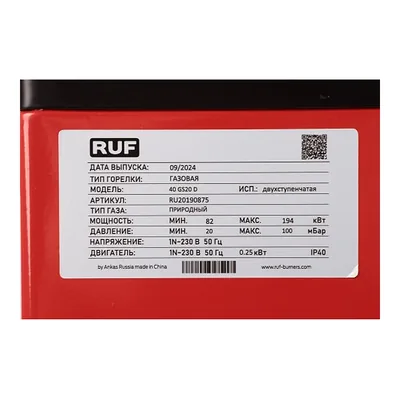

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Ignition cables and connectors for RUF 40 GS20D TC · 2
—on request
Ionization & ignition electrodes for RUF 40 GS20D TC · 2
—on request
—on request
Boiler pipes, flanges & connections for RUF 40 GS20D TC · 1
—on request
Burner components for RUF 40 GS20D TC · 1
—on request
Control devices for RUF 40 GS20D TC · 1
—on request
Ignition transformers for RUF 40 GS20D TC · 1
—on request
Impellers for RUF 40 GS20D TC · 1
—on request
Motors for RUF 40 GS20D TC · 1
—on request
Pressure switches for RUF 40 GS20D TC · 1
—on request
Specifications
FuelGas
Output43–194 kW
Firing stagesTwo-stage
Fan motor power250 W
Supply voltage220 V
Net weight22 kg
Protection class (IP)IP40
Flame tube length120 mm
Flame tube diameter125 mm
Flame tube typestandard
Back pressure (combustion chamber)0–5.1 mbar
Gas consumption4.3–19.4 m³/h
Delivery scopewith combustion head
Other versions of this seriesRUF 40 GS20D · 4
Parts often differ between versions of one series: pick the version named on your rating plate.
- 40 GS20D TC
11 parts · RU20190875 - 40 GS20D TC MB-DLE 407
11 parts · RU20190875-RU3970531 - 40 GS20D TL
11 parts · RU20190875TL - 40 GS20D TL MB-DLE 407
11 parts · RU20190875TL-RU3970531
Questions about RUF 40 GS20D TC parts
Which ignition cables and connectors fit RUF 40 GS20D TC?
These fit RUF 40 GS20D TC: RUF Ignition Electrode Cable RU3002689; RUF Ionization Electrode Cable RU3008453. ↑
Which ionization & ignition electrodes fit RUF 40 GS20D TC?
These fit RUF 40 GS20D TC: RUF Ignition Electrode RU3006706; RUF Ionization Electrode RU3006709. ↑
Which boiler pipes, flanges & connections fit RUF 40 GS20D TC?
These fit RUF 40 GS20D TC: RUF Flange Gasket RU3006710. ↑
Which burner components fit RUF 40 GS20D TC?
These fit RUF 40 GS20D TC: RUF Gas Ramp RU3970531. ↑
Which control devices fit RUF 40 GS20D TC?
These fit RUF 40 GS20D TC: Simson Furnace Automation RMG88.62C2 RU3013073. ↑
Which ignition transformers fit RUF 40 GS20D TC?
These fit RUF 40 GS20D TC: Simson Ignition transformer RU3012159. ↑
