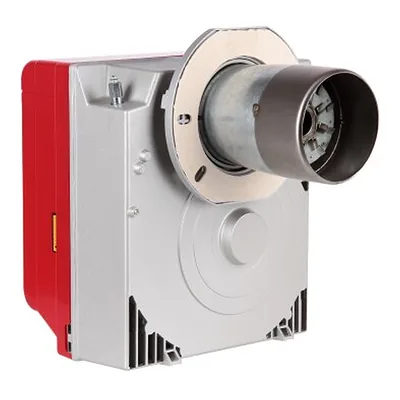

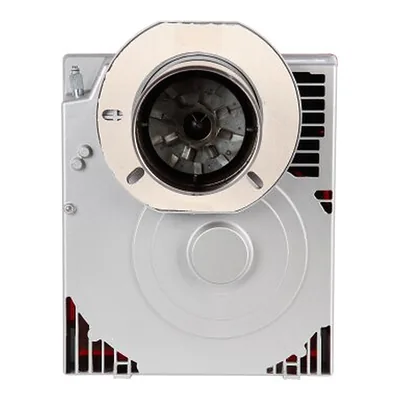

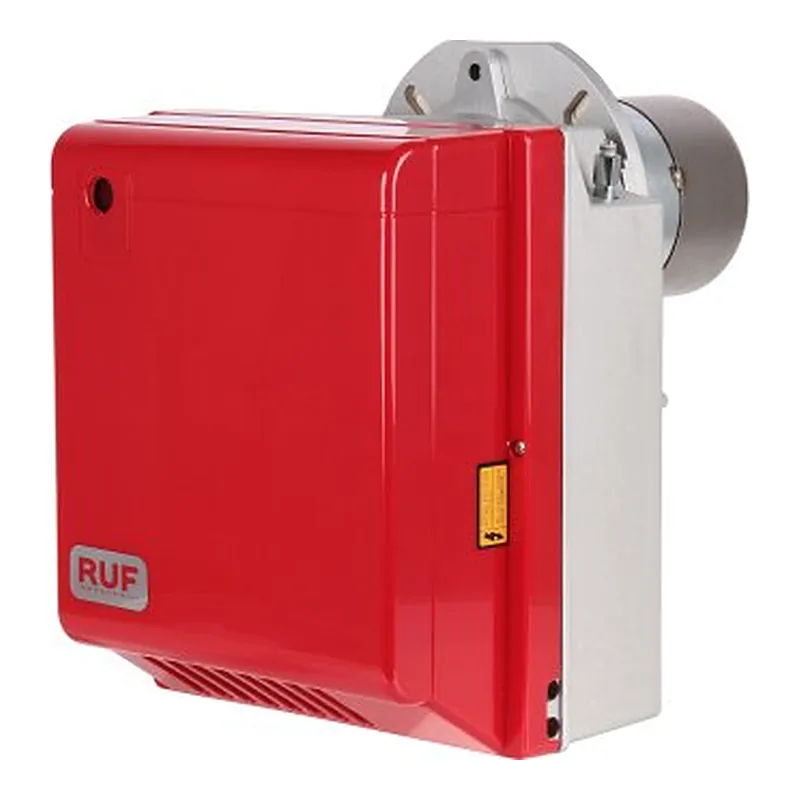

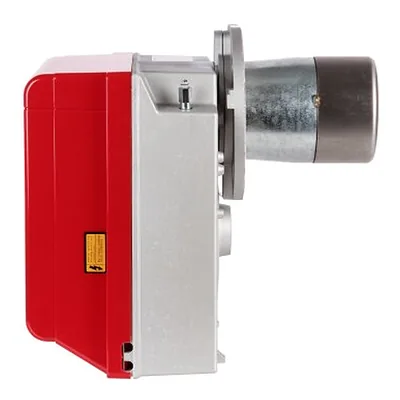

RUF RG5S TC — spare parts
- Fuel
- Oil
- Output
- 160–309.5 kW
- Parts
- 8
- Factory code
- RU3739950
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Boiler pipes, flanges & connections for RUF RG5S TC · 1
Control devices for RUF RG5S TC · 1
—on request
Flame sensors for RUF RG5S TC · 1
—on request
Gas valves & coils for RUF RG5S TC · 1
—on request
Impellers for RUF RG5S TC · 1
—on request
Ionization & ignition electrodes for RUF RG5S TC · 1
—on request
Motors for RUF RG5S TC · 1
—on request
Oil filters, coils, tubes & hoses for RUF RG5S TC · 1
—on request
What is inside RUF RG5S TC
Components named in the manufacturer's documentation.
- Control-box
- Electrodes
- Ignition transformer
- Oil pump
Specifications
FuelOil
Output160–309.5 kW
Firing stagesSingle-stage
Fan motor power75 W
Supply voltage220 V
Net weight18 kg
Protection class (IP)IP40
Flame tube length155 mm
Flame tube diameter125 mm
Flame tube typestandard
Back pressure (combustion chamber)0–3.7 mbar
Overall dimensions40.2 x 30 x 34.5 cm
Delivery scopewith combustion head
Questions about RUF RG5S TC parts
Which boiler pipes, flanges & connections fit RUF RG5S TC?
These fit RUF RG5S TC: RUF Flange Gasket RU3005813. ↑
Which control devices fit RUF RG5S TC?
These fit RUF RG5S TC: Riello Furnace Automation 555SE 3008850. ↑
Which flame sensors fit RUF RG5S TC?
These fit RUF RG5S TC: Simson Flame sensor RU20132566. ↑
Which gas valves & coils fit RUF RG5S TC?
These fit RUF RG5S TC: RUF Solenoid Coil RU3007565. ↑
Which impellers fit RUF RG5S TC?
These fit RUF RG5S TC: RUF Fan Impeller RU3008494. ↑
Which ionization & ignition electrodes fit RUF RG5S TC?
These fit RUF RG5S TC: RUF Ignition Electrode Block RU3007495. ↑
