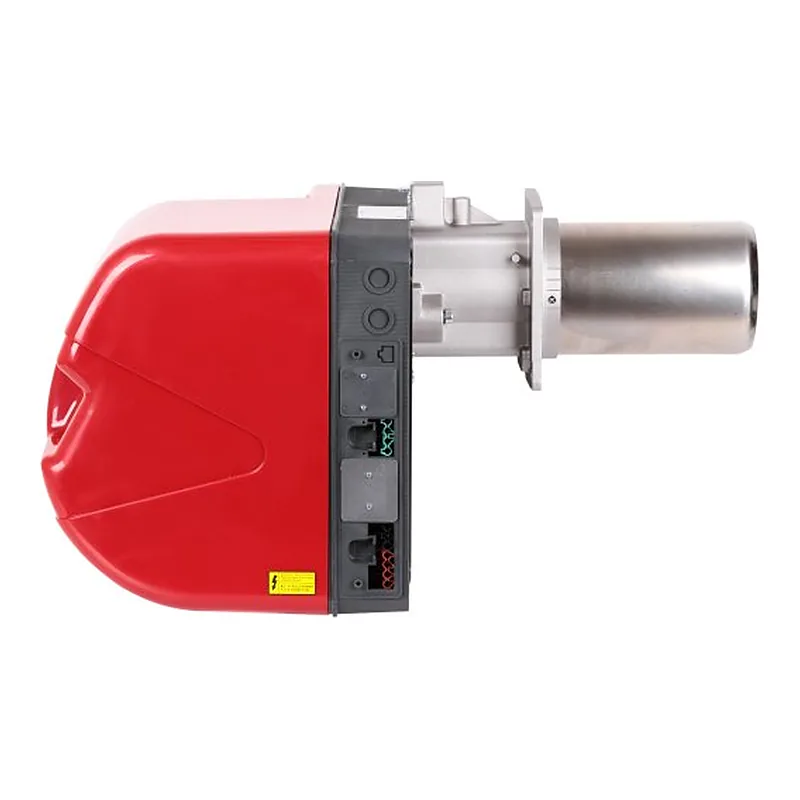

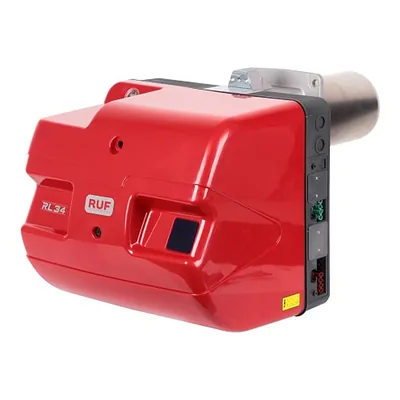

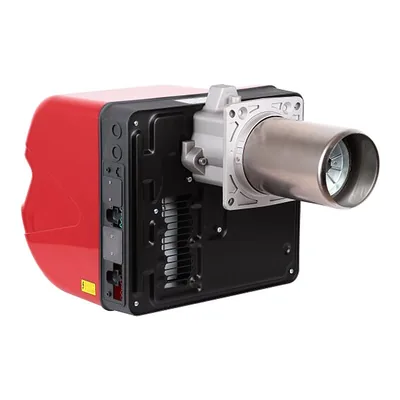

RUF RL 34 TC — spare parts
- Fuel
- Oil
- Output
- 97–395 kW
- Parts
- 11
- Factory code
- RU3470210
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for RUF RL 34 TC · 3
—on request
—on request
Actuators for RUF RL 34 TC · 1
—on request
Boiler pipes, flanges & connections for RUF RL 34 TC · 1
—on request
Control devices for RUF RL 34 TC · 1
—on request
Gas valves & coils for RUF RL 34 TC · 1
—on request
Ignition cables and connectors for RUF RL 34 TC · 1
—on request
Ignition transformers for RUF RL 34 TC · 1
—on request
Impellers for RUF RL 34 TC · 1
—on request

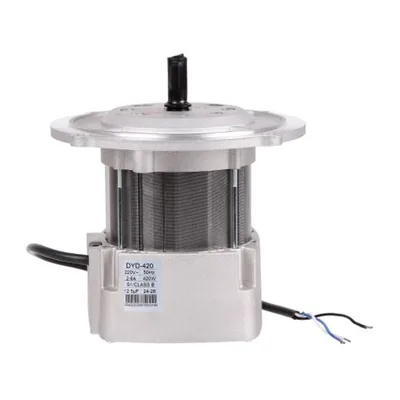

Motors for RUF RL 34 TC · 1
—on request
What is inside RUF RL 34 TC
Components named in the manufacturer's documentation.
- 972 T
- 973 T
- Flame sensor
- Hydraulic cylinder
- Ignition electrodes
- Ignition transformer
- Nozzles
- RL 34 MZ
- RL 44 MZ
- air gate valve
Specifications
FuelOil
Output97–395 kW
Firing stagesTwo-stage
Fan motor power300 W
Supply voltage220 V
Power consumption600 W
Net weight32 kg
Protection class (IP)IP40

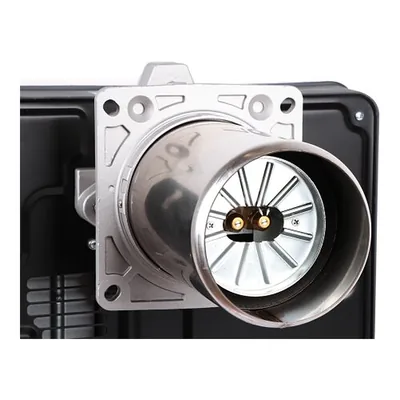

Flame tube length216 mm
Flame tube diameter140 mm
Flame tube typeshort
Back pressure (combustion chamber)-1–6 mbar
Noise level79 dB
Operating temperature0–40 °C
Overall dimensions72.4 x 44.2 x 42.2 cm
Delivery scopewith combustion head
Questions about RUF RL 34 TC parts
Which burner components fit RUF RL 34 TC?
These fit RUF RL 34 TC: RUF 2-stage distribution block RU3003831; RUF Coupling Assembly RU3013787; Riello Distribution block 3003831. ↑
Which actuators fit RUF RL 34 TC?
These fit RUF RL 34 TC: RUF Hydraulic Actuator RU3003825. ↑
Which boiler pipes, flanges & connections fit RUF RL 34 TC?
These fit RUF RL 34 TC: RUF Flange Gasket RU3003817. ↑
Which control devices fit RUF RL 34 TC?
These fit RUF RL 34 TC: Riello Furnace Automation 20183425. ↑
Which gas valves & coils fit RUF RL 34 TC?
These fit RUF RL 34 TC: RUF Solenoid Coil RU3003828. ↑
Which ignition cables and connectors fit RUF RL 34 TC?
These fit RUF RL 34 TC: RUF Ignition cable RU3013410. ↑
