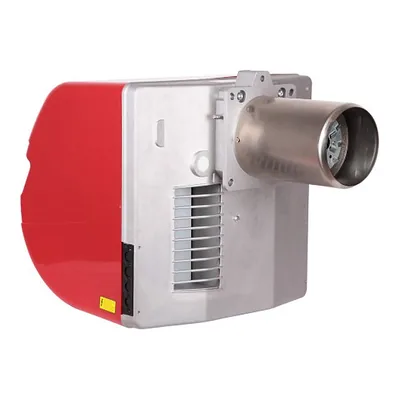

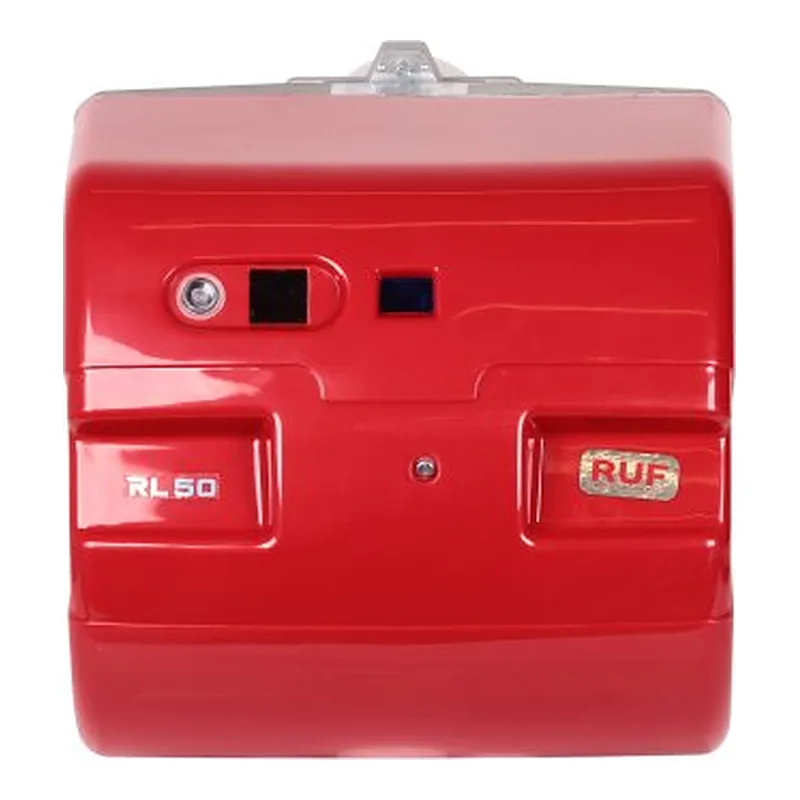

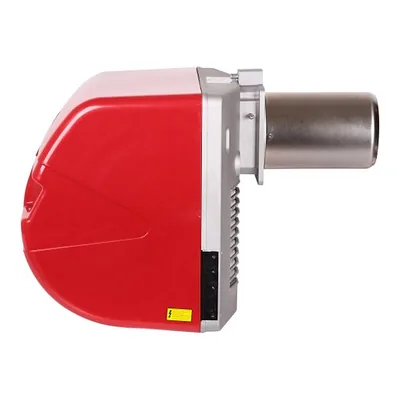

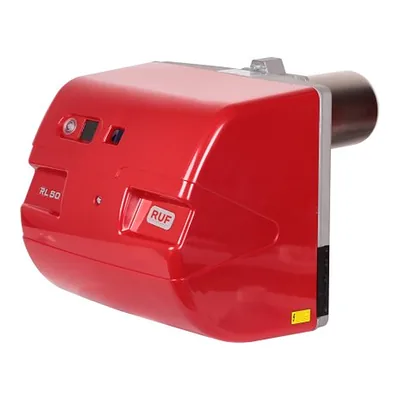

RUF RL 50 TC — spare parts
- Fuel
- Oil
- Output
- 148–593 kW
- Parts
- 9
- Factory code
- RU3474632
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for RUF RL 50 TC · 2
—on request
Impellers for RUF RL 50 TC · 2
—on request
—on request
Boiler pipes, flanges & connections for RUF RL 50 TC · 1
—on request
Ignition cables and connectors for RUF RL 50 TC · 1
—on request
Motors for RUF RL 50 TC · 1
—on request
Sensors and switches for RUF RL 50 TC · 1
—on request
Wiring, cables & electrical components for RUF RL 50 TC · 1
—on request
Specifications
FuelOil
Output148–593 kW
Firing stagesTwo-stage
Fan motor power650 W
Power consumption750 W
Net weight39 kg
Protection class (IP)IP44
Flame tube length216 mm
Flame tube diameter140 mm
Flame tube typeshort
Back pressure (combustion chamber)0–9 mbar
Noise level75 dB
Operating temperature0–60 °C
Overall dimensions68.4 x 47.6 x 47.4 cm
Delivery scopewith combustion head
Questions about RUF RL 50 TC parts
Which burner components fit RUF RL 50 TC?
These fit RUF RL 50 TC: Riello Cotter Pin 3003816; Riello Air Damper 3003824. ↑
Which impellers fit RUF RL 50 TC?
These fit RUF RL 50 TC: Riello Fan Impeller 3003760; Riello Fan Impeller 3003761. ↑
Which boiler pipes, flanges & connections fit RUF RL 50 TC?
These fit RUF RL 50 TC: RUF Flange Gasket RU3003817. ↑
Which ignition cables and connectors fit RUF RL 50 TC?
These fit RUF RL 50 TC: Riello Ignition Electrode Cable 3003794. ↑
Which motors fit RUF RL 50 TC?
These fit RUF RL 50 TC: Riello Motor RHE RH Y 110 3003771. ↑
Which sensors and switches fit RUF RL 50 TC?
These fit RUF RL 50 TC: Riello Key Switch 3003770. ↑
