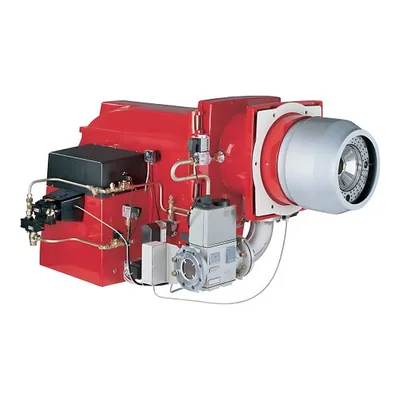

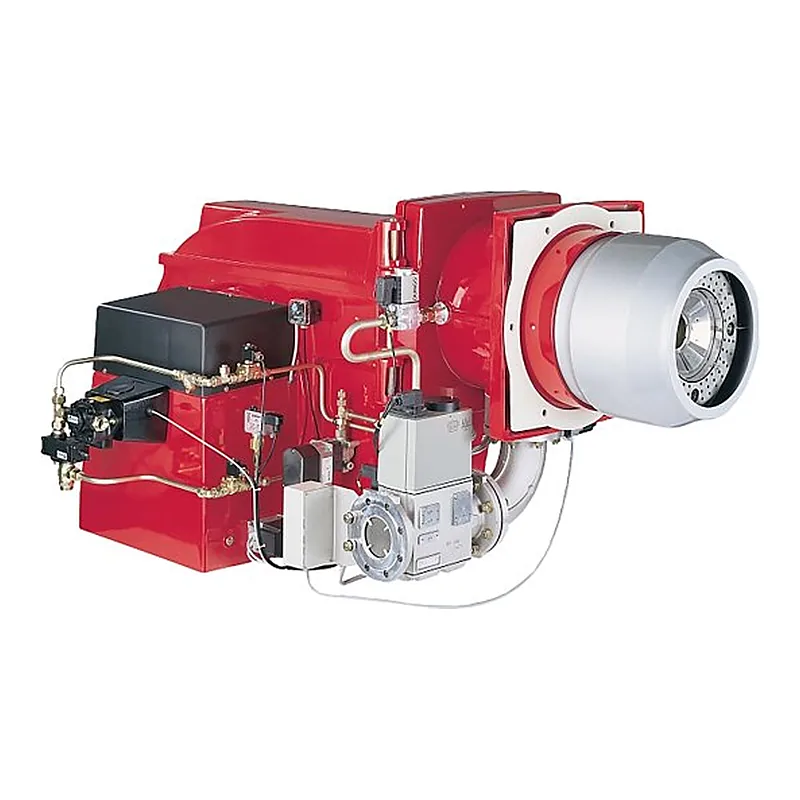

Weishaupt RGMS 70/3-A — spare parts
- Fuel
- Gas / oil
- Output
- 1000–10700 kW
- Parts
- 17
- Versions
- 5
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Gas valves for Weishaupt RGMS 70/3-A · 8
—on request
—on request
—on request
—on request
—on request
—on request
—on request
Burner components for Weishaupt RGMS 70/3-A · 3
—on request
—on request
—on request
Gas valves & coils for Weishaupt RGMS 70/3-A · 3
—on request
—on request
—on request
Motors for Weishaupt RGMS 70/3-A · 2
—on request
—on request
Burners for Weishaupt RGMS 70/3-A · 1
—on request
What is inside Weishaupt RGMS 70/3-A
Components named in the manufacturer's documentation.
- RGMS70/3-A ZM-NR (W-FM 200)
- W-FM 100/200
Specifications
FuelGas / oil
Output1000–10700 kW
Firing stagesTwo-stage progressive
Fan motor power24100 W
Supply voltage220 V / 380 V
Power consumption445–555 W
Length2127 mm
Width1326 mm
Height1075 mm
Net weight385 kg
Protection class (IP)IP54
Flame tube length467 mm
Flame tube diameter480 mm
Flame tube typestandard
Back pressure (combustion chamber)-2–24 mbar
Gas consumption96.6–1033.8 m³/h
Gas train pressure146–253 mbar
Noise level97 dB
Operating temperature-15–40 °C
Overall dimensions212.7 x 132.6 x 107.5 cm
Delivery scopewith combustion head
Versions
RGMS 70/3-A, DN 65, ZM-NR21971414
RGMS 70/3-A, DN 80, ZM-NR21971415
RGMS 70/3-A, DN 100, ZM-NR21971416
RGMS 70/3-A, DN 125, ZM-NR21971417
RGMS 70/3-A, DN 150, ZM-NR21971418
Questions about Weishaupt RGMS 70/3-A parts
Which gas valves fit Weishaupt RGMS 70/3-A?
These fit Weishaupt RGMS 70/3-A: Weishaupt Gas valve DMV 5080/12 15106526550; Weishaupt Gas valve DMV 5080/12 15106526600; Weishaupt Gas Solenoid Valve 15133326032; Weishaupt Gas valve DMV 5100/12 21706526110; Weishaupt Valve train DMV5100/12 27070526420; Weishaupt Gas valve DMV5065/12 29010026520; Weishaupt Double Gas Valve 625500; Weishaupt Double Gas Valve 625501. ↑
Which burner components fit Weishaupt RGMS 70/3-A?
These fit Weishaupt RGMS 70/3-A: Weishaupt Valve train group 21710026212; Weishaupt Valve train group 21710026222; Weishaupt Burner components DMV5065/12 25010026050. ↑
Which gas valves & coils fit Weishaupt RGMS 70/3-A?
These fit Weishaupt RGMS 70/3-A: Weishaupt Double Magnetic Valve 15133326542; Weishaupt Valve train DMV5065/12 21710026200; Weishaupt Magnetic Valve DMV 5100/12 625020. ↑
Which motors fit Weishaupt RGMS 70/3-A?
These fit Weishaupt RGMS 70/3-A: Weishaupt Electric Motor 21870507030; Weishaupt Electric Motor 21871507030. ↑
Which burners fit Weishaupt RGMS 70/3-A?
These fit Weishaupt RGMS 70/3-A: Weishaupt Burner DMV5080/12 25010026060. ↑
