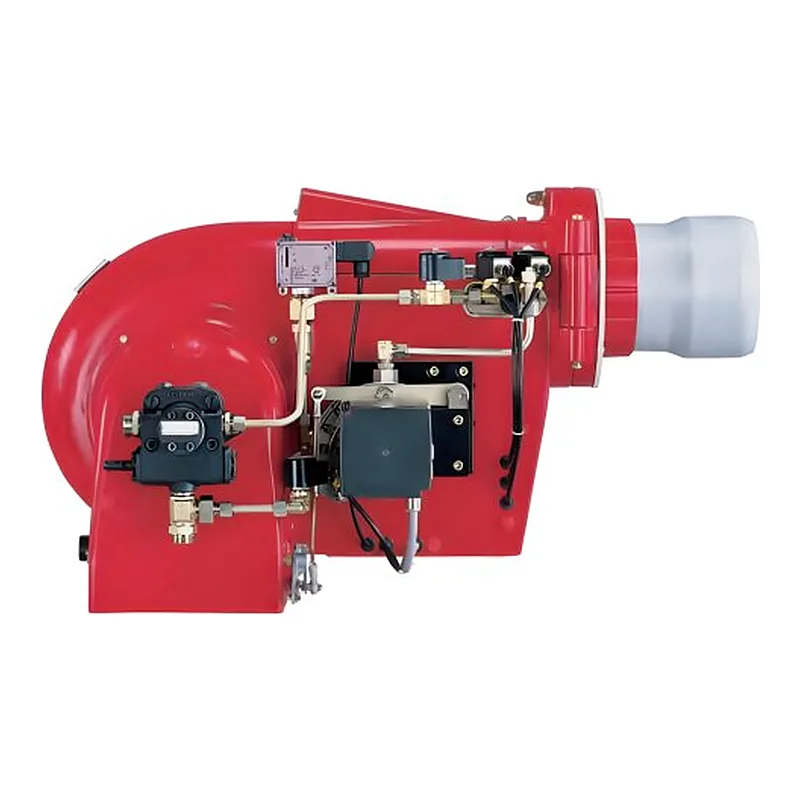

Weishaupt RL 3-A — oil burner, photo 1

Weishaupt RL 3-A — spare parts

Fuel: Oil
Output: 120–525 kW
Parts: 2
Versions: 3

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Burner components for Weishaupt RL 3-A · 1

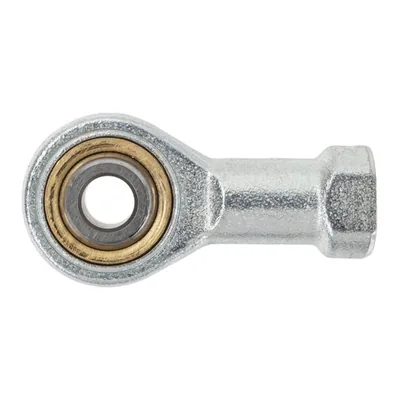

Weishaupt Hinge 499001

—on request

Burner pipes, flanges & connections for Weishaupt RL 3-A · 1

Weishaupt Coupling 15132715277

—on request

Specifications

FuelOil

Output120–525 kW

Gas connectionRp 3/8"

Firing stagesTwo-stage progressive

Fan motor power760 W

Length645 mm

Width612 mm

Height435 mm

Net weight47 kg

Flame tube length132 mm

Flame tube diameter160 mm

Flame tube typestandard

Back pressure (combustion chamber)-2–7 mbar

Overall dimensions64.5 x 61.2 x 43.5 cm

Delivery scopewith combustion head

Versions

RL 3-A, ZME71137302

RL 3-A, ZMD71137402

RL 3-A, ZMD71137410

Questions about Weishaupt RL 3-A parts

Which burner components fit Weishaupt RL 3-A?

These fit Weishaupt RL 3-A: Weishaupt Hinge 499001. ↑

Which burner pipes, flanges & connections fit Weishaupt RL 3-A?

These fit Weishaupt RL 3-A: Weishaupt Coupling 15132715277. ↑
