Weishaupt WGL 40/1-A — spare parts
- Fuel
- Gas / oil
- Output
- 125–550 kW
- Parts
- 13
- Versions
- 6
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Gas valves for Weishaupt WGL 40/1-A · 3
—on request
—on request
Pressure switches for Weishaupt WGL 40/1-A · 3
—on request
—on request
—on request
Burner components for Weishaupt WGL 40/1-A · 2
—on request
—on request
Flame sensors for Weishaupt WGL 40/1-A · 2
—on request
—on request
Wiring, cables & electrical components for Weishaupt WGL 40/1-A · 2
—on request
—on request
Burner pipes, flanges & connections for Weishaupt WGL 40/1-A · 1
—on request
What is inside Weishaupt WGL 40/1-A
Components named in the manufacturer's documentation.

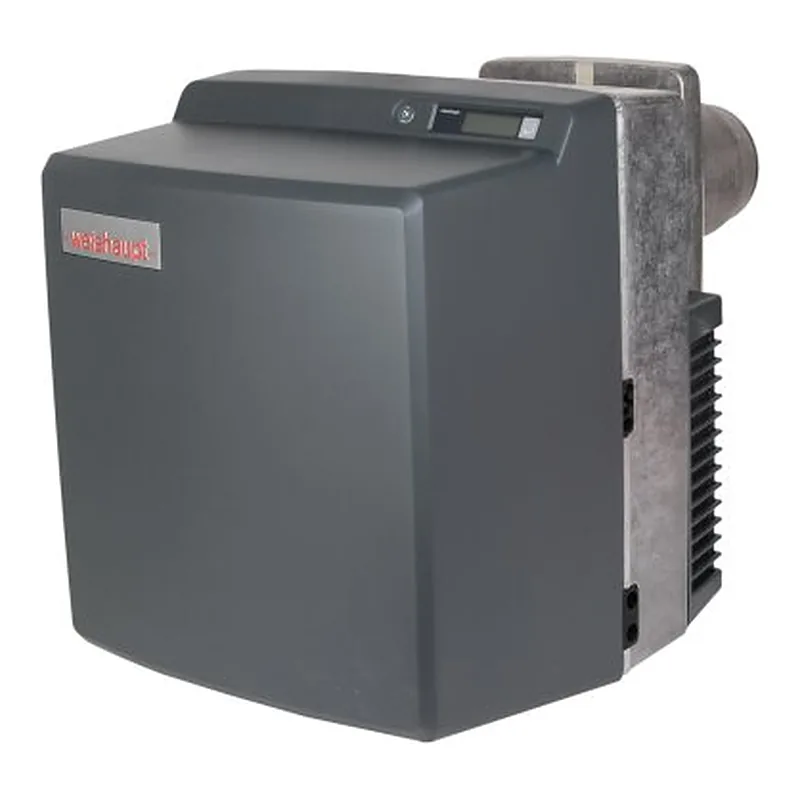

- Max Weishaupt WGL 40/1-A
Specifications
FuelGas / oil
Output125–550 kW
Firing stagesTwo-stage progressive
Supply voltage220 V
Length655 mm
Width450 mm
Height400 mm
Net weight35 kg
Flame tube length155 mm
Flame tube diameter151 mm
Flame tube typestandard
Back pressure (combustion chamber)-2–7 mbar
Gas consumption30–221 m³/h
Gas train pressure14–29 mbar
Operating temperature-15–40 °C
Overall dimensions65.5 x 45 x 40 cm
Delivery scopewith combustion head
Versions
WGL 40/1-A, 3/4, ZM23541621
WGL 40/1-A, 1, ZM23541631
WGL 40/1-A, 1 1/2, ZM23541641
WGL 40/1-A, 2, ZM23541661
WGL 40/1-A, DN 65, ZM23542631
WGL 40/1-A, DN 80, ZM23542641
Questions about Weishaupt WGL 40/1-A parts
Which gas valves fit Weishaupt WGL 40/1-A?
These fit Weishaupt WGL 40/1-A: Weishaupt Gas valve W-MF 512 230 B R 1 1/2 15108026022; Weishaupt Gas Solenoid Valve 15133326032; Weishaupt Gas Solenoid Valve 625007. ↑
Which pressure switches fit Weishaupt WGL 40/1-A?
These fit Weishaupt WGL 40/1-A: Weishaupt Pressure Switch Holder 605243; Weishaupt Pressure switch 640109; Weishaupt Pressure switch 691370. ↑
Which burner components fit Weishaupt WGL 40/1-A?
These fit Weishaupt WGL 40/1-A: Weishaupt Equalizing Disc 23541014012; Weishaupt Copper Washer 440027. ↑
Which flame sensors fit Weishaupt WGL 40/1-A?

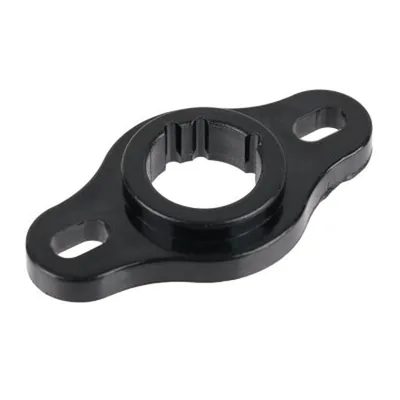

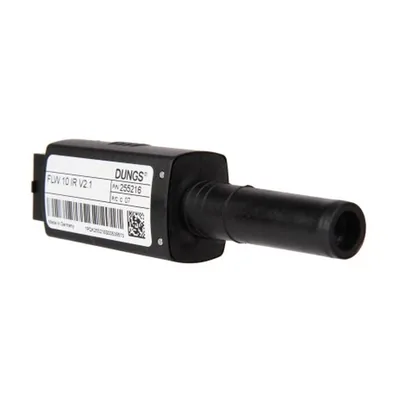

These fit Weishaupt WGL 40/1-A: Weishaupt Flame sensor flange 600637; Weishaupt Flame sensor 600639. ↑
Which wiring, cables & electrical components fit Weishaupt WGL 40/1-A?
These fit Weishaupt WGL 40/1-A: Weishaupt Minicontactor B6-30-01 701916; Weishaupt Capacitor 3 uF 713462. ↑
Which burner pipes, flanges & connections fit Weishaupt WGL 40/1-A?
These fit Weishaupt WGL 40/1-A: Weishaupt Threaded Fitting 29050413037. ↑
