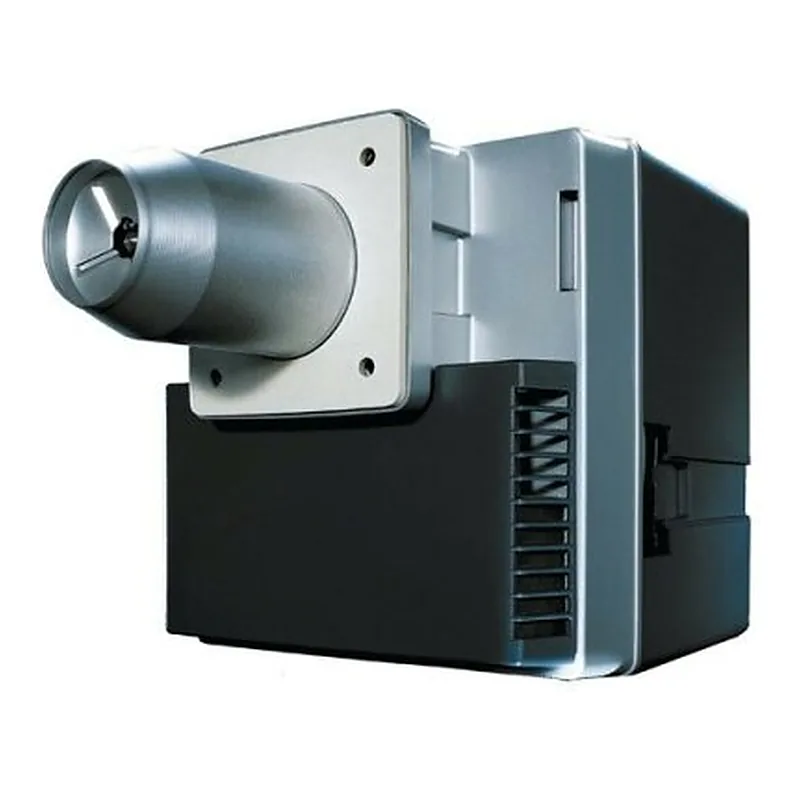

Weishaupt WL 10/2-C — oil burner, photo 1

Weishaupt WL 10/2-C — spare parts

Fuel: Oil
Output: 35–70 kW
Parts: 2
Versions: 3

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Flame sensors for Weishaupt WL 10/2-C · 1

Weishaupt Flame sensor 24105012072

—on request

Impellers for Weishaupt WL 10/2-C · 1

Weishaupt Fan Impeller 24111008032

—on request

Specifications

FuelOil

Output35–70 kW

Firing stagesSingle-stage

Fan motor power130 W

Supply voltage220 V

Power consumption200 W

Length485 mm

Width330 mm

Height353 mm

Net weight14 kg

Flame tube length140 mm

Flame tube diameter99 mm

Flame tube typestandard

Back pressure (combustion chamber)-0.5–0.8 mbar

Operating temperature-10–40 °C

Overall dimensions48.5 x 33 x 35.3 cm

Delivery scopewith combustion head

Versions

WL 10/2-C24111020

WL 10/2-C24111022

WL 10/2-C, Z24111023

Questions about Weishaupt WL 10/2-C parts

Which flame sensors fit Weishaupt WL 10/2-C?

These fit Weishaupt WL 10/2-C: Weishaupt Flame sensor 24105012072. ↑

Which impellers fit Weishaupt WL 10/2-C?

These fit Weishaupt WL 10/2-C: Weishaupt Fan Impeller 24111008032. ↑
