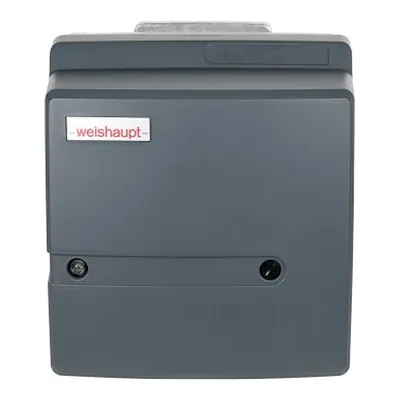

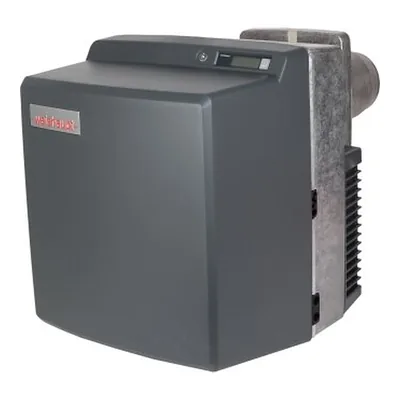

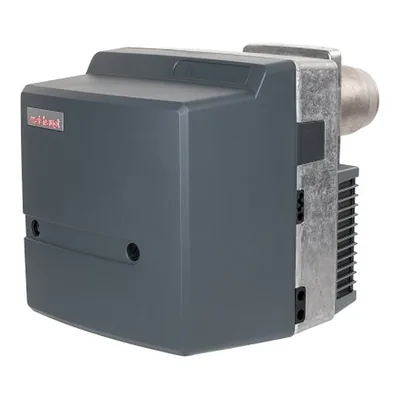

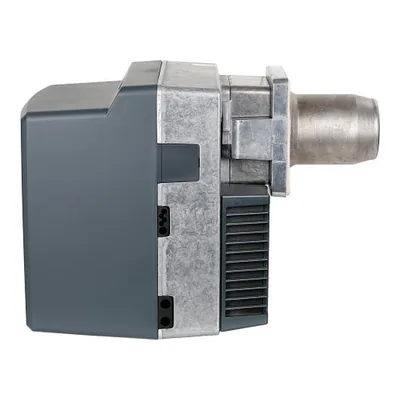

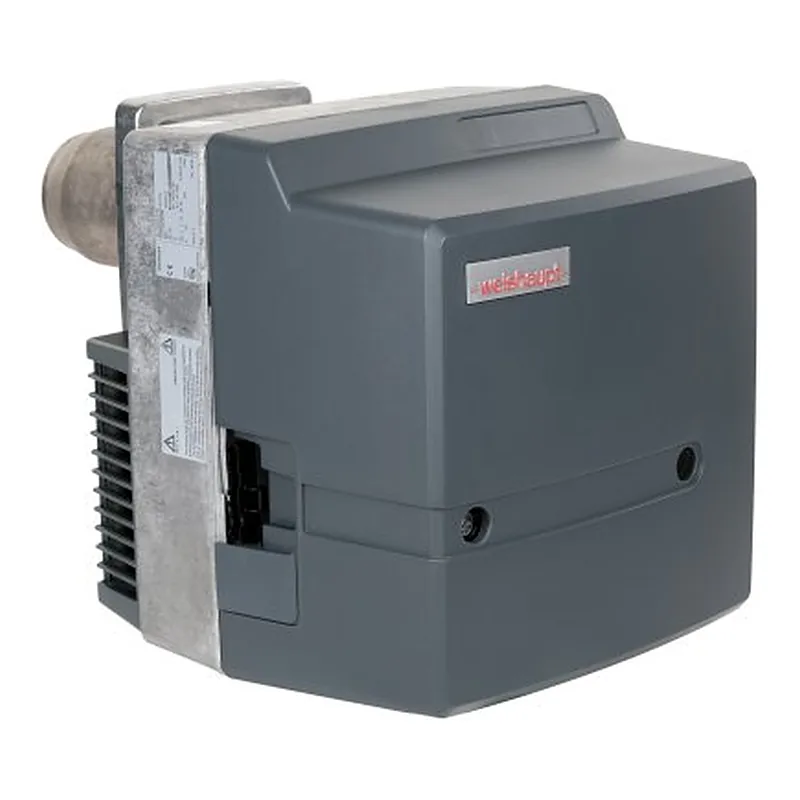

Weishaupt WL 20/1-C — spare parts
- Fuel
- Oil
- Output
- 50–130 kW
- Parts
- 15
- Versions
- 4
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Weishaupt WL 20/1-C · 4
—on request
—on request
—on request
Motors for Weishaupt WL 20/1-C · 3
—on request
—on request
—on request
Cables for Weishaupt WL 20/1-C · 2
—on request
—on request
Block burners for Weishaupt WL 20/1-C · 1
—on request
Burner pipes, flanges & connections for Weishaupt WL 20/1-C · 1
—on request
Burners for Weishaupt WL 20/1-C · 1
—on request
Control devices for Weishaupt WL 20/1-C · 1
—on request
Flame sensors for Weishaupt WL 20/1-C · 1
—on request
Oil supply components for Weishaupt WL 20/1-C · 1
—on request
What is inside Weishaupt WL 20/1-C
Components named in the manufacturer's documentation.
- W-FM05
- Weishaupt WL20/1-C
- Weishaupt WL20/2-C
Specifications
FuelOil
Output50–130 kW
Firing stagesSingle-stage
Supply voltage220 V
Power consumption320–430 W
Length537 mm
Width358 mm
Height376 mm
Net weight20 kg
Flame tube length144 mm
Flame tube diameter108 mm
Flame tube typestandard
Back pressure (combustion chamber)-0.5–1 mbar
Noise level75 dB
Operating temperature-10–40 °C
Overall dimensions53.7 x 35.8 x 37.6 cm
Delivery scopewith combustion head
Versions
WL 20/1-C24121011
WL 20/1-C24121021
WL 20/1-C, Z24121321
WL 20/1-C, Z-1LN24121325
Questions about Weishaupt WL 20/1-C parts
Which burner components fit Weishaupt WL 20/1-C?

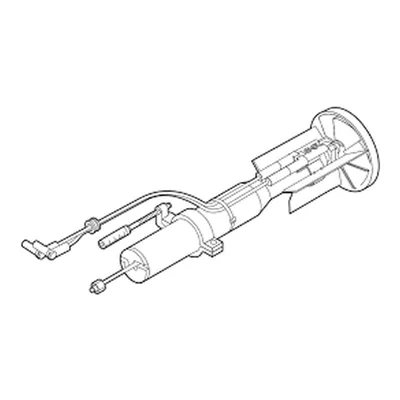

These fit Weishaupt WL 20/1-C: Weishaupt Flame head extension 24000384; Weishaupt Flame head extension 24000385; Weishaupt Housing Cover 24121001227; Weishaupt Nozzle Block Assembly 24121010132. ↑
Which motors fit Weishaupt WL 20/1-C?
These fit Weishaupt WL 20/1-C: Weishaupt Electric Motor 23021007012; Weishaupt Motor with Adapter Plug 24000387; Weishaupt Electric Motor 652084. ↑
Which cables fit Weishaupt WL 20/1-C?
These fit Weishaupt WL 20/1-C: Weishaupt Power Cable 24105012052; Weishaupt Power Cable 24121012012. ↑
Which block burners fit Weishaupt WL 20/1-C?
These fit Weishaupt WL 20/1-C: Weishaupt Nozzle Block 24121010010. ↑
Which burner pipes, flanges & connections fit Weishaupt WL 20/1-C?
These fit Weishaupt WL 20/1-C: Weishaupt Fuel Hose Clamp 24121010057. ↑
Which burners fit Weishaupt WL 20/1-C?
These fit Weishaupt WL 20/1-C: Weishaupt Burner Tube 24121014052. ↑
