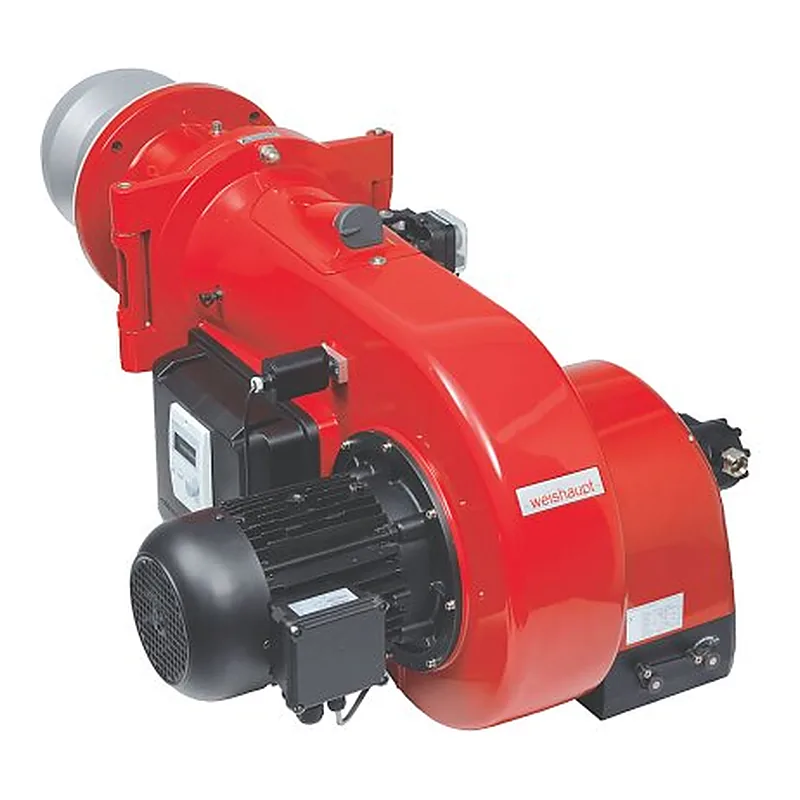

Weishaupt WM-G 20/2-A — gas burner, photo 1

Weishaupt WM-G 20/2-A — spare parts

Fuel
Gas
Output
58–2100 kW
Parts
14
Versions
28

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Plugs and connectors for Weishaupt WM-G 20/2-A · 6

Burner components for Weishaupt WM-G 20/2-A · 3

Cables for Weishaupt WM-G 20/2-A · 1

Control devices for Weishaupt WM-G 20/2-A · 1

Gas valves for Weishaupt WM-G 20/2-A · 1

Sensors and switches for Weishaupt WM-G 20/2-A · 1

Wiring, cables & electrical components for Weishaupt WM-G 20/2-A · 1

What is inside Weishaupt WM-G 20/2-A

Components named in the manufacturer's documentation.

  • 9/1-100/150
  • WM-G 20/2-A/ ZM
  • электродов ионизации и зажигания

Specifications

FuelGas
Output58–2100 kW
Firing stagesTwo-stage progressive
Fan motor power3000 W
Power consumption55 W
Net weight86 kg
Protection class (IP)IP54
Flame tube length231 mm
Flame tube diameter240 mm
Flame tube typestandard
Back pressure (combustion chamber)-2–10 mbar
Gas consumption15–203 m³/h
Gas train pressure8–25 mbar
Noise level80 dB
Operating temperature-15–40 °C
Overall dimensions124.1 x 73.9 x 56.5 cm
Delivery scopewith combustion head

Versions

WM-G 20/2-A, ZM21721020
WM-G 20/2-A, 1, ZM21721111
WM-G 20/2-A, 1 1/2, ZM21721112
WM-G 20/2-A, 2, ZM21721113
WM-G 20/2-A, DN 65, ZM21721114
WM-G 20/2-A, DN 80, ZM21721115
WM-G 20/2-A, DN 100, ZM21721116
WM-G 20/2-A, DN 125, ZM21721117
WM-G 20/2-A, 1, ZM-LN21721211
WM-G 20/2-A, 1 1/2, ZM-LN21721212
WM-G 20/2-A, 2, ZM-LN21721213
WM-G 20/2-A, DN 65, ZM-LN21721214
WM-G 20/2-A, DN 80, ZM-LN21721215
WM-G 20/2-A, DN 100, ZM-LN21721216
WM-G 20/2-A, DN 125, ZM-LN21721217
WM-G 20/2-A, 1, ZM-3LN21721511
WM-G 20/2-A, 1 1/2, ZM-3LN21721512
WM-G 20/2-A, 2, ZM-3LN21721513
WM-G 20/2-A, DN 65, ZM-3LN21721514
WM-G 20/2-A, DN 80, ZM-3LN21721515
WM-G 20/2-A, DN 100, ZM-3LN21721516
WM-G 20/2-A, DN 125, ZM-3LN21721517
WM-G 20/2-A, 1, ZMI21721711
WM-G 20/2-A, 1 1/2, ZMI21721712
WM-G 20/2-A, 2, ZMI21721713
WM-G20/2-A ZMI DN6521721714
WM-G20/2-A ZMI DN8021721715
WM-G20/2-A DN 100 ZMI21721716

Other versions of this seriesWeishaupt WM-G 20/2-A · 4

Parts often differ between versions of one series: pick the version named on your rating plate.

Questions about Weishaupt WM-G 20/2-A parts

Which plugs and connectors fit Weishaupt WM-G 20/2-A?

These fit Weishaupt WM-G 20/2-A: Weishaupt 2-pin plug 716300; Weishaupt 2-pin plug 716301; Weishaupt 3-pin plug 716306; Weishaupt 4-pin plug 716309; Weishaupt 4-pin plug 716322; Weishaupt 5-pin plug 716323. ↑

Which burner components fit Weishaupt WM-G 20/2-A?

These fit Weishaupt WM-G 20/2-A: Weishaupt Sealing ring 21116311027; Weishaupt Equalizing Disc 21720514072; Weishaupt Gas Damper 21740525022. ↑

Which cables fit Weishaupt WM-G 20/2-A?

These fit Weishaupt WM-G 20/2-A: Weishaupt Cable 21770612102. ↑

Which control devices fit Weishaupt WM-G 20/2-A?

These fit Weishaupt WM-G 20/2-A: Weishaupt Combustion Manager W-FM 200 600463. ↑

Which gas valves fit Weishaupt WM-G 20/2-A?

These fit Weishaupt WM-G 20/2-A: Weishaupt Gas Solenoid Valve 15133326032. ↑

Which sensors and switches fit Weishaupt WM-G 20/2-A?

These fit Weishaupt WM-G 20/2-A: Weishaupt Limit Switch 21110401062. ↑
