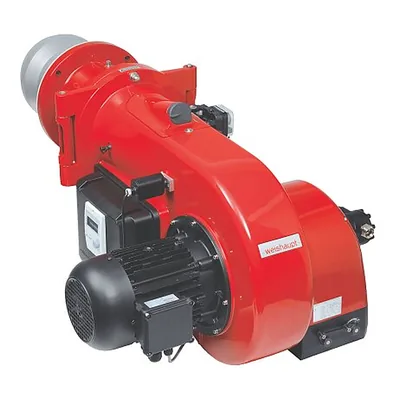

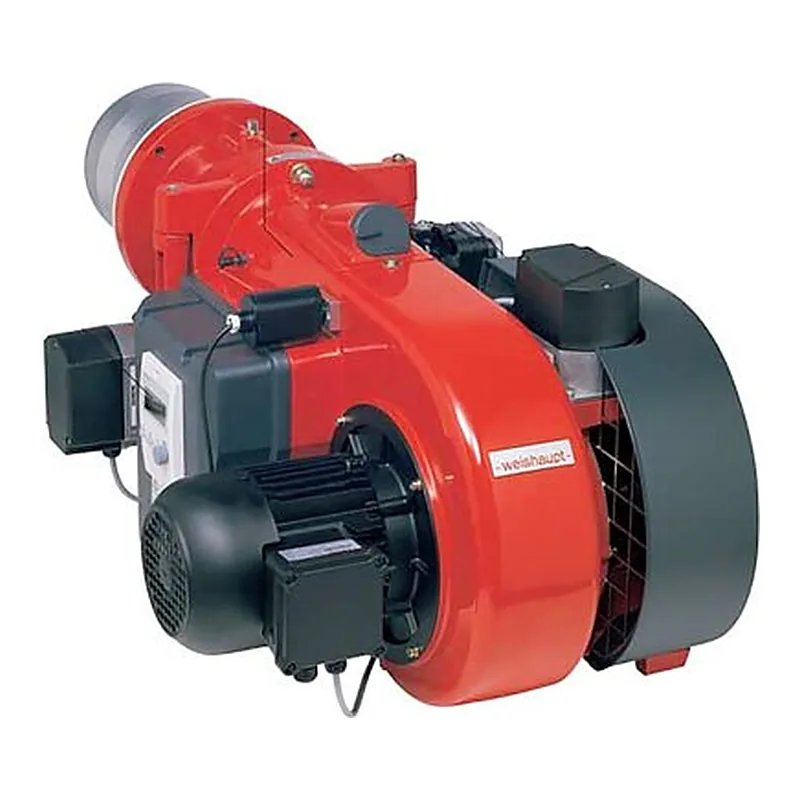

Weishaupt WM-G 20/3-A — spare parts
- Fuel
- Gas
- Output
- 300–2600 kW
- Parts
- 14
- Versions
- 23
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Weishaupt WM-G 20/3-A · 4
—on request
—on request
—on request
Cables for Weishaupt WM-G 20/3-A · 3
—on request
—on request
—on request
Motors for Weishaupt WM-G 20/3-A · 2
—on request
—on request
Pressure switches for Weishaupt WM-G 20/3-A · 2
—on request
—on request
Gas nozzles & injectors for Weishaupt WM-G 20/3-A · 1
—on request
Plugs and connectors for Weishaupt WM-G 20/3-A · 1
—on request
Sensors and switches for Weishaupt WM-G 20/3-A · 1
—on request
What is inside Weishaupt WM-G 20/3-A
Components named in the manufacturer's documentation.
- W-FM 50
- WM-G 20/2-A
- WM-G 20/3-A
Specifications
FuelGas
Output300–2600 kW
Firing stagesTwo-stage progressive
Fan motor power4100 W
Power consumption70 W
Net weight97 kg
Flame tube length231 mm
Flame tube diameter240 mm
Flame tube typestandard
Back pressure (combustion chamber)-2–13 mbar
Gas consumption33.8–251 m³/h
Gas train pressure11–48 mbar
Noise level85 dB
Operating temperature-15–40 °C
Overall dimensions124.1 x 75 x 56.5 cm
Delivery scopewith combustion head
Versions
WM-G 20/3-A, ZM21721030
WM-G 20/3-A, 1, ZM21721311
WM-G 20/3-A, 1 1/2, ZM21721312
WM-G 20/3-A, 2, ZM21721313
WM-G 20/3-A, DN 65, ZM21721314
WM-G 20/3-A, DN 80, ZM21721315
WM-G 20/3-A, DN 100, ZM21721316
WM-G 20/3-A, DN 125, ZM21721317
WM-G 20/3-A, 1, ZM-LN21721411
WM-G 20/3-A, 1 1/2, ZM-LN21721412
WM-G 20/3-A, 2, ZM-LN21721413
WM-G 20/3-A, DN 65, ZM-LN21721414
WM-G 20/3-A, DN 80, ZM-LN21721415
WM-G 20/3-A, DN 100, ZM-LN21721416
WM-G 20/3-A, DN 125, ZM-LN21721417
WM-G 20/3-A, 1, ZM-3LN21721611
WM-G 20/3-A, 1 1/2, ZM-3LN21721612
WM-G 20/3-A, 2, ZM-3LN21721613
WM-G 20/3-A, DN 65, ZM-3LN21721614
WM-G 20/3-A, DN 80, ZM-3LN21721615
WM-G 20/3-A, DN 100, ZM-3LN21721616
WM-G 20/3-A, DN 125, ZM-3LN21721617
WM-G 20/3-A, 1 1/2, ZM-4LN21722612
Questions about Weishaupt WM-G 20/3-A parts
Which burner components fit Weishaupt WM-G 20/3-A?
These fit Weishaupt WM-G 20/3-A: Weishaupt Lever 21110402047; Weishaupt Hinge Rod 21110402192; Weishaupt Equalizing Disc 21720514072; Weishaupt Intermediate Housing 21770425022. ↑
Which cables fit Weishaupt WM-G 20/3-A?
These fit Weishaupt WM-G 20/3-A: Weishaupt Cable 21710426022; Weishaupt Cable with Plug 21710426042; Weishaupt Cable 21770612482. ↑
Which motors fit Weishaupt WM-G 20/3-A?
These fit Weishaupt WM-G 20/3-A: Weishaupt Electric Motor 21520407030; Weishaupt Electric Motor 21520407300. ↑
Which pressure switches fit Weishaupt WM-G 20/3-A?
These fit Weishaupt WM-G 20/3-A: Weishaupt Pressure switch 691373; Weishaupt Pressure switch 691385. ↑
Which gas nozzles & injectors fit Weishaupt WM-G 20/3-A?
These fit Weishaupt WM-G 20/3-A: Weishaupt Inlet Nozzle 21120402017. ↑
Which plugs and connectors fit Weishaupt WM-G 20/3-A?
These fit Weishaupt WM-G 20/3-A: Weishaupt 2-pin plug 716414. ↑
