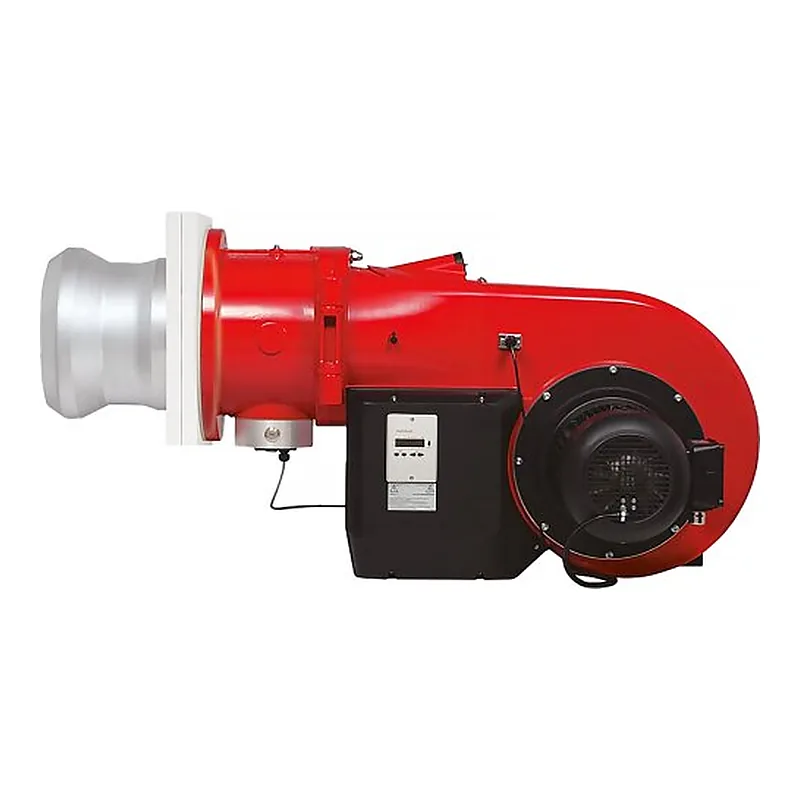

Weishaupt WM-G 30/3-A — gas burner, photo 1

Weishaupt WM-G 30/3-A — spare parts

Fuel
Gas
Output
500–5700 kW
Parts
13
Versions
18

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Burner components for Weishaupt WM-G 30/3-A · 7

Pressure switches for Weishaupt WM-G 30/3-A · 2

Burner pipes, flanges & connections for Weishaupt WM-G 30/3-A · 1

Gas valves for Weishaupt WM-G 30/3-A · 1

Impellers for Weishaupt WM-G 30/3-A · 1

Wiring, cables & electrical components for Weishaupt WM-G 30/3-A · 1

What is inside Weishaupt WM-G 30/3-A

Components named in the manufacturer's documentation.

  • WM-G 30/1-A
  • WM-G 30/2-A
  • WM-G 30/3-A

Specifications

FuelGas
Output500–5700 kW
Firing stagesTwo-stage progressive
Fan motor power16500 W
Supply voltage220 V / 380 V
Power consumption65 W
Net weight165 kg
Flame tube length389 mm
Flame tube diameter365 mm
Flame tube typestandard
Back pressure (combustion chamber)-2–18 mbar
Gas consumption58–551 m³/h
Gas train pressure40–175 mbar
Noise level93 dB
Operating temperature-15–40 °C
Overall dimensions155.5 x 90.5 x 72.2 cm
Delivery scopewith combustion head

Versions

WM-G 30/3-A, 1 1/2, ZM21731412
WM-G 30/3-A, 2, ZM21731413
WM-G 30/3-A, DN 65, ZM21731414
WM-G 30/3-A, DN 80, ZM21731415
WM-G 30/3-A, DN 100, ZM21731416
WM-G 30/3-A, DN 125, ZM21731417
21731418
WM-G 30/3-A, 1 1/2, ZM-LN21731512
WM-G 30/3-A, 2, ZM-LN21731513
WM-G 30/3-A, DN 65, ZM-LN21731514
WM-G 30/3-A, DN 80, ZM-LN21731515
WM-G 30/3-A, DN 100, ZM-LN21731516
WM-G 30/3-A, DN 125, ZM-LN21731517
WM-G 30/3-A, DN 150, ZM-LN21731518
WM-G 30/3-A, 1 1/2, ZM-3LN21731912
WM-G 30/3-A, 2, ZM-3LN21731913
WM-G 30/3-A, DN 65, ZM-3LN21731914
WM-G 30/3-A, DN 80, ZM-3LN21731915

Questions about Weishaupt WM-G 30/3-A parts

Which burner components fit Weishaupt WM-G 30/3-A?

These fit Weishaupt WM-G 30/3-A: Weishaupt Lever 21110402047; Weishaupt Hinge Rod 21110402192; Weishaupt Air Damper Shaft 21131402082; Weishaupt Suction Grid 21150402112; Weishaupt Intermediate Housing 21770425022; Weishaupt Spring Nut 6 x 20 mm 412506; Weishaupt Washer 430015. ↑

Which pressure switches fit Weishaupt WM-G 30/3-A?

These fit Weishaupt WM-G 30/3-A: Weishaupt Pressure switch 691373; Weishaupt Pressure switch 691385. ↑

Which burner pipes, flanges & connections fit Weishaupt WM-G 30/3-A?

These fit Weishaupt WM-G 30/3-A: Weishaupt Flange Seal 11197400077. ↑

Which gas valves fit Weishaupt WM-G 30/3-A?

These fit Weishaupt WM-G 30/3-A: Weishaupt Gas Solenoid Valve 15133326032. ↑

Which impellers fit Weishaupt WM-G 30/3-A?

These fit Weishaupt WM-G 30/3-A: Weishaupt Fan Impeller 21131408021. ↑

Which wiring, cables & electrical components fit Weishaupt WM-G 30/3-A?

These fit Weishaupt WM-G 30/3-A: Weishaupt Minicontactor 702755. ↑
