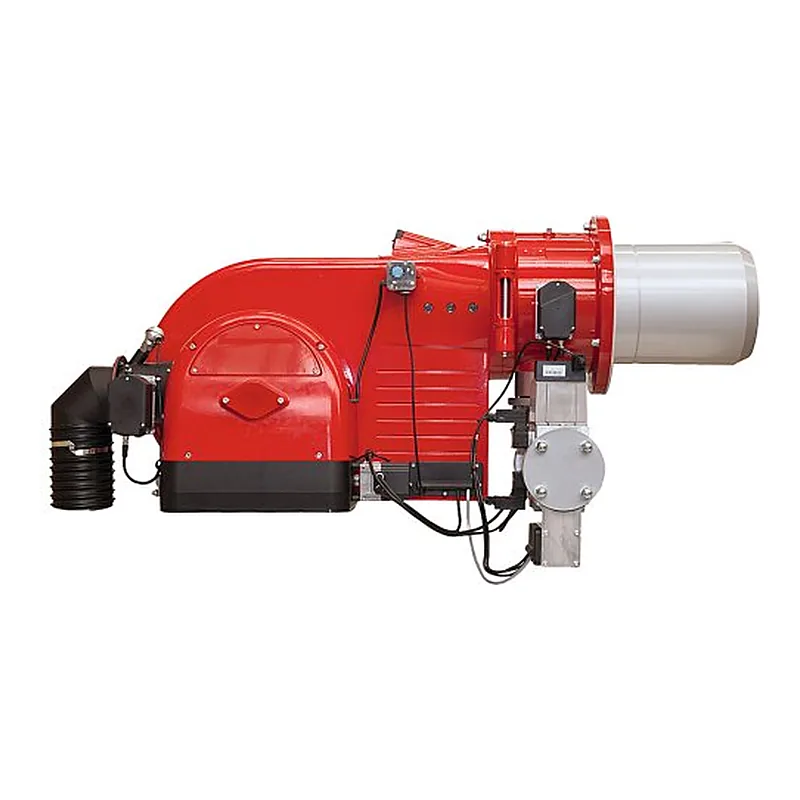

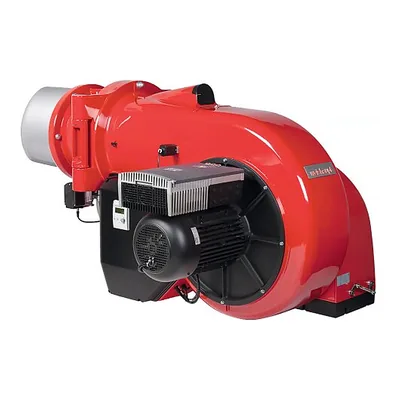

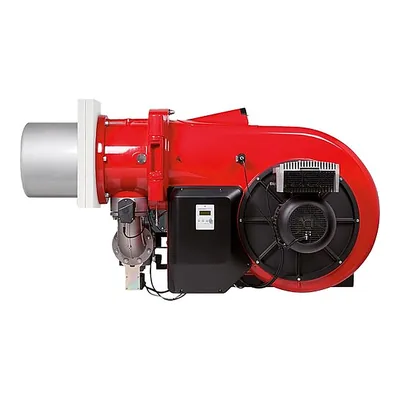

Weishaupt WM-G 50/2-A — spare parts
- Fuel
- Gas
- Output
- 900–11000 kW
- Parts
- 17
- Versions
- 7
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Weishaupt WM-G 50/2-A · 8
—on request
—on request
—on request
—on request
—on request
—on request
—on request
Wiring, cables & electrical components for Weishaupt WM-G 50/2-A · 3
—on request
—on request
—on request
Pressure switches for Weishaupt WM-G 50/2-A · 2
—on request
—on request
Actuators for Weishaupt WM-G 50/2-A · 1
—on request
Burner pipes, flanges & connections for Weishaupt WM-G 50/2-A · 1
—on request
Ionization & ignition electrodes for Weishaupt WM-G 50/2-A · 1
—on request
Sensors and switches for Weishaupt WM-G 50/2-A · 1
—on request
What is inside Weishaupt WM-G 50/2-A
Components named in the manufacturer's documentation.
- Max Weishaupt WM-G 50/2-A
Specifications
FuelGas
Output900–11000 kW
Firing stagesTwo-stage progressive
Fan motor power20600 W
Supply voltage220 V / 380 V
Power consumption145 W
Net weight430 kg
Flame tube length457 mm
Flame tube diameter403 mm
Flame tube typestandard
Back pressure (combustion chamber)-2–26 mbar
Gas consumption96.6–1063 m³/h
Gas train pressure157–291 mbar
Noise level93 dB
Operating temperature-15–40 °C
Overall dimensions209.3 x 128.3 x 107.1 cm
Delivery scopewith combustion head
Versions
WM-G 50/2-A, DN 65, ZM-NR21752214
WM-G 50/2-A, DN 80, ZM-NR21752215
WM-G 50/2-A, DN 100, ZM-NR21752216
WM-G 50/2-A, DN 125, ZM-NR21752217
WM-G 50/2-A, DN 150, ZM-NR21752218
WM-G 50/2-A, DN 100, ZM-4LN21752716
WM-G 50/2-A, DN 100, ZM-3LN21753316
Questions about Weishaupt WM-G 50/2-A parts
Which burner components fit Weishaupt WM-G 50/2-A?

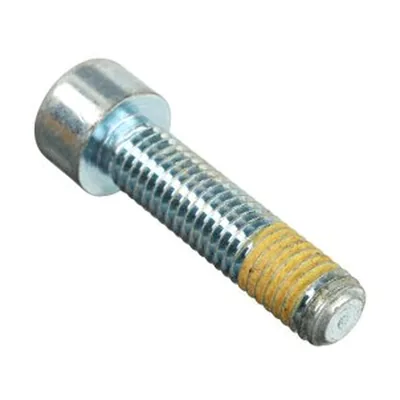

These fit Weishaupt WM-G 50/2-A: Weishaupt Seal 17720500037; Weishaupt Air Regulator Insulation 21151402047; Weishaupt Screw M10 X 40 402630; Weishaupt Hexagonal Nut 411507; Weishaupt Spring Nut 6 x 20 mm 412506; Weishaupt Retaining Washer 490003; Weishaupt Retaining Washer 490005; Weishaupt Prismatic Key 490314. ↑
Which wiring, cables & electrical components fit Weishaupt WM-G 50/2-A?
These fit Weishaupt WM-G 50/2-A: Weishaupt Minicontactor 3RT2025 703110; Weishaupt Minicontactor 703111; Weishaupt Time Relay 703300. ↑
Which pressure switches fit Weishaupt WM-G 50/2-A?
These fit Weishaupt WM-G 50/2-A: Weishaupt Pressure switch 691373; Weishaupt Pressure switch 691385. ↑
Which actuators fit Weishaupt WM-G 50/2-A?
These fit Weishaupt WM-G 50/2-A: Weishaupt Actuator 651503. ↑
Which burner pipes, flanges & connections fit Weishaupt WM-G 50/2-A?
These fit Weishaupt WM-G 50/2-A: Weishaupt Threaded Fitting 25110324017. ↑
Which ionization & ignition electrodes fit Weishaupt WM-G 50/2-A?
These fit Weishaupt WM-G 50/2-A: Weishaupt Electrode Holder Block 21760414047. ↑
