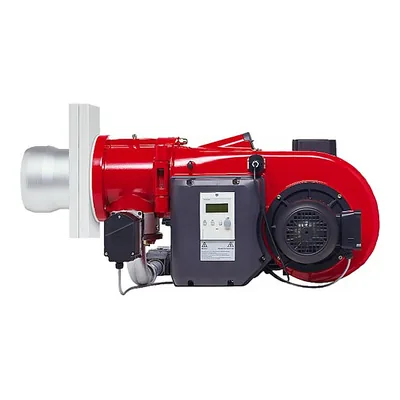

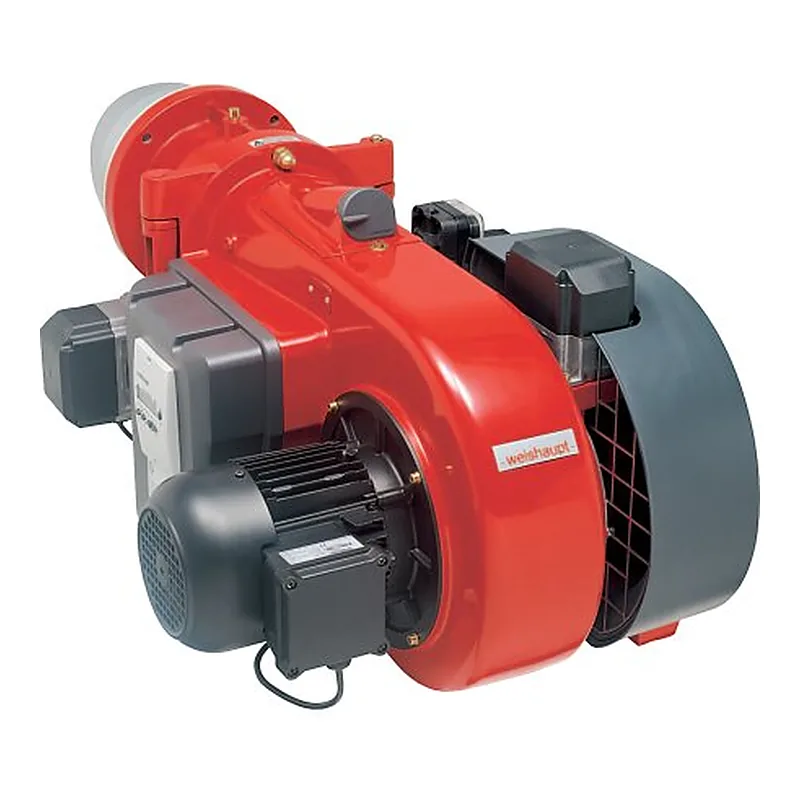

Weishaupt WM-GL 10/3-A — spare parts
- Fuel
- Gas / oil
- Output
- 110–1000 kW
- Parts
- 14
- Versions
- 18
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Gas valves for Weishaupt WM-GL 10/3-A · 6
—on request
—on request
—on request
—on request
—on request
Burner components for Weishaupt WM-GL 10/3-A · 3
—on request
—on request
—on request
Gas nozzles & injectors for Weishaupt WM-GL 10/3-A · 2
—on request
—on request
Gas valves & coils for Weishaupt WM-GL 10/3-A · 2
—on request
—on request
Burners for Weishaupt WM-GL 10/3-A · 1
—on request
What is inside Weishaupt WM-GL 10/3-A
Components named in the manufacturer's documentation.
- WM - GL10/3-A / ZM-R
- Max Weishaupt W-FM 54
- Max Weishaupt WM-GL 10/3-A
- Max Weishaupt ZM-R
Specifications
FuelGas / oil
Output110–1000 kW
Fan motor power1810 W
Supply voltage220 V / 380 V
Power consumption65 W
Height445 mm
Net weight58 kg
Flame tube length224 mm
Flame tube diameter200 mm
Flame tube typestandard
Back pressure (combustion chamber)-2–7 mbar
Gas consumption10.6–96.6 m³/h
Gas train pressure9–17 mbar
Noise level81 dB
Operating temperature-15–40 °C
Overall dimensions105.7 x 63 x 44.5 cm
Delivery scopewith combustion head
Versions
WM-GL 10/3-A, 3/4, ZM-T21811310
WM-GL 10/3-A, 1, ZM-T21811311
WM-GL 10/3-A, 1 1/2, ZM-T21811312
WM-GL 10/3-A, 2, ZM-T21811313
WM-GL 10/3-A, DN 65, ZM-T21811314
WM-GL 10/3-A, DN 80, ZM-T21811315
WM-GL 10/3-A, DN 100, ZM-T21811316
WM-GL 10/3-A, 3/4, ZM-R21811610
WM-GL 10/3-A, 1, ZM-R21811611
WM-GL 10/3-A, 1 1/2, ZM-R21811612
WM-GL 10/3-A, 2, ZM-R21811613
WM-GL 10/3-A, DN 65, ZM-R21811614
WM-GL 10/3-A, DN 80, ZM-R21811615
WM-GL 10/3-A, DN 100, ZM-R21811616
WM-GL 10/3-A, 3/4, ZM-T-3LN21812210
WM-GL 10/3-A, 1, ZM-T-3LN21812211
WM-GL 10/3-A, 1 1/2, ZM-T-3LN21812212
WM-GL 10/3-A, 2, ZM-T-3LN21812213
Questions about Weishaupt WM-GL 10/3-A parts
Which gas valves fit Weishaupt WM-GL 10/3-A?
These fit Weishaupt WM-GL 10/3-A: Weishaupt Gas valve DMV 5080/12 15106526550; Weishaupt Gas valve DMV 5080/12 15106526600; Weishaupt Gas Solenoid Valve 15133326032; Weishaupt Gas valve DMV 5100/12 21706526110; Weishaupt Valve train DMV5100/12 27070526420; Weishaupt Gas valve DMV5065/12 29010026520. ↑
Which burner components fit Weishaupt WM-GL 10/3-A?
These fit Weishaupt WM-GL 10/3-A: Weishaupt Valve train group 21710026212; Weishaupt Valve train group 21710026222; Weishaupt Burner components DMV5065/12 25010026050. ↑
Which gas nozzles & injectors fit Weishaupt WM-GL 10/3-A?
These fit Weishaupt WM-GL 10/3-A: Weishaupt Gas nozzle 21810514087; Weishaupt Gas nozzle 1.25/60° S 612210. ↑
Which gas valves & coils fit Weishaupt WM-GL 10/3-A?
These fit Weishaupt WM-GL 10/3-A: Weishaupt Valve train DMV5065/12 21710026200; Weishaupt Magnetic Valve DMV 5100/12 625020. ↑
Which burners fit Weishaupt WM-GL 10/3-A?
These fit Weishaupt WM-GL 10/3-A: Weishaupt Burner DMV5080/12 25010026060. ↑
