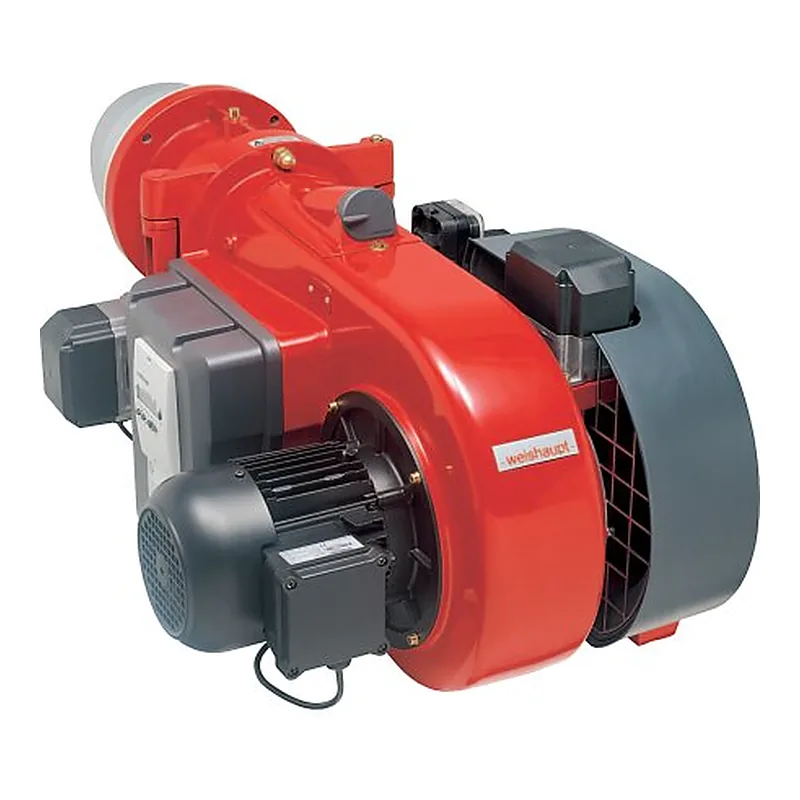

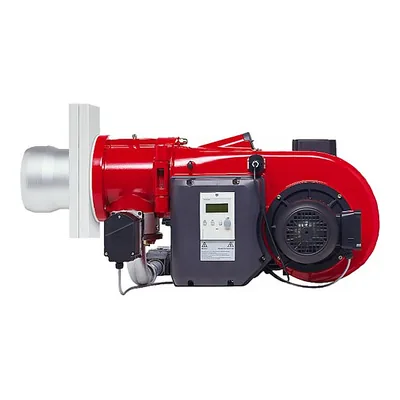

Weishaupt WM-GL 10/4-A — dual-fuel burner, photo 1

Weishaupt WM-GL 10/4-A — spare parts

Fuel
Gas / oil
Output
130–1250 kW
Parts
12
Versions
12

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Burners for Weishaupt WM-GL 10/4-A · 1

Gas valves & coils for Weishaupt WM-GL 10/4-A · 1

What is inside Weishaupt WM-GL 10/4-A

Components named in the manufacturer's documentation.

  • Max Weishaupt WM-GL 10/1-A
  • Max Weishaupt WM-GL 10/2-A
  • Max Weishaupt WM-GL 10/3-A
  • Max Weishaupt WM-GL 10/4-A

Specifications

FuelGas / oil
Output130–1250 kW
Fan motor power1900 W
Supply voltage220 V / 380 V
Power consumption65 W
Length1057 mm
Height445 mm
Net weight58 kg
Flame tube length224 mm
Flame tube diameter218 mm
Flame tube typestandard
Back pressure (combustion chamber)-2–8 mbar
Gas consumption12.6–120.8 m³/h
Gas train pressure12–31 mbar
Noise level83 dB
Operating temperature-15–40 °C
Overall dimensions105.7 x 65.9 x 44.5 cm
Delivery scopewith combustion head

Versions

WM-GL 10/4-A, 1, ZM-T21811411
WM-GL 10/4-A, 1 1/2, ZM-T21811412
WM-GL 10/4-A, 2, ZM-T21811413
21811414
WM-GL 10/4-A, DN 80, ZM-T21811415
WM-GL 10/4-A, DN 100, ZM-T21811416
WM-GL 10/4-A, 1, ZM-R21811711
WM-GL 10/4-A, 1 1/2, ZM-R21811712
WM-GL 10/4-A, 2, ZM-R21811713
WM-GL 10/4-A, DN 65, ZM-R21811714
WM-GL 10/4-A, DN 80, ZM-R21811715
WM-GL 10/4-A, DN 100, ZM-R21811716

Questions about Weishaupt WM-GL 10/4-A parts

Which gas valves fit Weishaupt WM-GL 10/4-A?

These fit Weishaupt WM-GL 10/4-A: Weishaupt Gas valve DMV 5080/12 15106526550; Weishaupt Gas valve DMV 5080/12 15106526600; Weishaupt Gas Solenoid Valve 15133326032; Weishaupt Gas valve DMV 5100/12 21706526110; Weishaupt Valve train DMV5100/12 27070526420; Weishaupt Gas valve DMV5065/12 29010026520. ↑

Which burner components fit Weishaupt WM-GL 10/4-A?

These fit Weishaupt WM-GL 10/4-A: Weishaupt Valve train group 21710026212; Weishaupt Valve train group 21710026222; Weishaupt Burner components DMV5065/12 25010026050; Weishaupt Burner components Line 22x1.5 IG 29050426057. ↑

Which burners fit Weishaupt WM-GL 10/4-A?

These fit Weishaupt WM-GL 10/4-A: Weishaupt Burner DMV5080/12 25010026060. ↑

Which gas valves & coils fit Weishaupt WM-GL 10/4-A?

These fit Weishaupt WM-GL 10/4-A: Weishaupt Valve train DMV5065/12 21710026200. ↑
