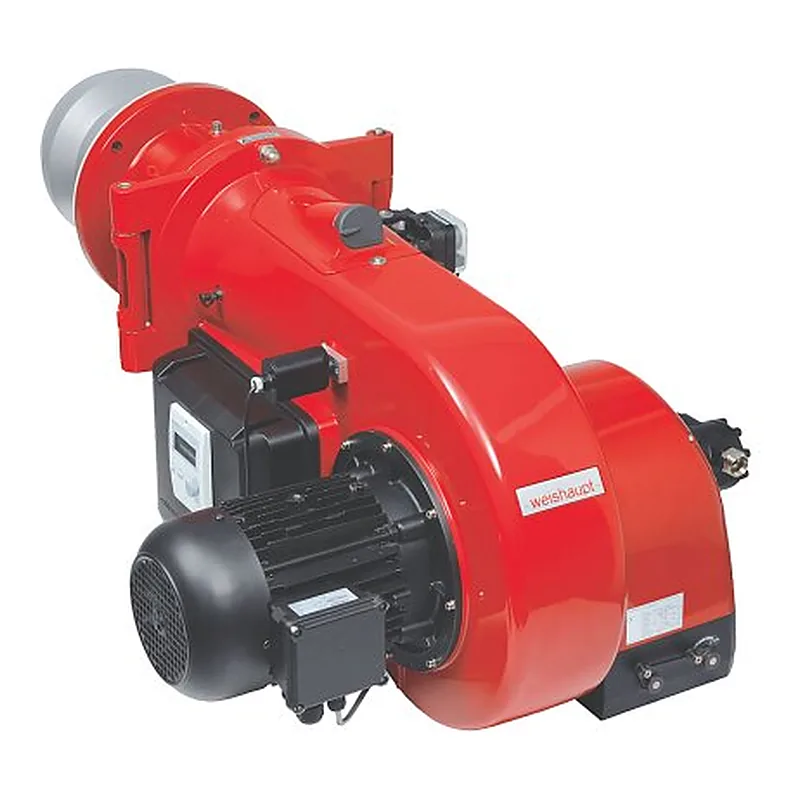

Weishaupt WM-GL 20/3-A — dual-fuel burner, photo 1

Weishaupt WM-GL 20/3-A — spare parts

Fuel
Gas / oil
Output
150–2450 kW
Parts
12
Versions
21

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Burner components for Weishaupt WM-GL 20/3-A · 3

Burners for Weishaupt WM-GL 20/3-A · 1

Control boxes for Weishaupt WM-GL 20/3-A · 1

Gas valves & coils for Weishaupt WM-GL 20/3-A · 1

What is inside Weishaupt WM-GL 20/3-A

Components named in the manufacturer's documentation.

  • WM-GL 20/2-A
  • WM-GL 20/3-A
  • Max Weishaupt WM-GL 20/2-A
  • Max Weishaupt WM-GL 20/3-A

Specifications

FuelGas / oil
Output150–2450 kW
Gas connectionDN 80
Firing stagesThree-stage
Fan motor power5200 W
Supply voltage220 V / 380 V
Power consumption80 W
Net weight101 kg
Flame tube length231 mm
Flame tube diameter260 mm
Flame tube typestandard
Back pressure (combustion chamber)-2–10 mbar
Gas consumption16–210 m³/h
Gas train pressure14–42 mbar
Noise level76 dB
Operating temperature-15–40 °C
Overall dimensions124.1 x 81.7 x 56.5 cm
Delivery scopewith combustion head, with gas train

Versions

WM-GL 20/3-A, 1, ZM-T21821311
WM-GL 20/3-A, 1 1/2, ZM-T21821312
WM-GL 20/3-A, 2, ZM-T21821313
WM-GL 20/3-A, DN 65, ZM-T21821314
WM-GL 20/3-A, DN 80, ZM-T21821315
WM-GL 20/3-A, DN 100, ZM-T21821316
WM-GL 20/3-A, DN 125, ZM-T21821317
WM-GL 20/3-A, 1, ZM-R21821611
WM-GL 20/3-A, 1 1/2, ZM-R21821612
WM-GL 20/3-A, 2, ZM-R21821613
WM-GL 20/3-A, DN 65, ZM-R21821614
WM-GL 20/3-A, DN 80, ZM-R21821615
WM-GL 20/3-A, DN 100, ZM-R21821616
WM-GL 20/3-A, DN 125, ZM-R21821617
WM-GL 20/3-A, 1, ZM-T-3LN21821711
WM-GL 20/3-A, 1 1/2, ZM-T-3LN21821712
WM-GL 20/3-A, 2, ZM-T-3LN21821713
WM-GL 20/3-A, DN 65, ZM-T-3LN21821714
WM-GL 20/3-A, DN 80, ZM-T-3LN21821715
WM-GL 20/3-A, DN 100, ZM-T-3LN21821716
WM-GL 20/3-A, DN 125, ZM-T-3LN21821717

Questions about Weishaupt WM-GL 20/3-A parts

Which gas valves fit Weishaupt WM-GL 20/3-A?

These fit Weishaupt WM-GL 20/3-A: Weishaupt Gas valve DMV 5080/12 15106526550; Weishaupt Gas valve DMV 5080/12 15106526600; Weishaupt Gas Solenoid Valve 15133326032; Weishaupt Gas valve DMV 5100/12 21706526110; Weishaupt Valve train DMV5100/12 27070526420; Weishaupt Gas valve DMV5065/12 29010026520. ↑

Which burner components fit Weishaupt WM-GL 20/3-A?

These fit Weishaupt WM-GL 20/3-A: Weishaupt Valve train group 21710026212; Weishaupt Valve train group 21710026222; Weishaupt Burner components DMV5065/12 25010026050. ↑

Which burners fit Weishaupt WM-GL 20/3-A?

These fit Weishaupt WM-GL 20/3-A: Weishaupt Burner DMV5080/12 25010026060. ↑

Which control boxes fit Weishaupt WM-GL 20/3-A?

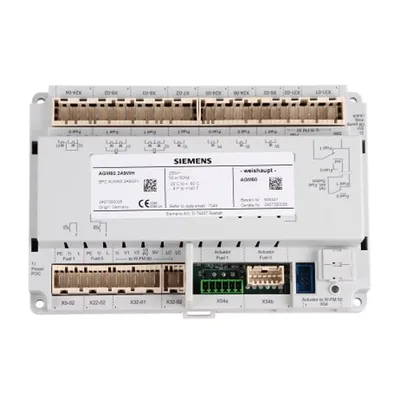

These fit Weishaupt WM-GL 20/3-A: Weishaupt Switching Block 600427. ↑

Which gas valves & coils fit Weishaupt WM-GL 20/3-A?

These fit Weishaupt WM-GL 20/3-A: Weishaupt Valve train DMV5065/12 21710026200. ↑
