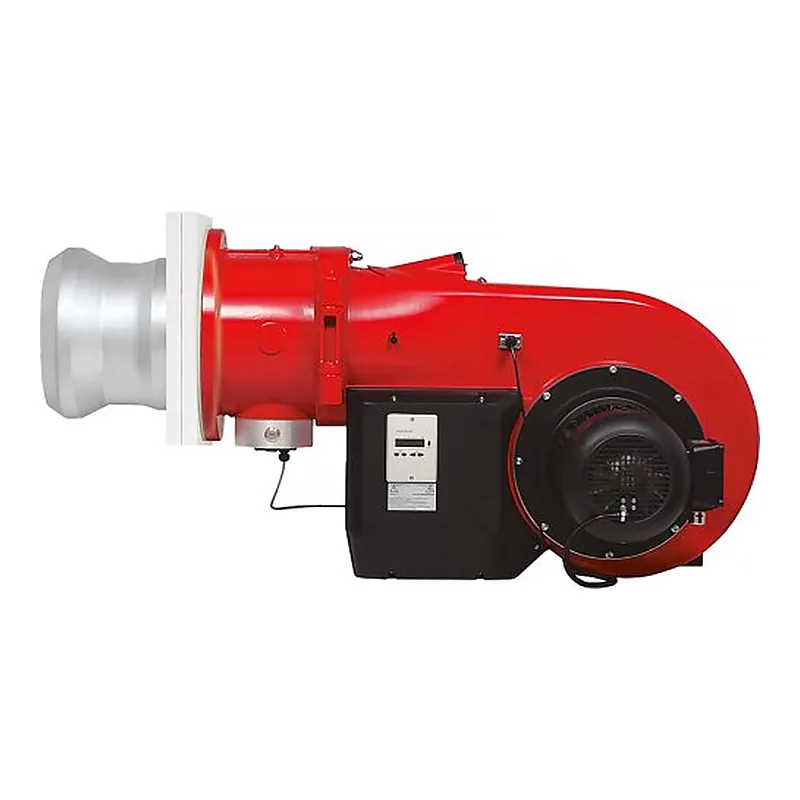

Weishaupt WM-GL 30/3-A — dual-fuel burner, photo 1

Weishaupt WM-GL 30/3-A — spare parts

Fuel
Gas / oil
Output
500–5700 kW
Parts
13
Versions
11

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Burner components for Weishaupt WM-GL 30/3-A · 3

Burner pipes, flanges & connections for Weishaupt WM-GL 30/3-A · 1

Burners for Weishaupt WM-GL 30/3-A · 1

Control devices for Weishaupt WM-GL 30/3-A · 1

Gas nozzles & injectors for Weishaupt WM-GL 30/3-A · 1

Gas valves & coils for Weishaupt WM-GL 30/3-A · 1

What is inside Weishaupt WM-GL 30/3-A

Components named in the manufacturer's documentation.

  • AGM
  • W-FM 100/200
  • WM-GL 30/1-A
  • WM-GL 30/2-A
  • WM-GL 30/3-A

Specifications

FuelGas / oil
Output500–5700 kW
Firing stagesTwo-stage progressive
Fan motor power16500 W
Supply voltage220 V / 380 V
Power consumption120 W
Net weight190 kg
Flame tube length389 mm
Flame tube diameter365 mm
Flame tube typestandard
Back pressure (combustion chamber)-2–18 mbar
Gas consumption60–572 m³/h
Gas train pressure40–175 mbar
Noise level93 dB
Operating temperature-15–40 °C
Overall dimensions155.5 x 113.2 x 72.2 cm
Delivery scopewith combustion head

Versions

WM-GL 30/3-A, 1 1/2, ZM-R21831712
WM-GL 30/3-A, 2, ZM-R21831713
WM-GL 30/3-A, DN 65, ZM-R21831714
WM-GL 30/3-A, DN 80, ZM-R21831715
WM-GL 30/3-A, DN 100, ZM-R21831716
WM-GL 30/3-A, DN 125, ZM-R21831717
WM-GL 30/3-A, DN 150, ZM-R21831718
WM-GL 30/3-A, 2, ZM-R-3LN21832713
WM-GL 30/3-A, DN 65, ZM-R-3LN21832714
WM-GL 30/3-A, DN 80, ZM-R-3LN21832715
WM-GL 30/3-A, 2, ZM-R-4LN21832913

Questions about Weishaupt WM-GL 30/3-A parts

Which gas valves fit Weishaupt WM-GL 30/3-A?

These fit Weishaupt WM-GL 30/3-A: Weishaupt Gas valve DMV 5080/12 15106526550; Weishaupt Gas valve DMV 5080/12 15106526600; Weishaupt Gas Solenoid Valve 15133326032; Weishaupt Gas valve DMV 5100/12 21706526110; Weishaupt Gas valve DMV5065/12 29010026520. ↑

Which burner components fit Weishaupt WM-GL 30/3-A?

These fit Weishaupt WM-GL 30/3-A: Weishaupt Valve train group 21710026212; Weishaupt Valve train group 21710026222; Weishaupt Burner components DMV5065/12 25010026050. ↑

Which burner pipes, flanges & connections fit Weishaupt WM-GL 30/3-A?

These fit Weishaupt WM-GL 30/3-A: Weishaupt Threaded Connection 452452. ↑

Which burners fit Weishaupt WM-GL 30/3-A?

These fit Weishaupt WM-GL 30/3-A: Weishaupt Burner DMV5080/12 25010026060. ↑

Which control devices fit Weishaupt WM-GL 30/3-A?

These fit Weishaupt WM-GL 30/3-A: Weishaupt Combustion Manager W-FM 54 600412. ↑

Which gas nozzles & injectors fit Weishaupt WM-GL 30/3-A?

These fit Weishaupt WM-GL 30/3-A: Weishaupt Gas nozzle W4-250/50° 612981. ↑
