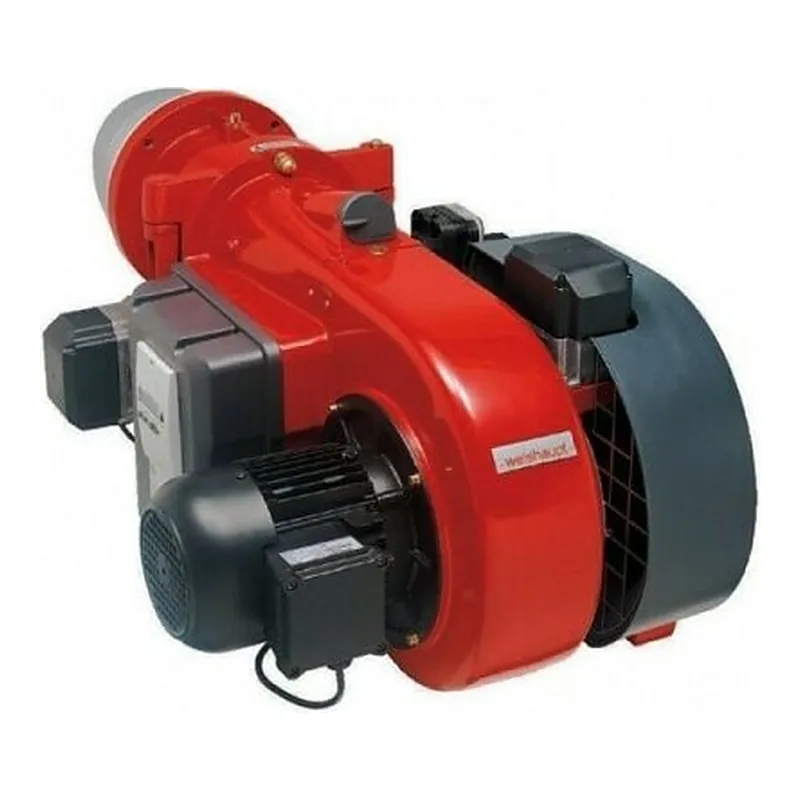

Weishaupt WM-L 10/3-A/R — oil burner, photo 1

Weishaupt WM-L 10/3-A/R — spare parts

Fuel: Oil
Output: 250–800 kW
Parts: 2
Factory code: 21511030

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Ignition transformers for Weishaupt WM-L 10/3-A/R · 1

Weishaupt Ignition transformer 603226

—on request

Impellers for Weishaupt WM-L 10/3-A/R · 1

Weishaupt Fan Impeller 11155208081

—on request

Specifications

FuelOil

Output250–800 kW

Firing stagesTwo-stage progressive

Fan motor power1500 W

Supply voltage220 V

Power consumption130 W

Length830 mm

Width654 mm

Height445 mm

Net weight55 kg

Flame tube length171 mm

Flame tube diameter180 mm

Flame tube typestandard

Back pressure (combustion chamber)-2–7 mbar

Operating temperature-15–40 °C

Overall dimensions83 x 65.4 x 44.5 cm

Delivery scopewith combustion head

Questions about Weishaupt WM-L 10/3-A/R parts

Which ignition transformers fit Weishaupt WM-L 10/3-A/R?

These fit Weishaupt WM-L 10/3-A/R: Weishaupt Ignition transformer 603226. ↑

Which impellers fit Weishaupt WM-L 10/3-A/R?

These fit Weishaupt WM-L 10/3-A/R: Weishaupt Fan Impeller 11155208081. ↑
