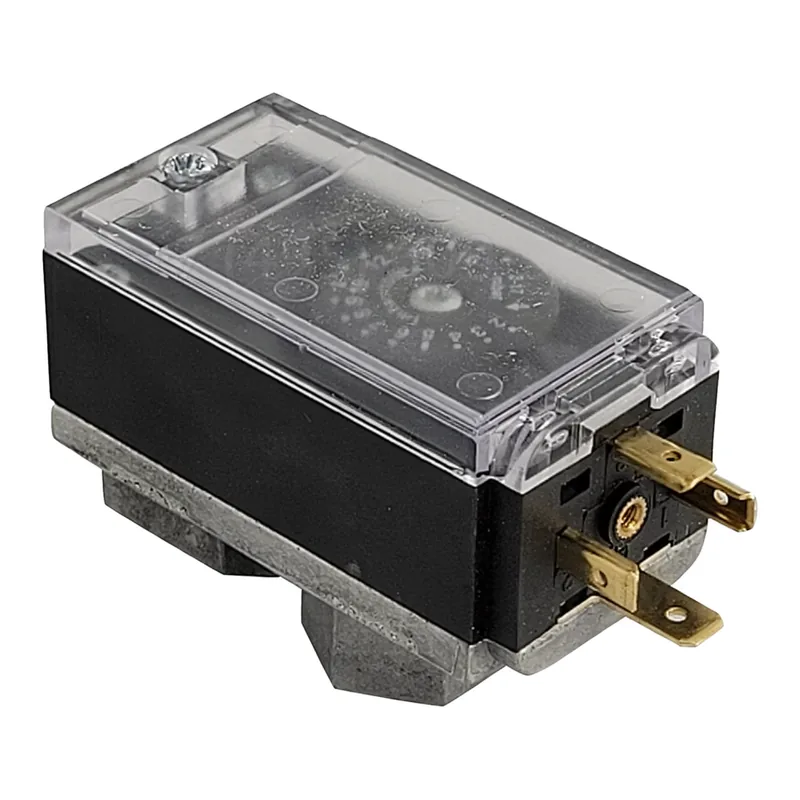

Kromschroder Gas pressure switch DG17VC5-5W 84448010
Brand Kromschroder
Key specifications
| Connection thread | Rp 1/4 internal thread |
|---|---|
| Protection class (IP) | IP00 |
| Body material | glass fibre reinforced PBT plastic |
| Adjusting range | 2–17 mbar |
| Pressure type | positive pressure |
| Lower housing material | AlSi 12 |
| Weight | 60 g |
| Safety class | 1 |
| Cover screw | 45 Ncm |
| Socket | 45 Ncm |
| Diaphragm material | NBR |
| Silicone-free | yes |
| Low gas release | yes |
| Adjustment method | hand wheel |
| Service life | 10 years |
| EU version | yes |
| Switching function | switches with falling pressure |
| Electrical connection | 4-pin plug, without socket |
| Construction type | diaphragm pressure switch |
| Switching element | change-over contact |
| Certification | RoHS compliant pursuant to 2002/95/EC |
133.80EUR
in stock · 3excl. VAT · import VAT and duties on delivery · shipping calculated at checkout
- Delivery to 97 countries
- Original manufacturer part
- Dispatch within 24 h for stocked items
Description
This is a diaphragm pressure switch from Kromschroder for monitoring positive pressure of gases and air. It has an adjustable range of 2 to 17 mbar and switches when the pressure falls. The unit is equipped with a change-over contact, a hand wheel for adjustment, and a 4-pin plug without socket. The body is made of glass fibre reinforced PBT plastic with an AlSi 12 lower housing and an NBR diaphragm, is silicone-free with low gas release. It has an Rp 1/4 internal thread, weighs 60 g, has safety class 1, protection class IP00, and meets RoHS compliance. The service life is 10 years and the cover screw and socket torque are both 45 Ncm.
Further details
| Approvals | CE-0085AQ0753; 2009/142/EC (GAD); 2014/35/EU (LVD); (EU) 2016/426 (GAR); EN 13611:2015+AC:2016; EN 1854:2010 |
|---|---|
| Gas type | natural gas, town gas, lpg (gaseous), flue gas, biogas (max. 0.1 %-by-vol. h2s) and air |
All specifications
| Connection thread | Rp 1/4 internal thread |
|---|---|
| Protection class (IP) | IP00 |
| Body material | glass fibre reinforced PBT plastic |
| Adjusting range | 2–17 mbar |
| Pressure type | positive pressure |
| Lower housing material | AlSi 12 |
| Weight | 60 g |
| Safety class | 1 |
| Cover screw | 45 Ncm |
| Socket | 45 Ncm |
| Diaphragm material | NBR |
| Silicone-free | yes |
| Low gas release | yes |
| Adjustment method | hand wheel |
| Service life | 10 years |
| EU version | yes |
| Switching function | switches with falling pressure |
| Electrical connection | 4-pin plug, without socket |
| Construction type | diaphragm pressure switch |
| Switching element | change-over contact |
| Certification | RoHS compliant pursuant to 2002/95/EC |
Part numbers
| SKU | 84448010 |
|---|---|
| Additional article | 624.214.240 |
| Model | DG17VC5-5W |
