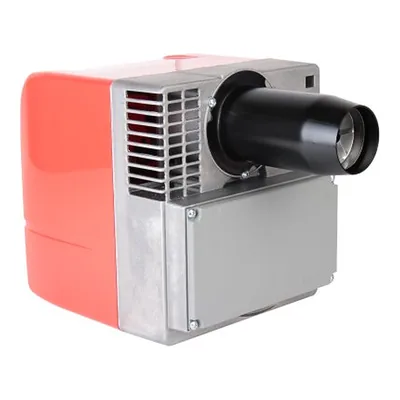

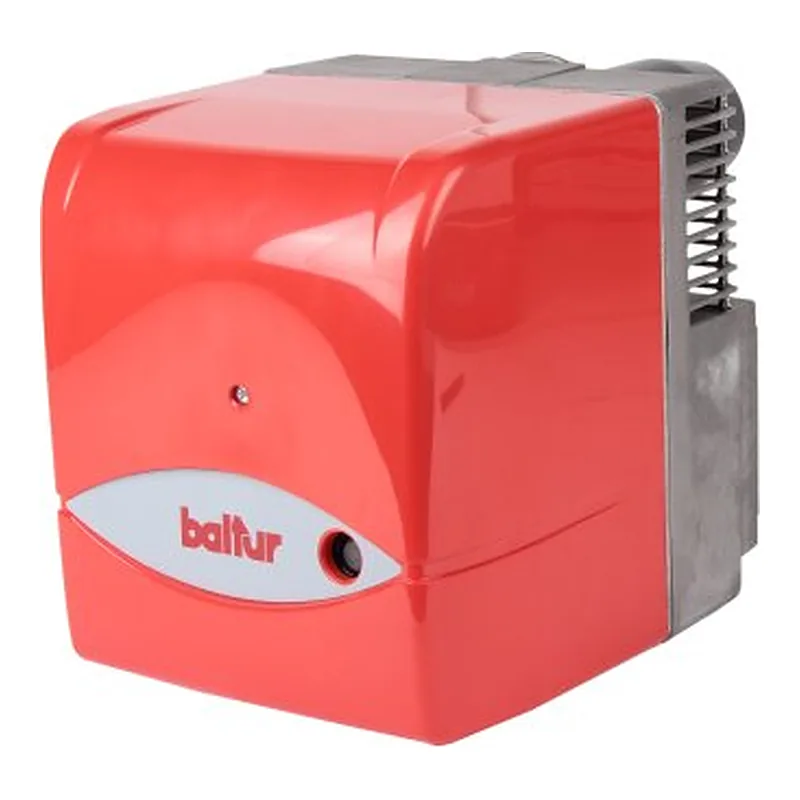

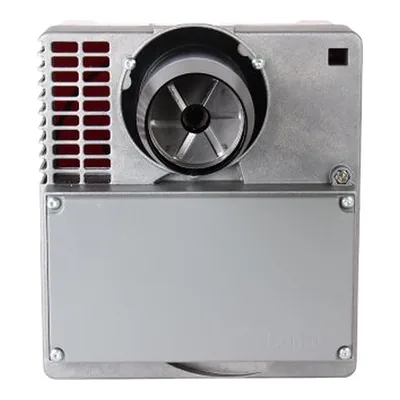

Baltur BTL 4 — spare parts
- Fuel
- Oil
- Output
- 26–56.1 kW
- Parts
- 12
- Versions
- 3
- Series
- BTL 4 · 4
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Baltur BTL 4 · 2
—on request
Control devices for Baltur BTL 4 · 2
—on request
—on request
Flame sensors for Baltur BTL 4 · 2
—on request
51.36 EURexcl. VAT · import VAT and duties on delivery
Burner pipes, flanges & connections for Baltur BTL 4 · 1
—on request
Cables for Baltur BTL 4 · 1
—on request
Control boxes for Baltur BTL 4 · 1
105.96 EURexcl. VAT · import VAT and duties on delivery
Flues & air ducts for Baltur BTL 4 · 1
—on request
Ignition transformers for Baltur BTL 4 · 1
Oil pumps for Baltur BTL 4 · 1
168.84 EURexcl. VAT · import VAT and duties on delivery
What is inside Baltur BTL 4
Components named in the manufacturer's documentation.
- DANFOSS BFP21L3 in stock
- QRB1B
- Danfoss BFP21L3L2
- LMO 14.111
- Siemens QRB1B
- Suntec ASV47C
Specifications
FuelOil
Output26–56.1 kW
Firing stagesSingle-stage
Fan motor power100 W
Supply voltage220 V
Power consumption150 W
Width246 mm
Height289 mm
Net weight12 kg
Protection class (IP)IP40

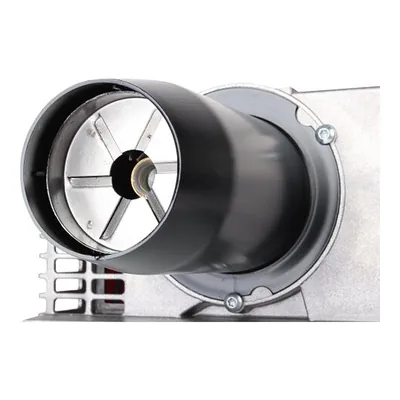

Flame tube length105 mm
Flame tube diameter80 mm
Flame tube typestandard
Back pressure (combustion chamber)0–1.3 mbar
Noise level64.2 dB
Overall dimensions41 x 24.6 x 28.9 cm
Delivery scopewith combustion head
Versions
BTL 435490010
BTL 4 H35490011
BTL 4 L20035490020
Other versions of this seriesBaltur BTL 4 · 4
Parts often differ between versions of one series: pick the version named on your rating plate.
- BTL 4
12 parts · 35490010 · 35490011 +1 - BTL 4 H
11 parts · 35490011 - BTL 4 L200
1 part · 35490020 - BTL 4 P
9 parts · 35500010
Questions about Baltur BTL 4 parts
Which burner components fit Baltur BTL 4?
These fit Baltur BTL 4: Baltur Nozzle Rod 0013030192; Baltur Equalizing Disc 0013030198. ↑
Which control devices fit Baltur BTL 4?
These fit Baltur BTL 4: Baltur Burner Control Unit 31184; Viessmann Furnace Automation 7818898. ↑
Which flame sensors fit Baltur BTL 4?
These fit Baltur BTL 4: Hansa Flame sensor 3069; Siemens Flame sensor QRB1B-A033B40B. ↑
Which burner pipes, flanges & connections fit Baltur BTL 4?
These fit Baltur BTL 4: Baltur Copper Fuel Tube 0013030197. ↑
Which cables fit Baltur BTL 4?
These fit Baltur BTL 4: Baltur Transformer Power Cable 0005130111. ↑
Which control boxes fit Baltur BTL 4?
These fit Baltur BTL 4: Siemens Burner control LMO14.111C2. ↑
