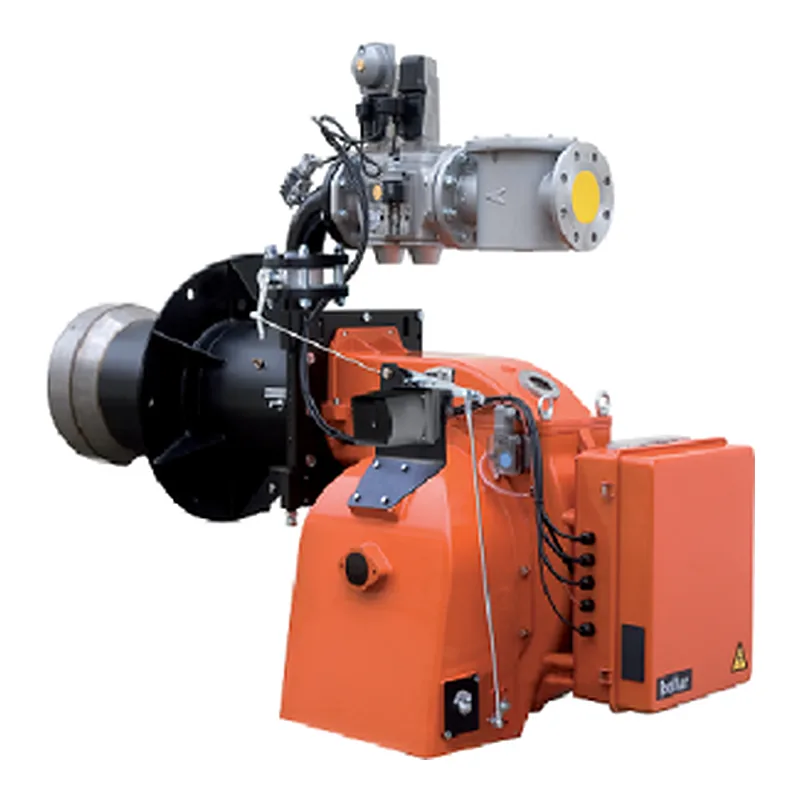

Baltur GI 500 MC — spare parts
- Fuel
- Gas
- Output
- 700–5000 kW
- Parts
- 13
- Factory code
- 66420010
- Series
- GI 500 · 2
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Baltur GI 500 MC · 5
—on request
—on request
—on request
—on request
Boiler filters, gaskets & seals for Baltur GI 500 MC · 3
—on request
—on request
—on request
Actuators for Baltur GI 500 MC · 1
633.06 EURexcl. VAT · import VAT and duties on delivery
Burner pipes, flanges & connections for Baltur GI 500 MC · 1
—on request
Ionization & ignition electrodes for Baltur GI 500 MC · 1
—on request
Pressure switches for Baltur GI 500 MC · 1
—on request
Sensors and switches for Baltur GI 500 MC · 1
—on request
What is inside Baltur GI 500 MC
Components named in the manufacturer's documentation.
- SIEMENS SQM40.281A20 in stock
- ELETTRODO BGN540LX
- ELETTRODO BGN540LX KANTAL D=3
- MOTORE TRIF. KW15 400/50 IE3
- PRESSOSTATO DUNGS LGW50A4
- TRASF.RE GAS 8KV-30MA 230/50
- VALV. FARFALLA DN80R FOR.
- DUNGS LGW50A4
- Siemens SQM40
Specifications
FuelGas
Output700–5000 kW
Fan motor power15000 W
Supply voltage380 V
Power consumption16000 W
Net weight270 kg
Protection class (IP)IP40
Flame tube length500 mm
Flame tube diameter366 mm
Back pressure (combustion chamber)0–22 mbar
Gas consumption70–503 m³/h
Noise level90.3 dB
Overall dimensions183 x 104 x 90 cm
Delivery scopewith combustion head
Other versions of this seriesBaltur GI 500 · 2
Parts often differ between versions of one series: pick the version named on your rating plate.
- GI 500 MC
13 parts · 66420010 - GI 500 ME
12 parts · 66410020
Questions about Baltur GI 500 MC parts
Which burner components fit Baltur GI 500 MC?
These fit Baltur GI 500 MC: Baltur Air damper 0012010132; Baltur Air damper 0012010133; Baltur Articulated Connection 0012010155; Baltur Articulated Connection 0012120160; Baltur Air Damper Shaft Holder 54056. ↑
Which boiler filters, gaskets & seals fit Baltur GI 500 MC?
These fit Baltur GI 500 MC: Baltur Ring Gasket 0005180087; Baltur Gasket 23124; Baltur Ring Gasket 23299. ↑
Which actuators fit Baltur GI 500 MC?
These fit Baltur GI 500 MC: Siemens Servo actuator SQM40.281A20. ↑
Which burner pipes, flanges & connections fit Baltur GI 500 MC?
These fit Baltur GI 500 MC: Baltur Nipple G1/4" 0005150098. ↑
Which ionization & ignition electrodes fit Baltur GI 500 MC?
These fit Baltur GI 500 MC: Baltur Ionization Electrode 0012140025. ↑
Which pressure switches fit Baltur GI 500 MC?
These fit Baltur GI 500 MC: Dungs Pressure switch 272361. ↑
