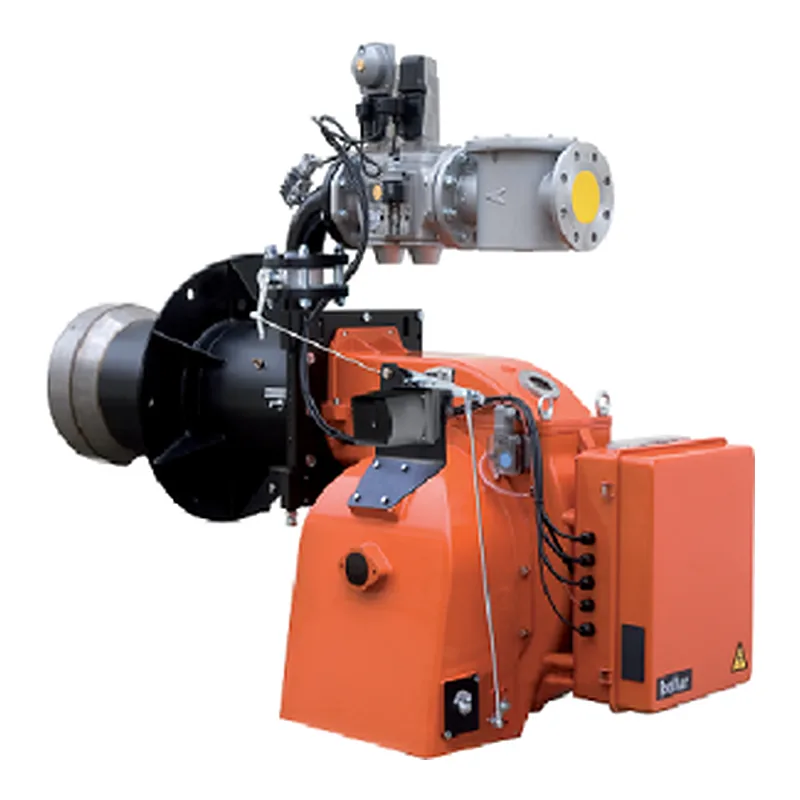

Baltur GI 500 ME — spare parts
- Fuel
- Gas
- Output
- 700–5000 kW
- Parts
- 12
- Factory code
- 66410020
- Series
- GI 500 · 2
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Boiler filters, gaskets & seals for Baltur GI 500 ME · 3
Burner components for Baltur GI 500 ME · 3
—on request
—on request
—on request
Actuators for Baltur GI 500 ME · 2
—on request
—on request
Burner pipes, flanges & connections for Baltur GI 500 ME · 2
—on request
—on request
Ionization & ignition electrodes for Baltur GI 500 ME · 1
—on request
Sensors and switches for Baltur GI 500 ME · 1
—on request
What is inside Baltur GI 500 ME
Components named in the manufacturer's documentation.
- Lamtec BT 320
- Lamtec STE 4.5 1,2 Нм
- Lamtec STE 4.5 3.0 Нм
Specifications
FuelGas
Output700–5000 kW
Fan motor power15000 W
Supply voltage380 V
Power consumption16000 W
Net weight270 kg
Protection class (IP)IP40
Flame tube length500 mm
Flame tube diameter366 mm
Flame tube typestandard
Back pressure (combustion chamber)0–22 mbar
Gas consumption70–503 m³/h
Noise level90.3 dB
Overall dimensions183 x 102.5 x 90 cm
Delivery scopewith combustion head
Other versions of this seriesBaltur GI 500 · 2
Parts often differ between versions of one series: pick the version named on your rating plate.
- GI 500 MC
13 parts · 66420010 - GI 500 ME
12 parts · 66410020
Questions about Baltur GI 500 ME parts
Which boiler filters, gaskets & seals fit Baltur GI 500 ME?
These fit Baltur GI 500 ME: Baltur Ring Gasket 0005180087; Baltur Gasket 23124; Baltur Ring Gasket 23299. ↑
Which burner components fit Baltur GI 500 ME?
These fit Baltur GI 500 ME: Baltur Air damper 0012010132; Baltur Air damper 0012010133; Baltur Articulated Connection 0012010155. ↑
Which actuators fit Baltur GI 500 ME?
These fit Baltur GI 500 ME: Baltur Actuator 0005040166; Baltur Actuator 0005040167. ↑
Which burner pipes, flanges & connections fit Baltur GI 500 ME?
These fit Baltur GI 500 ME: Baltur Nipple G1/4" 0005150098; Baltur Nipple 0020040004. ↑
Which ionization & ignition electrodes fit Baltur GI 500 ME?
These fit Baltur GI 500 ME: Baltur Ionization Electrode 0012140025. ↑
Which sensors and switches fit Baltur GI 500 ME?
These fit Baltur GI 500 ME: Baltur Thermal Relay 0005110128. ↑
