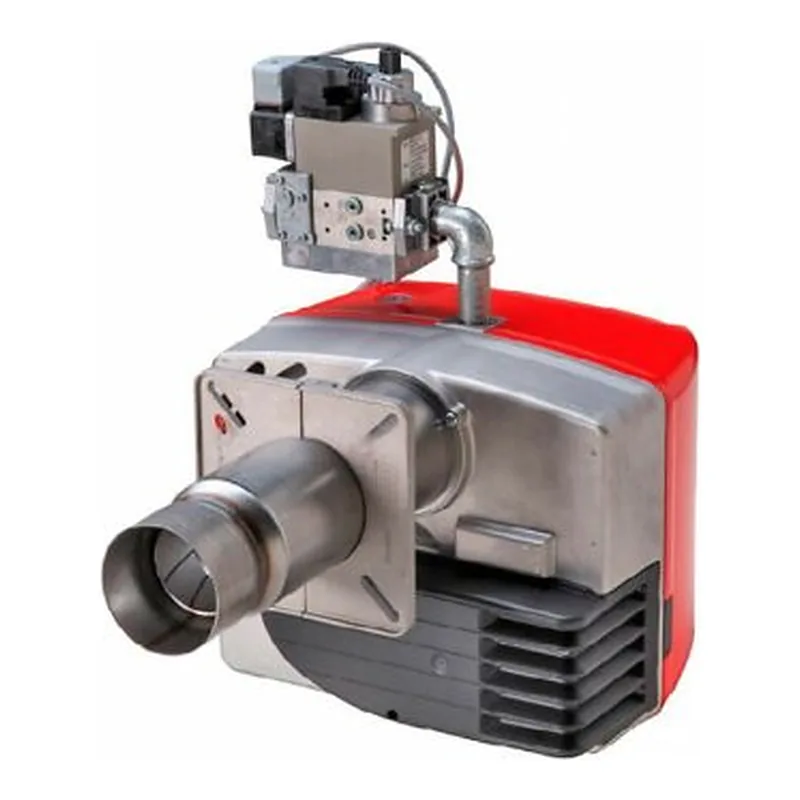

CIB Unigas NG200 M-.MD.L.RU.A.1.25 — gas burner, photo 1

CIB Unigas NG200 M-.MD.L.RU.A.1.25 — spare parts

Fuel
Gas
Output
42–200 kW
Parts
11

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Actuators for CIB Unigas NG200 M-.MD.L.RU.A.1.25 · 3

Burner components for CIB Unigas NG200 M-.MD.L.RU.A.1.25 · 3

Ionization & ignition electrodes for CIB Unigas NG200 M-.MD.L.RU.A.1.25 · 2

Burners for CIB Unigas NG200 M-.MD.L.RU.A.1.25 · 1

Ignition transformers for CIB Unigas NG200 M-.MD.L.RU.A.1.25 · 1

Pressure switches for CIB Unigas NG200 M-.MD.L.RU.A.1.25 · 1

Specifications

FuelGas
Output42–200 kW
Gas connectionRp 1"
Fan motor power180 W
Supply voltage220 V
Power consumption480 W
Net weight20 kg
Protection class (IP)IP40
Flame tube length270 mm
Flame tube diameter117 mm
Flame tube typeextended
Back pressure (combustion chamber)-1–5 mbar
Gas consumption4.4–21 m³/h
Gas train pressure0.62–14.85 mbar
Operating temperature-10–50 °C
Overall dimensions66 x 37.4 x 56.5 cm
Delivery scopewith combustion head, with gas train

Other versions of this seriesCIB Unigas NG200 · 30

Parts often differ between versions of one series: pick the version named on your rating plate.

All 30 versions

Questions about CIB Unigas NG200 M-.MD.L.RU.A.1.25 parts

Which actuators fit CIB Unigas NG200 M-.MD.L.RU.A.1.25?

These fit CIB Unigas NG200 M-.MD.L.RU.A.1.25: CIB Unigas Actuator 2480057; CIB Unigas Actuator 2480074; CIB Unigas Actuator TESTA NG200..L C/ELETTR.PREMON. 3501850. ↑

Which burner components fit CIB Unigas NG200 M-.MD.L.RU.A.1.25?

These fit CIB Unigas NG200 M-.MD.L.RU.A.1.25: CIB Unigas Cover 1011807; CIB Unigas Gas Manifold 2190262; CIB Unigas Combustion Head NG 200 L 30600M3. ↑

Which ionization & ignition electrodes fit CIB Unigas NG200 M-.MD.L.RU.A.1.25?

These fit CIB Unigas NG200 M-.MD.L.RU.A.1.25: Lamborghini Ionization Electrode 04043090; Lamborghini Ignition Electrode 04043110. ↑

Which burners fit CIB Unigas NG200 M-.MD.L.RU.A.1.25?

These fit CIB Unigas NG200 M-.MD.L.RU.A.1.25: CIB Unigas Burner tube 30900H7. ↑

Which ignition transformers fit CIB Unigas NG200 M-.MD.L.RU.A.1.25?

These fit CIB Unigas NG200 M-.MD.L.RU.A.1.25: CIB Unigas Ignition transformer 2170138. ↑

Which pressure switches fit CIB Unigas NG200 M-.MD.L.RU.A.1.25?

These fit CIB Unigas NG200 M-.MD.L.RU.A.1.25: CIB Unigas Pressure switch 2160053. ↑
