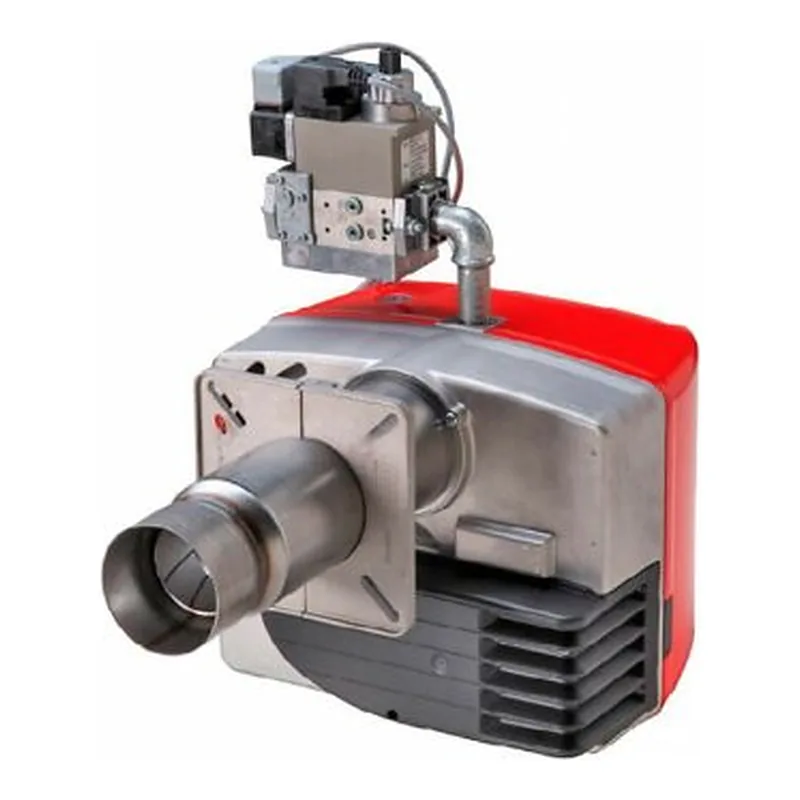

CIB Unigas NG200 M- — spare parts
- Fuel
- Gas
- Output
- 42–200 kW
- Parts
- 12
- Series
- NG200 · 30
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for CIB Unigas NG200 M- · 4
—on request
—on request
—on request
Actuators for CIB Unigas NG200 M- · 2
—on request
—on request
Ionization & ignition electrodes for CIB Unigas NG200 M- · 2
—on request
—on request
Burner pipes, flanges & connections for CIB Unigas NG200 M- · 1
—on request
Burners for CIB Unigas NG200 M- · 1
—on request
Ignition transformers for CIB Unigas NG200 M- · 1
—on request
Pressure switches for CIB Unigas NG200 M- · 1
—on request
Specifications
FuelGas
Output42–200 kW
Gas connectionRp 1"
Fan motor power180 W
Supply voltage220 V
Power consumption480 W
Net weight20 kg
Protection class (IP)IP40
Flame tube length170 mm
Flame tube diameter117 mm
Flame tube typestandard
Back pressure (combustion chamber)-1–5 mbar
Gas consumption4.4–21 m³/h
Gas train pressure0.62–14.85 mbar
Operating temperature-10–50 °C
Overall dimensions56 x 37.4 x 56.5 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesCIB Unigas NG200 · 30
Parts often differ between versions of one series: pick the version named on your rating plate.
- NG200 M-
12 parts - NG200 M-.AB.L.RU.A.0.20
11 parts - NG200 M-.AB.L.RU.A.0.25
11 parts - NG200 M-.AB.L.RU.A.1.20
11 parts - NG200 M-.AB.L.RU.A.1.25
11 parts - NG200 M-.AB.S.RU.A.0.15
11 parts - NG200 M-.AB.S.RU.A.0.20
11 parts - NG200 M-.AB.S.RU.A.0.25
11 parts - NG200 M-.AB.S.RU.A.1.25
11 parts - NG200 M-.AB.S.RU.A.7.15
11 parts - NG200 M-.AB.S.RU.A.7.20
11 parts - NG200 M-.AB.S.RU.A.7.25
11 parts
All 30 versions
- NG200 M-
12 parts - NG200 M-.AB.L.RU.A.0.20
11 parts - NG200 M-.AB.L.RU.A.0.25
11 parts - NG200 M-.AB.L.RU.A.1.20
11 parts - NG200 M-.AB.L.RU.A.1.25
11 parts - NG200 M-.AB.S.RU.A.0.15
11 parts - NG200 M-.AB.S.RU.A.0.20
11 parts - NG200 M-.AB.S.RU.A.0.25
11 parts - NG200 M-.AB.S.RU.A.1.25
11 parts - NG200 M-.AB.S.RU.A.7.15
11 parts - NG200 M-.AB.S.RU.A.7.20
11 parts - NG200 M-.AB.S.RU.A.7.25
11 parts - NG200 M-.MD.L.RU.A.0.25
11 parts - NG200 M-.MD.L.RU.A.1.25
11 parts - NG200 M-.PR.L.RU.A.0.25
11 parts - NG200 M-.PR.L.RU.A.1.25
11 parts - NG200 M-.PR.S.RU.A.0.20
11 parts - NG200 M-.PR.S.RU.A.0.25
11 parts - NG200 M-.PR.S.RU.A.7.20
11 parts - NG200 M-.PR.S.RU.A.7.25
11 parts - NG200 M-.TN.L.RU.A.0.20
12 parts - NG200 M-.TN.L.RU.A.0.25
12 parts - NG200 M-.TN.L.RU.A.1.20
12 parts - NG200 M-.TN.L.RU.A.1.25
12 parts - NG200 M-.TN.S.RU.A.0.20
12 parts · 02601094128 - NG200 M-.TN.S.RU.A.0.25
12 parts - NG200 M-.TN.S.RU.A.1.20
12 parts - NG200 M-.TN.S.RU.A.1.25
12 parts - NG200 M-.TN.S.RU.A.7.20
12 parts - NG200 M-.TN.S.RU.A.7.25
12 parts
Questions about CIB Unigas NG200 M- parts
Which burner components fit CIB Unigas NG200 M-?
These fit CIB Unigas NG200 M-: CIB Unigas Cover 1011807; CIB Unigas Gas Manifold 2190262; CIB Unigas Combustion Head NG 200 S 30600M2; CIB Unigas Combustion Head with Electrodes 3501849. ↑
Which actuators fit CIB Unigas NG200 M-?
These fit CIB Unigas NG200 M-: CIB Unigas Actuator 2480057; CIB Unigas Actuator 2480074. ↑
Which ionization & ignition electrodes fit CIB Unigas NG200 M-?
These fit CIB Unigas NG200 M-: Lamborghini Ionization Electrode 04043090; Lamborghini Ignition Electrode 04043110. ↑
Which burner pipes, flanges & connections fit CIB Unigas NG200 M-?
These fit CIB Unigas NG200 M-: CIB Unigas Gas Manifold 2190340. ↑
Which burners fit CIB Unigas NG200 M-?
These fit CIB Unigas NG200 M-: CIB Unigas Burner Tube NG200 STD 30900H6. ↑
Which ignition transformers fit CIB Unigas NG200 M-?
These fit CIB Unigas NG200 M-: CIB Unigas Ignition transformer 2170138. ↑
