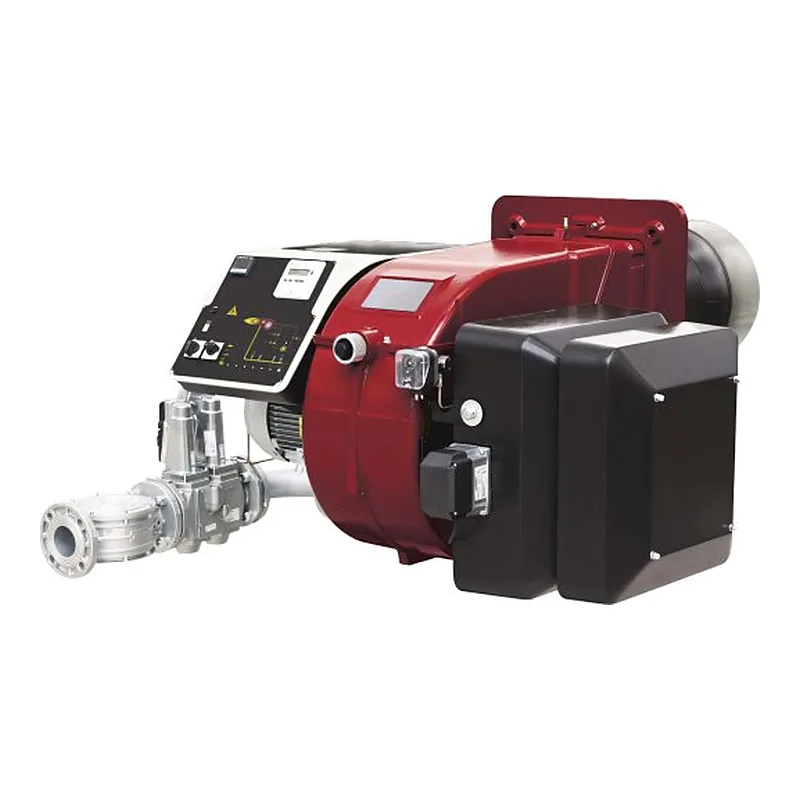

CIB Unigas R520A M-.MD.S.RU.A.1.100.EA — gas burner, photo 1

CIB Unigas R520A M-.MD.S.RU.A.1.100.EA — spare parts

Fuel
Gas
Output
1000–6400 kW
Parts
1

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Motors for CIB Unigas R520A M-.MD.S.RU.A.1.100.EA · 1

Specifications

FuelGas
Output1000–6400 kW
Fan motor power15000 W
Power consumption16500 W
Net weight340 kg
Protection class (IP)IP40
Flame tube length530 mm
Flame tube diameter400 mm
Flame tube typestandard
Back pressure (combustion chamber)0–20 mbar
Gas consumption106–677 m³/h
Gas train pressure5–76 mbar
Noise level85 dB
Operating temperature-10–50 °C
Overall dimensions168.3 x 172.6 x 87.4 cm
Delivery scopewith combustion head, with gas train

Other versions of this seriesCIB Unigas R520A · 6

Parts often differ between versions of one series: pick the version named on your rating plate.

Questions about CIB Unigas R520A M-.MD.S.RU.A.1.100.EA parts

Which motors fit CIB Unigas R520A M-.MD.S.RU.A.1.100.EA?

These fit CIB Unigas R520A M-.MD.S.RU.A.1.100.EA: CIB Unigas Electric Motor 21800C2. ↑
