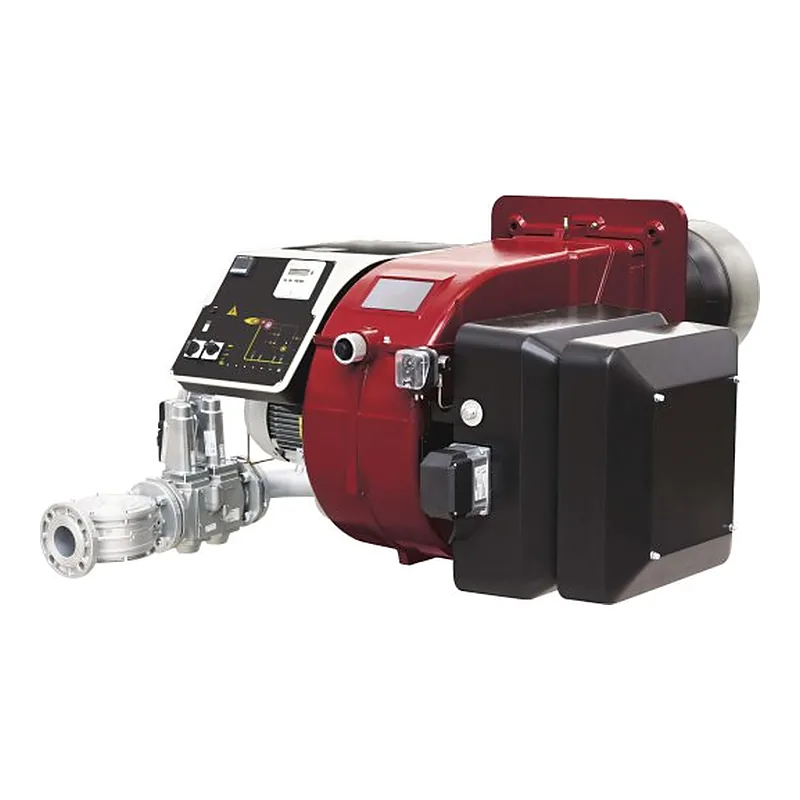

CIB Unigas R520A M- — spare parts
- Fuel
- Gas
- Output
- 1000–6400 kW
- Parts
- 3
- Series
- R520A · 6
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for CIB Unigas R520A M- · 1
Gas filters for CIB Unigas R520A M- · 1
—on request
Motors for CIB Unigas R520A M- · 1
—on request
Specifications
FuelGas
Output1000–6400 kW
Gas connectionRp 2"
Fan motor power15000 W
Power consumption16500 W
Net weight340 kg
Protection class (IP)IP40
Flame tube length530 mm
Flame tube diameter400 mm
Flame tube typestandard
Back pressure (combustion chamber)0–20 mbar
Gas consumption106–677 m³/h
Gas train pressure5–76 mbar
Noise level85 dB
Operating temperature-10–50 °C
Overall dimensions168.3 x 172.6 x 87.4 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesCIB Unigas R520A · 6
Parts often differ between versions of one series: pick the version named on your rating plate.
- R520A M-
3 parts - R520A M-.MD.S.RU.A.1.50.ES
2 parts - R520A M-.MD.S.RU.A.1.65.ES
2 parts - R520A M-.MD.S.RU.A.1.80.ES
2 parts - R520A M-.MD.S.RU.A.1.100.EA
1 part - R520A M-.MD.S.RU.A.1.100.ES
2 parts
Questions about CIB Unigas R520A M- parts
Which burner components fit CIB Unigas R520A M-?
These fit CIB Unigas R520A M-: CIB Unigas Combustion Head Cone 3240022. ↑
Which gas filters fit CIB Unigas R520A M-?
These fit CIB Unigas R520A M-: CIB Unigas Gas filter 2090112. ↑
Which motors fit CIB Unigas R520A M-?
These fit CIB Unigas R520A M-: CIB Unigas Electric Motor 21800C2. ↑
