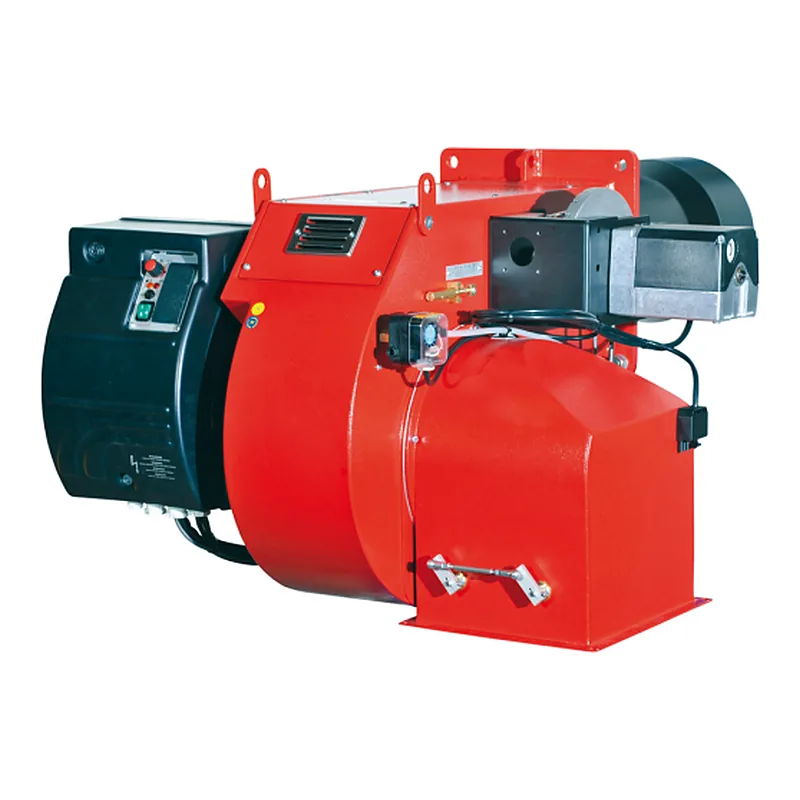

Ecoflam BLU TS 4000.1 LN PRE TM HT BT330 — spare parts
- Fuel
- Gas
- Output
- 875–3900 kW
- Parts
- 12
- Factory code
- 3146818
- Series
- BLU TS 4000.1 · 11
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Ecoflam BLU TS 4000.1 LN PRE TM HT BT330 · 6
—on request
—on request
—on request
—on request
—on request
Actuators for Ecoflam BLU TS 4000.1 LN PRE TM HT BT330 · 1
—on request
Blast tubes & combustion heads for Ecoflam BLU TS 4000.1 LN PRE TM HT BT330 · 1
—on request
Boiler filters, gaskets & seals for Ecoflam BLU TS 4000.1 LN PRE TM HT BT330 · 1
—on request
Burner pipes, flanges & connections for Ecoflam BLU TS 4000.1 LN PRE TM HT BT330 · 1
—on request
Control boxes for Ecoflam BLU TS 4000.1 LN PRE TM HT BT330 · 1
—on request
Electronic control boards (PCB) for Ecoflam BLU TS 4000.1 LN PRE TM HT BT330 · 1
—on request
Specifications
FuelGas
Output875–3900 kW
Fan motor power7500 W
Power consumption9000 W
Net weight249.5 kg
Protection class (IP)IP55
Flame tube length445 mm
Flame tube diameter320 mm
Flame tube typestandard
Back pressure (combustion chamber)0–15 mbar
Gas consumption92.4–412 m³/h
Noise level88.3 dB
Operating temperature-10–60 °C
Overall dimensions81 x 94.1 x 63.1 cm
Delivery scopewith combustion head, without gas train
Other versions of this seriesEcoflam BLU TS 4000.1 · 11
Parts often differ between versions of one series: pick the version named on your rating plate.
- BLU TS 4000.1 LN PRE TC HT
12 parts · 3145345 - BLU TS 4000.1 LN PRE TC HT BT3
12 parts · 3146928 - BLU TS 4000.1 LN PRE TL HT
12 parts · 3145347 - BLU TS 4000.1 LN PRE TL HT BT3
12 parts · 3146929 - BLU TS 4000.1 LN PRE TM HT
12 parts · 3145346 - BLU TS 4000.1 LN PRE TM HT BT330
12 parts · 3146818 - BLU TS 4000.1 PR TC HT S
12 parts · 3145026 - BLU TS 4000.1 PR TM HT
12 parts · 3145498 - BLU TS 4000.1 PRE TC HT
12 parts · 3145524 - BLU TS 4000.1 PRE TL HT
12 parts · 3145526 - BLU TS 4000.1 PRE TM HT
12 parts · 3145525
Questions about Ecoflam BLU TS 4000.1 LN PRE TM HT BT330 parts
Which burner components fit Ecoflam BLU TS 4000.1 LN PRE TM HT BT330?
These fit Ecoflam BLU TS 4000.1 LN PRE TM HT BT330: Ecoflam Adjustment Rod 65320242; Ecoflam Adjustment Rod 65320243; Ecoflam Diffuser 65321608; Ecoflam Gas Damper 65325510; Elco Cover 65324765; Elco COVER NIPPLE 65324766. ↑
Which actuators fit Ecoflam BLU TS 4000.1 LN PRE TM HT BT330?
These fit Ecoflam BLU TS 4000.1 LN PRE TM HT BT330: Elco Actuator 65324803. ↑
Which blast tubes & combustion heads fit Ecoflam BLU TS 4000.1 LN PRE TM HT BT330?
These fit Ecoflam BLU TS 4000.1 LN PRE TM HT BT330: Elco Combustion Head 65321666. ↑
Which boiler filters, gaskets & seals fit Ecoflam BLU TS 4000.1 LN PRE TM HT BT330?
These fit Ecoflam BLU TS 4000.1 LN PRE TM HT BT330: Ecoflam Flange Gasket 65321125. ↑
Which burner pipes, flanges & connections fit Ecoflam BLU TS 4000.1 LN PRE TM HT BT330?
These fit Ecoflam BLU TS 4000.1 LN PRE TM HT BT330: Elco Gas Elbow 65321664. ↑
Which control boxes fit Ecoflam BLU TS 4000.1 LN PRE TM HT BT330?
These fit Ecoflam BLU TS 4000.1 LN PRE TM HT BT330: Elco Control unit 65310418. ↑
