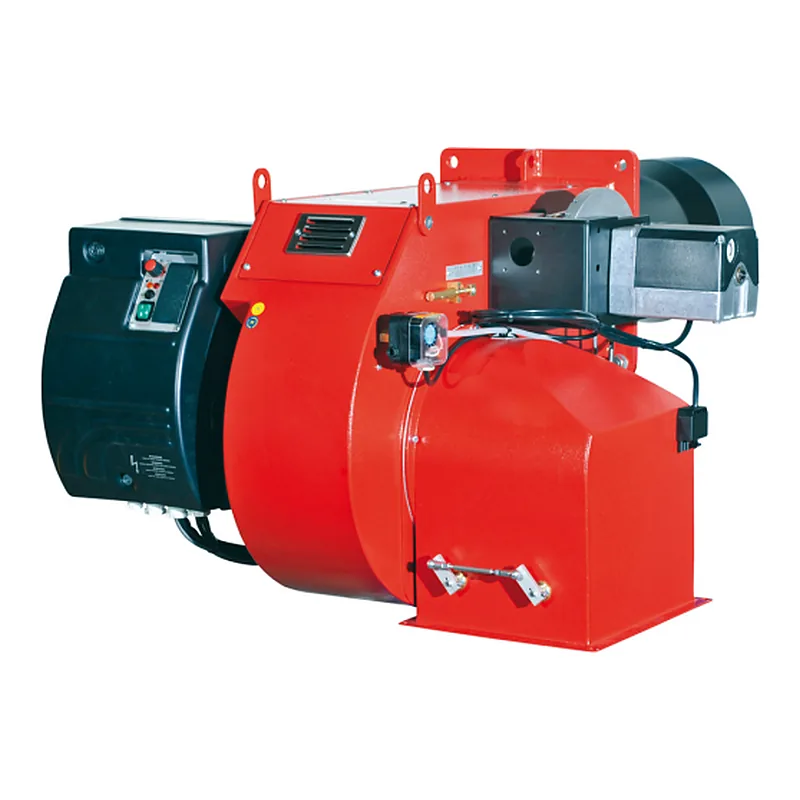

Ecoflam BLU TS 4000.1 PR TM HT — spare parts
- Fuel
- Gas
- Output
- 875–3900 kW
- Parts
- 12
- Factory code
- 3145498
- Series
- BLU TS 4000.1 · 11
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Ecoflam BLU TS 4000.1 PR TM HT · 5
—on request
—on request
—on request
—on request
Blast tubes & combustion heads for Ecoflam BLU TS 4000.1 PR TM HT · 2
—on request
—on request
Boiler components for Ecoflam BLU TS 4000.1 PR TM HT · 1
—on request
Boiler filters, gaskets & seals for Ecoflam BLU TS 4000.1 PR TM HT · 1
—on request
Burner pipes, flanges & connections for Ecoflam BLU TS 4000.1 PR TM HT · 1
—on request
Flues & air ducts for Ecoflam BLU TS 4000.1 PR TM HT · 1
—on request
Sensors and switches for Ecoflam BLU TS 4000.1 PR TM HT · 1
—on request
Specifications
FuelGas
Output875–3900 kW
Fan motor power7500 W
Power consumption9000 W
Net weight249.5 kg
Protection class (IP)IP55
Flame tube length445 mm
Flame tube diameter320 mm
Flame tube typestandard
Back pressure (combustion chamber)0–15 mbar
Gas consumption102.5–456.8 m³/h
Noise level88.3 dB
Operating temperature-10–60 °C
Overall dimensions81 x 94.1 x 63.1 cm
Delivery scopewith combustion head, without gas train
Other versions of this seriesEcoflam BLU TS 4000.1 · 11
Parts often differ between versions of one series: pick the version named on your rating plate.
- BLU TS 4000.1 LN PRE TC HT
12 parts · 3145345 - BLU TS 4000.1 LN PRE TC HT BT3
12 parts · 3146928 - BLU TS 4000.1 LN PRE TL HT
12 parts · 3145347 - BLU TS 4000.1 LN PRE TL HT BT3
12 parts · 3146929 - BLU TS 4000.1 LN PRE TM HT
12 parts · 3145346 - BLU TS 4000.1 LN PRE TM HT BT330
12 parts · 3146818 - BLU TS 4000.1 PR TC HT S
12 parts · 3145026 - BLU TS 4000.1 PR TM HT
12 parts · 3145498 - BLU TS 4000.1 PRE TC HT
12 parts · 3145524 - BLU TS 4000.1 PRE TL HT
12 parts · 3145526 - BLU TS 4000.1 PRE TM HT
12 parts · 3145525
Questions about Ecoflam BLU TS 4000.1 PR TM HT parts
Which burner components fit Ecoflam BLU TS 4000.1 PR TM HT?
These fit Ecoflam BLU TS 4000.1 PR TM HT: Ecoflam Adjustment Rod 65320242; Ecoflam Adjustment Rod 65320243; Ecoflam Diffuser 65321608; Ecoflam Fusible Link Nest 65322181; Elco Red cover 65320678. ↑
Which blast tubes & combustion heads fit Ecoflam BLU TS 4000.1 PR TM HT?
These fit Ecoflam BLU TS 4000.1 PR TM HT: Elco Combustion Head 65324305; Elco Combustion Head 65325360. ↑
Which boiler components fit Ecoflam BLU TS 4000.1 PR TM HT?
These fit Ecoflam BLU TS 4000.1 PR TM HT: Ecoflam Sight Glass 65320487. ↑
Which boiler filters, gaskets & seals fit Ecoflam BLU TS 4000.1 PR TM HT?
These fit Ecoflam BLU TS 4000.1 PR TM HT: Ecoflam Flange Gasket 65321125. ↑
Which burner pipes, flanges & connections fit Ecoflam BLU TS 4000.1 PR TM HT?
These fit Ecoflam BLU TS 4000.1 PR TM HT: Elco Gas Elbow 65321664. ↑
Which flues & air ducts fit Ecoflam BLU TS 4000.1 PR TM HT?
These fit Ecoflam BLU TS 4000.1 PR TM HT: Ecoflam Fire tube 65320441. ↑
