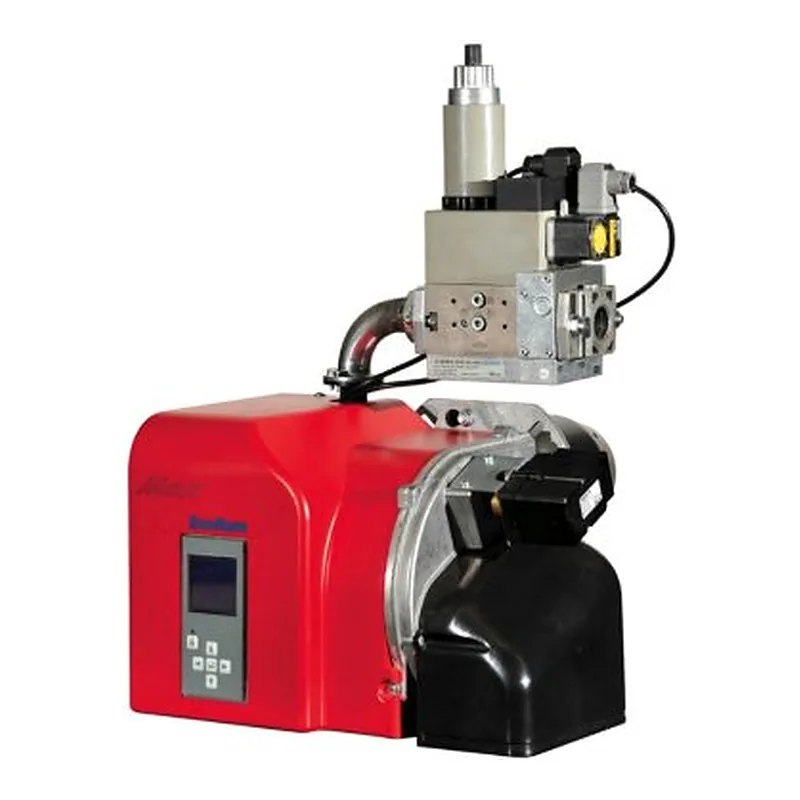

Ecoflam MAX GAS 170 LN PAB TC GN — spare parts
- Fuel
- Gas
- Output
- 55–170 kW
- Parts
- 11
- Factory code
- 3142782
- Series
- MAX GAS 170 · 23
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Ecoflam MAX GAS 170 LN PAB TC GN · 5
—on request
—on request
—on request
—on request
Burner pipes, flanges & connections for Ecoflam MAX GAS 170 LN PAB TC GN · 2
—on request
—on request
Ionization & ignition electrodes for Ecoflam MAX GAS 170 LN PAB TC GN · 2
—on request
—on request
Actuators for Ecoflam MAX GAS 170 LN PAB TC GN · 1
—on request
Wiring, cables & electrical components for Ecoflam MAX GAS 170 LN PAB TC GN · 1
—on request
Specifications
FuelGas
Output55–170 kW
Gas connectionRp 1" / Rp 3/4"
Firing stagesTwo-stage
Fan motor power200 W
Supply voltage220 V
Power consumption380 W
Net weight11.5 kg
Protection class (IP)IP40
Flame tube length180 mm
Flame tube diameter125 mm
Flame tube typeshort
Back pressure (combustion chamber)0–5 mbar
Gas consumption5.53–17.6 m³/h
Noise level70 dB
Operating temperature-10–60 °C
Overall dimensions48.1 x 43.5 x 26.3 cm
Delivery scopewith combustion head
Other versions of this seriesEcoflam MAX GAS 170 · 23
Parts often differ between versions of one series: pick the version named on your rating plate.
- MAX GAS 170 E PR TC
12 parts · 3146324 - MAX GAS 170 E PR TL
12 parts · 3146325 - MAX GAS 170 LN P TC HT TW
12 parts · 3141815 - MAX GAS 170 LN P TC TW
11 parts · 3142749 - MAX GAS 170 LN PAB TC GN
11 parts · 3142782 - MAX GAS 170 LN PAB TC GN MB-ZRDLE 405
11 parts · 3142782-3123960-3122300 - MAX GAS 170 LN PAB TC GN MB-ZRDLE 407
11 parts · 3142782-3123961 - MAX GAS 170 LN PAB TC GN MB-ZRDLE 410
11 parts · 3142782-3123962 - MAX GAS 170 LN PAB TC MET.SR
11 parts · 3123956 · 3123956-3123960-3122302-3122300 +2 - MAX GAS 170 LN PAB TL GN (TW) SR
11 parts · 3142783 - MAX GAS 170 LN PAB TL MET.SR
11 parts · 3123957 · 3123957-3123960-3122300-3122302 +2 - MAX GAS 170 LN PAB TL (TW)
11 parts · 3142783-3123960-3122300 · 3142783-3123961 +1
All 23 versions
- MAX GAS 170 E PR TC
12 parts · 3146324 - MAX GAS 170 E PR TL
12 parts · 3146325 - MAX GAS 170 LN P TC HT TW
12 parts · 3141815 - MAX GAS 170 LN P TC TW
11 parts · 3142749 - MAX GAS 170 LN PAB TC GN
11 parts · 3142782 - MAX GAS 170 LN PAB TC GN MB-ZRDLE 405
11 parts · 3142782-3123960-3122300 - MAX GAS 170 LN PAB TC GN MB-ZRDLE 407
11 parts · 3142782-3123961 - MAX GAS 170 LN PAB TC GN MB-ZRDLE 410
11 parts · 3142782-3123962 - MAX GAS 170 LN PAB TC MET.SR
11 parts · 3123956 · 3123956-3123960-3122302-3122300 +2 - MAX GAS 170 LN PAB TL GN (TW) SR
11 parts · 3142783 - MAX GAS 170 LN PAB TL MET.SR
11 parts · 3123957 · 3123957-3123960-3122300-3122302 +2 - MAX GAS 170 LN PAB TL (TW)
11 parts · 3142783-3123960-3122300 · 3142783-3123961 +1 - MAX GAS 170 LN PR TC GN
12 parts · 3143282 - MAX GAS 170 P TC HT CV TW
12 parts · 3146741 - MAX GAS 170 P TC HT CV TW MBDLE405
12 parts · 3146741-3123560-3122300 - MAX GAS 170 P TL TW LN
2 parts · 3142750 - MAX GAS 170 P TL TW LN MB-DLE 405
1 part · 3142750-3123560-3122300-3122302 - MAX GAS 170 P TL TW LN MB-DLE 407
1 part · 3142750-3123525 - MAX GAS 170 P TL TW LN MB-DLE 410
1 part · 3142750-3123947 - MAX GAS 170 P TW TL HT CV
12 parts · 3141830 - MAX GAS 170 P TW TL HT CV MBDLE405
12 parts · 3141830-3123560-3122300 - MAX GAS 170 PAB
11 parts · 3143956 - MAX GAS 170 PR TL MET
12 parts · 3122494
Questions about Ecoflam MAX GAS 170 LN PAB TC GN parts
Which burner components fit Ecoflam MAX GAS 170 LN PAB TC GN?
These fit Ecoflam MAX GAS 170 LN PAB TC GN: Ecoflam Adjustment Rod 65320215; Ecoflam Equalizing Disc 65320823; Ecoflam Gas head 65321612; Ecoflam Gas Head Cover 65321613; Ecoflam Diffuser 65321614. ↑
Which burner pipes, flanges & connections fit Ecoflam MAX GAS 170 LN PAB TC GN?
These fit Ecoflam MAX GAS 170 LN PAB TC GN: Ecoflam Gas Elbow 65321538; Ecoflam Nipple Set 65324718. ↑
Which ionization & ignition electrodes fit Ecoflam MAX GAS 170 LN PAB TC GN?
These fit Ecoflam MAX GAS 170 LN PAB TC GN: Ecoflam Ionization Electrode 65325242; Ecoflam Ignition Electrode 65325243. ↑
Which actuators fit Ecoflam MAX GAS 170 LN PAB TC GN?
These fit Ecoflam MAX GAS 170 LN PAB TC GN: Siemens Actuator SQN75.224A21. ↑
Which wiring, cables & electrical components fit Ecoflam MAX GAS 170 LN PAB TC GN?
These fit Ecoflam MAX GAS 170 LN PAB TC GN: Cogema Network Interference Filter 72062. ↑
