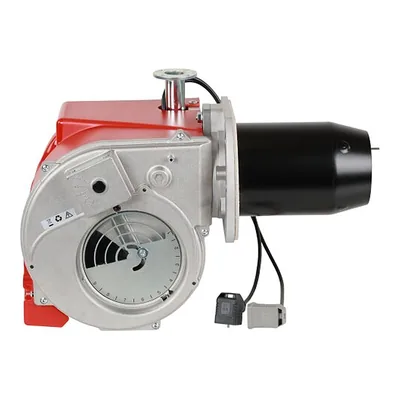

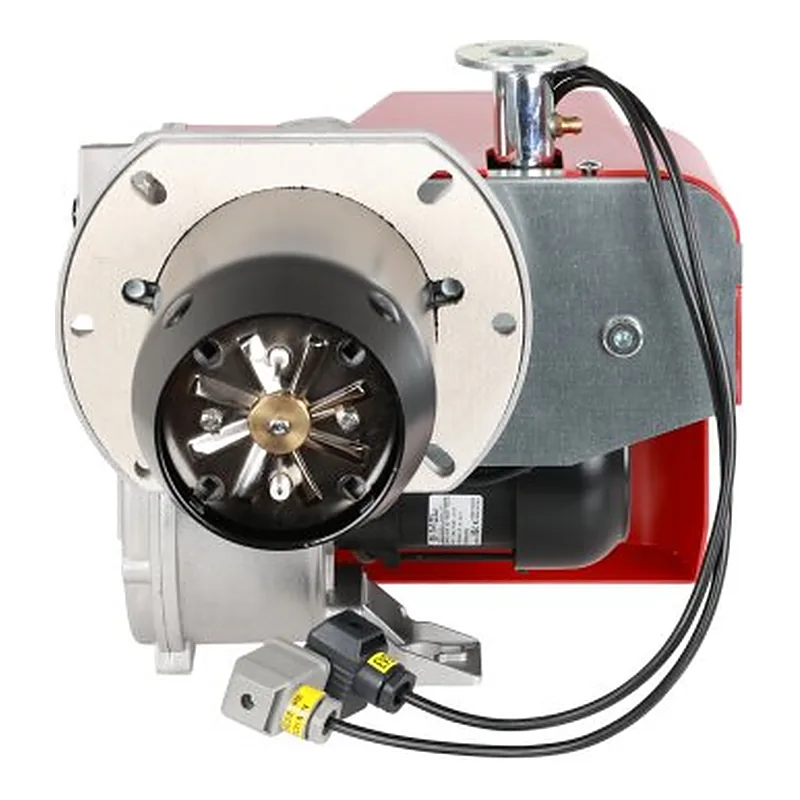

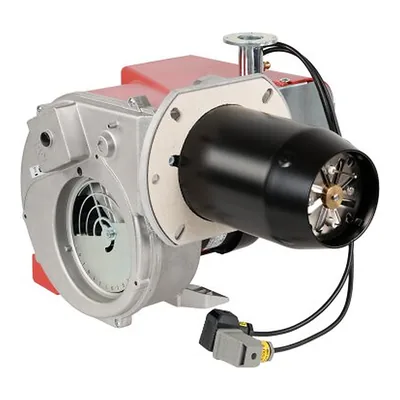

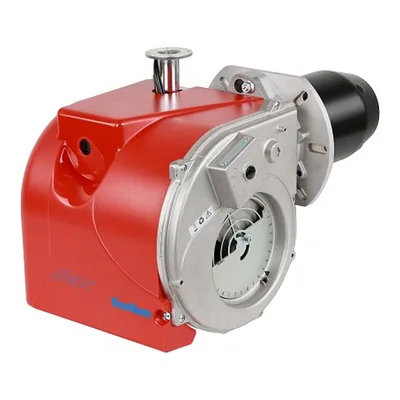

Ecoflam MAX GAS 170 P TC HT CV TW — spare parts
- Fuel
- Gas
- Output
- 55–175 kW
- Parts
- 12
- Factory code
- 3146741
- Series
- MAX GAS 170 · 23
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Ecoflam MAX GAS 170 P TC HT CV TW · 4
—on request
—on request
—on request
Ionization & ignition electrodes for Ecoflam MAX GAS 170 P TC HT CV TW · 3
—on request
—on request
—on request
Burner pipes, flanges & connections for Ecoflam MAX GAS 170 P TC HT CV TW · 2
—on request
—on request
Burners for Ecoflam MAX GAS 170 P TC HT CV TW · 1
—on request
Control box terminals for Ecoflam MAX GAS 170 P TC HT CV TW · 1
—on request
Ignition cables and connectors for Ecoflam MAX GAS 170 P TC HT CV TW · 1
—on request
What is inside Ecoflam MAX GAS 170 P TC HT CV TW
Components named in the manufacturer's documentation.
- Y12
- Y13
- Ecoflam E-BCU Ecoflam
- danfoss / cofi danfoss / cofi
Specifications
FuelGas
Output55–175 kW
Firing stagesSingle-stage
Fan motor power200 W
Supply voltage220 V
Power consumption380 W
Net weight39 kg
Protection class (IP)IP40
Flame tube length180 mm
Flame tube diameter125 mm
Flame tube typeshort
Back pressure (combustion chamber)0–5 mbar
Gas consumption5.53–17.6 m³/h
Operating temperature-10–60 °C
Overall dimensions56 x 39.2 x 31.1 cm
Delivery scopewith combustion head
Additional featurescontinuous ventilation; high-temperature version
Other versions of this seriesEcoflam MAX GAS 170 · 23
Parts often differ between versions of one series: pick the version named on your rating plate.
- MAX GAS 170 LN PAB TC GN MB-ZRDLE 410
11 parts · 3142782-3123962 - MAX GAS 170 LN PAB TC MET.SR
11 parts · 3123956 · 3123956-3123960-3122302-3122300 +2 - MAX GAS 170 LN PAB TL GN (TW) SR
11 parts · 3142783 - MAX GAS 170 LN PAB TL MET.SR
11 parts · 3123957 · 3123957-3123960-3122300-3122302 +2 - MAX GAS 170 LN PAB TL (TW)
11 parts · 3142783-3123960-3122300 · 3142783-3123961 +1 - MAX GAS 170 LN PR TC GN
12 parts · 3143282 - MAX GAS 170 P TC HT CV TW
12 parts · 3146741 - MAX GAS 170 P TC HT CV TW MBDLE405
12 parts · 3146741-3123560-3122300 - MAX GAS 170 P TL TW LN
2 parts · 3142750 - MAX GAS 170 P TL TW LN MB-DLE 405
1 part · 3142750-3123560-3122300-3122302 - MAX GAS 170 P TL TW LN MB-DLE 407
1 part · 3142750-3123525 - MAX GAS 170 P TL TW LN MB-DLE 410
1 part · 3142750-3123947
All 23 versions
- MAX GAS 170 E PR TC
12 parts · 3146324 - MAX GAS 170 E PR TL
12 parts · 3146325 - MAX GAS 170 LN P TC HT TW
12 parts · 3141815 - MAX GAS 170 LN P TC TW
11 parts · 3142749 - MAX GAS 170 LN PAB TC GN
11 parts · 3142782 - MAX GAS 170 LN PAB TC GN MB-ZRDLE 405
11 parts · 3142782-3123960-3122300 - MAX GAS 170 LN PAB TC GN MB-ZRDLE 407
11 parts · 3142782-3123961 - MAX GAS 170 LN PAB TC GN MB-ZRDLE 410
11 parts · 3142782-3123962 - MAX GAS 170 LN PAB TC MET.SR
11 parts · 3123956 · 3123956-3123960-3122302-3122300 +2 - MAX GAS 170 LN PAB TL GN (TW) SR
11 parts · 3142783 - MAX GAS 170 LN PAB TL MET.SR
11 parts · 3123957 · 3123957-3123960-3122300-3122302 +2 - MAX GAS 170 LN PAB TL (TW)
11 parts · 3142783-3123960-3122300 · 3142783-3123961 +1 - MAX GAS 170 LN PR TC GN
12 parts · 3143282 - MAX GAS 170 P TC HT CV TW
12 parts · 3146741 - MAX GAS 170 P TC HT CV TW MBDLE405
12 parts · 3146741-3123560-3122300 - MAX GAS 170 P TL TW LN
2 parts · 3142750 - MAX GAS 170 P TL TW LN MB-DLE 405
1 part · 3142750-3123560-3122300-3122302 - MAX GAS 170 P TL TW LN MB-DLE 407
1 part · 3142750-3123525 - MAX GAS 170 P TL TW LN MB-DLE 410
1 part · 3142750-3123947 - MAX GAS 170 P TW TL HT CV
12 parts · 3141830 - MAX GAS 170 P TW TL HT CV MBDLE405
12 parts · 3141830-3123560-3122300 - MAX GAS 170 PAB
11 parts · 3143956 - MAX GAS 170 PR TL MET
12 parts · 3122494
Questions about Ecoflam MAX GAS 170 P TC HT CV TW parts
Which burner components fit Ecoflam MAX GAS 170 P TC HT CV TW?
These fit Ecoflam MAX GAS 170 P TC HT CV TW: Ecoflam Adjustment Rod 65320215; Ecoflam Equalizing Disc 65320823; Ecoflam Gas Head Cover 65321613; Elco Holder D10/6.4x10 65321453. ↑
Which ionization & ignition electrodes fit Ecoflam MAX GAS 170 P TC HT CV TW?
These fit Ecoflam MAX GAS 170 P TC HT CV TW: Ecoflam Ionization Electrode 65322162; Ecoflam Ionization Electrode 65325242; Ecoflam Ignition Electrode 65325243. ↑
Which burner pipes, flanges & connections fit Ecoflam MAX GAS 170 P TC HT CV TW?
These fit Ecoflam MAX GAS 170 P TC HT CV TW: Ecoflam Nipple Set 65324718; Ecoflam Gas Elbow 65325502. ↑
Which burners fit Ecoflam MAX GAS 170 P TC HT CV TW?
These fit Ecoflam MAX GAS 170 P TC HT CV TW: Ecoflam Burner Housing 65325500. ↑
Which control box terminals fit Ecoflam MAX GAS 170 P TC HT CV TW?
These fit Ecoflam MAX GAS 170 P TC HT CV TW: Elco Control Unit Holder 65325251. ↑
Which ignition cables and connectors fit Ecoflam MAX GAS 170 P TC HT CV TW?
These fit Ecoflam MAX GAS 170 P TC HT CV TW: Ecoflam Ionization Cable 65325261. ↑
