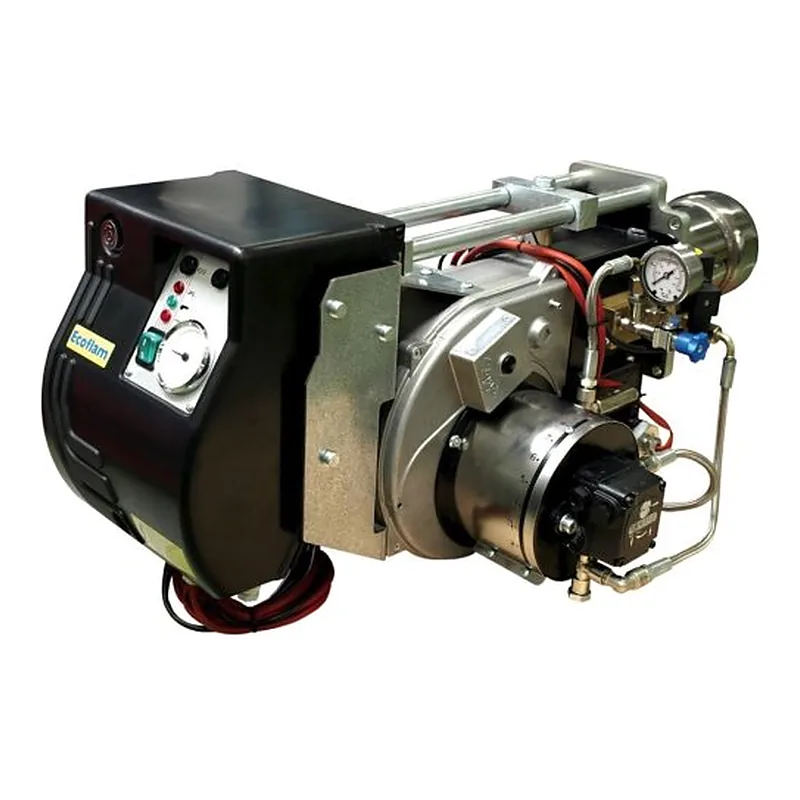

Ecoflam MAXFLAM 30 AB TC — spare parts
- Fuel
- Oil
- Output
- 205–410 kW
- Parts
- 11
- Factory code
- 3142600
- Series
- MAXFLAM 30 · 4
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Ecoflam MAXFLAM 30 AB TC · 3
—on request
—on request
Motors for Ecoflam MAXFLAM 30 AB TC · 3
—on request
—on request
—on request
Wiring, cables & electrical components for Ecoflam MAXFLAM 30 AB TC · 2
—on request
—on request
Actuators for Ecoflam MAXFLAM 30 AB TC · 1
—on request
Oil preheaters for Ecoflam MAXFLAM 30 AB TC · 1
—on request
Sensors and switches for Ecoflam MAXFLAM 30 AB TC · 1
—on request
What is inside Ecoflam MAXFLAM 30 AB TC
Components named in the manufacturer's documentation.
- LMO44
- Siemens LMO 44
- suntec suntec
Specifications
FuelOil
Output205–410 kW
Firing stagesTwo-stage
Fan motor power740 W
Power consumption5500 W
Net weight62.1 kg
Protection class (IP)IP40
Flame tube length205 mm
Flame tube diameter160 mm
Flame tube typeshort
Back pressure (combustion chamber)0–6 mbar
Noise level74 dB
Operating temperature-10–60 °C
Overall dimensions85.8 x 56.2 x 36.5 cm
Delivery scopewith combustion head
Other versions of this seriesEcoflam MAXFLAM 30 · 4
Parts often differ between versions of one series: pick the version named on your rating plate.
- MAXFLAM 30 AB TC
11 parts · 3142600 - MAXFLAM 30 AB TL
11 parts · 3143331 - MAXFLAM 30 TC
11 parts · 3143328 - MAXFLAM 30 TL
11 parts · 3143329
Questions about Ecoflam MAXFLAM 30 AB TC parts
Which burner components fit Ecoflam MAXFLAM 30 AB TC?
These fit Ecoflam MAXFLAM 30 AB TC: Ecoflam Air Pressure Nipple 65323053; Ecoflam Tube Filter 65325059; Ecoflam Adapter Hub 65325308. ↑
Which motors fit Ecoflam MAXFLAM 30 AB TC?
These fit Ecoflam MAXFLAM 30 AB TC: Ecoflam Electric Motor Clutch 65324200; Ecoflam Electric Motor Clutch 65324204; Ecoflam Electric Motor Clutch 65324205. ↑
Which wiring, cables & electrical components fit Ecoflam MAXFLAM 30 AB TC?
These fit Ecoflam MAXFLAM 30 AB TC: AEG Minicontactor LS 05.10-50 65323132; Finder Intermediate Relay 55.34.8.230.0054. ↑
Which actuators fit Ecoflam MAXFLAM 30 AB TC?
These fit Ecoflam MAXFLAM 30 AB TC: CIB Unigas Actuator 2480057. ↑
Which oil preheaters fit Ecoflam MAXFLAM 30 AB TC?
These fit Ecoflam MAXFLAM 30 AB TC: Ecoflam Heater Tank Assembly 65325283. ↑
Which sensors and switches fit Ecoflam MAXFLAM 30 AB TC?
These fit Ecoflam MAXFLAM 30 AB TC: AEG Thermal Relay 65323122. ↑
