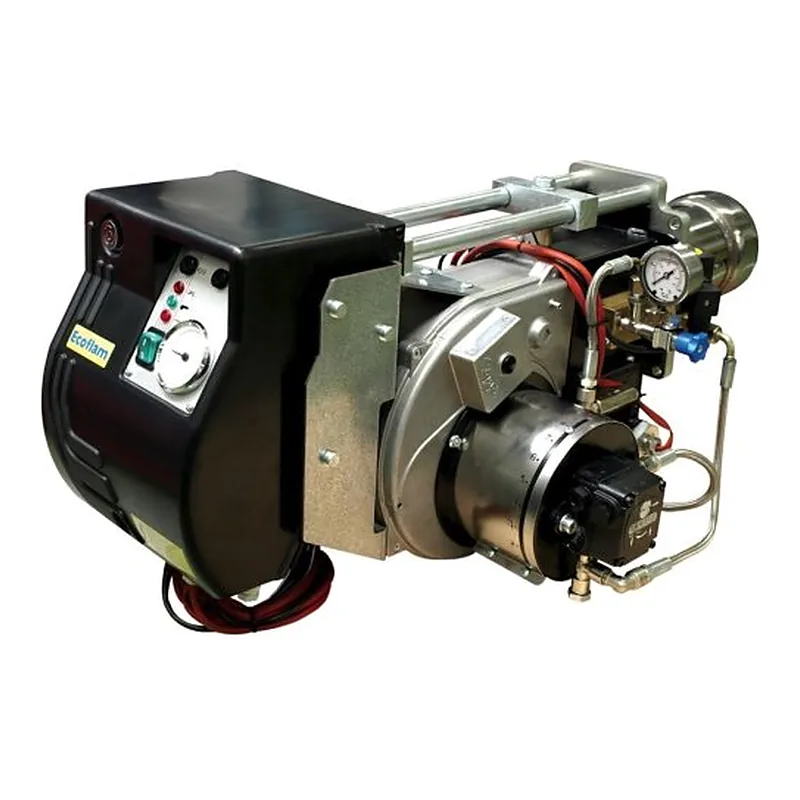

Ecoflam MAXFLAM 30 TC — spare parts
- Fuel
- Oil
- Output
- 170–340 kW
- Parts
- 11
- Factory code
- 3143328
- Series
- MAXFLAM 30 · 4
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Motors for Ecoflam MAXFLAM 30 TC · 4
—on request
—on request
—on request
Wiring, cables & electrical components for Ecoflam MAXFLAM 30 TC · 2
—on request
—on request
Blast tubes & combustion heads for Ecoflam MAXFLAM 30 TC · 1
—on request
Burner components for Ecoflam MAXFLAM 30 TC · 1
—on request
Gas valves for Ecoflam MAXFLAM 30 TC · 1
—on request
Ionization & ignition electrodes for Ecoflam MAXFLAM 30 TC · 1
—on request
Oil pumps for Ecoflam MAXFLAM 30 TC · 1
—on request
Specifications
FuelOil
Output170–340 kW
Firing stagesSingle-stage
Fan motor power740 W
Power consumption5500 W
Net weight74 kg
Protection class (IP)IP40
Flame tube length210 mm
Flame tube diameter160 mm
Flame tube typeshort
Back pressure (combustion chamber)0–3 mbar
Noise level74 dB
Operating temperature-10–60 °C
Overall dimensions86.3 x 52 x 26.6 cm
Delivery scopewith combustion head
Other versions of this seriesEcoflam MAXFLAM 30 · 4
Parts often differ between versions of one series: pick the version named on your rating plate.
- MAXFLAM 30 AB TC
11 parts · 3142600 - MAXFLAM 30 AB TL
11 parts · 3143331 - MAXFLAM 30 TC
11 parts · 3143328 - MAXFLAM 30 TL
11 parts · 3143329
Questions about Ecoflam MAXFLAM 30 TC parts
Which motors fit Ecoflam MAXFLAM 30 TC?
These fit Ecoflam MAXFLAM 30 TC: Ecoflam Electric Motor Clutch 65324200; Ecoflam Electric Motor Clutch 65324204; Ecoflam Electric Motor Clutch 65324205; Elco Electric Motor 65324202. ↑
Which wiring, cables & electrical components fit Ecoflam MAXFLAM 30 TC?
These fit Ecoflam MAXFLAM 30 TC: AEG Minicontactor LS 05.10-50 65323132; Cogema Network Interference Filter 951409. ↑
Which blast tubes & combustion heads fit Ecoflam MAXFLAM 30 TC?
These fit Ecoflam MAXFLAM 30 TC: Ecoflam Blast tube head 65324189. ↑
Which burner components fit Ecoflam MAXFLAM 30 TC?
These fit Ecoflam MAXFLAM 30 TC: Ecoflam Tube Filter 65325059. ↑
Which gas valves fit Ecoflam MAXFLAM 30 TC?
These fit Ecoflam MAXFLAM 30 TC: Riello Solenoid Valve 3012520. ↑
Which ionization & ignition electrodes fit Ecoflam MAXFLAM 30 TC?
These fit Ecoflam MAXFLAM 30 TC: Ecoflam Ignition Electrode 65320952. ↑
