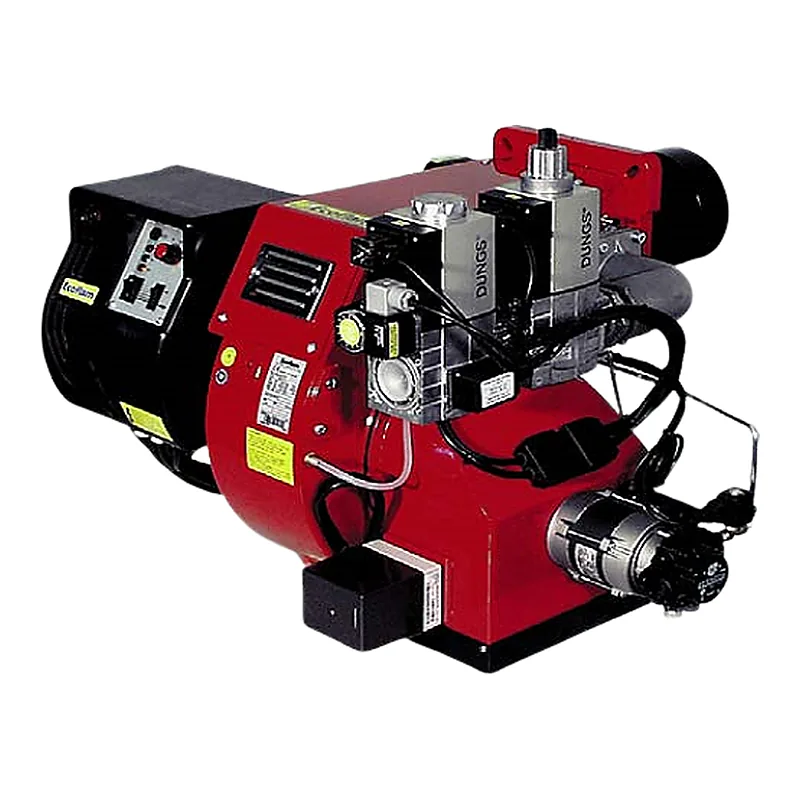

Ecoflam MULTICALOR 140 PRE TL MB-DLE 420 — spare parts
- Output
- 250–1300 kW
- Parts
- 12
- Factory code
- 3145141-3145934
- Series
- MULTICALOR 140 · 24
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Wiring, cables & electrical components for Ecoflam MULTICALOR 140 PRE TL MB-DLE 420 · 4
—on request
—on request
—on request
Burner components for Ecoflam MULTICALOR 140 PRE TL MB-DLE 420 · 3
—on request
—on request
—on request
Blast tubes & combustion heads for Ecoflam MULTICALOR 140 PRE TL MB-DLE 420 · 1
—on request
Boiler components for Ecoflam MULTICALOR 140 PRE TL MB-DLE 420 · 1
—on request
Boiler filters, gaskets & seals for Ecoflam MULTICALOR 140 PRE TL MB-DLE 420 · 1
—on request
Burners for Ecoflam MULTICALOR 140 PRE TL MB-DLE 420 · 1
—on request
Sensors and switches for Ecoflam MULTICALOR 140 PRE TL MB-DLE 420 · 1
—on request
Specifications
Output250–1300 kW
Gas connectionRp 2"
Fan motor power2200 W
Protection class (IP)IP55
Flame tube length457 mm
Flame tube diameter215 mm
Flame tube typeextended
Back pressure (combustion chamber)0–8.7 mbar
Gas consumption40.1–130.4 m³/h
Gas train pressure10–47 mbar
Operating temperature-10–60 °C
Overall dimensions120.7 x 107 x 49.7 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesEcoflam MULTICALOR 140 · 24
Parts often differ between versions of one series: pick the version named on your rating plate.
- MULTICALOR 140 PR-AB TL MB-DLE 415
9 parts · 3142637-3141846 - MULTICALOR 140 PR-AB TL MB-DLE 420
9 parts · 3142637-3141847 - MULTICALOR 140 PR-AB TL VGD 20.503
9 parts · 3142637-3123860 - MULTICALOR 140 PRE TL
12 parts · 3145141 - MULTICALOR 140 PRE TL MB-DLE 412
12 parts · 3145141-3145932 - MULTICALOR 140 PRE TL MB-DLE 415
12 parts · 3145141-3145933 - MULTICALOR 140 PRE TL MB-DLE 420
12 parts · 3145141-3145934 - MULTICALOR 140 TC
9 parts · 3140439 - MULTICALOR 140 TC MB-DLE 412
9 parts · 3140439-3141845 - MULTICALOR 140 TC MB-DLE 415
9 parts · 3140439-3141846 - MULTICALOR 140 TC MB-DLE 420
9 parts · 3140439-3141847 - MULTICALOR 140 TC VGD
9 parts · 3140439-3123860-3121384
All 24 versions
- MULTICALOR 140 PR-AB TC GN SR
9 parts · 3142636 - MULTICALOR 140 PR-AB TC MB-DLE 412
9 parts · 3142636-3141845 - MULTICALOR 140 PR-AB TC MB-DLE 415
9 parts · 3142636-3141846 - MULTICALOR 140 PR-AB TC MB-DLE 420
9 parts · 3142636-3141847 - MULTICALOR 140 PR-AB TC VGD 20.503
9 parts · 3142636-3123860 - MULTICALOR 140 PR-AB TL GN SR
9 parts · 3142637 - MULTICALOR 140 PR-AB TL MB-DLE 412
9 parts · 3142637-3141845 - MULTICALOR 140 PR-AB TL MB-DLE 415
9 parts · 3142637-3141846 - MULTICALOR 140 PR-AB TL MB-DLE 420
9 parts · 3142637-3141847 - MULTICALOR 140 PR-AB TL VGD 20.503
9 parts · 3142637-3123860 - MULTICALOR 140 PRE TL
12 parts · 3145141 - MULTICALOR 140 PRE TL MB-DLE 412
12 parts · 3145141-3145932 - MULTICALOR 140 PRE TL MB-DLE 415
12 parts · 3145141-3145933 - MULTICALOR 140 PRE TL MB-DLE 420
12 parts · 3145141-3145934 - MULTICALOR 140 TC
9 parts · 3140439 - MULTICALOR 140 TC MB-DLE 412
9 parts · 3140439-3141845 - MULTICALOR 140 TC MB-DLE 415
9 parts · 3140439-3141846 - MULTICALOR 140 TC MB-DLE 420
9 parts · 3140439-3141847 - MULTICALOR 140 TC VGD
9 parts · 3140439-3123860-3121384 - MULTICALOR 140 TL GASOL-MET-GPL S-Ra
9 parts · 3140438 - MULTICALOR 140 TL MB-DLE 412
9 parts · 3140438-3141845 - MULTICALOR 140 TL MB-DLE 415
9 parts · 3140438-3141846 - MULTICALOR 140 TL MB-DLE 420
9 parts · 3140438-3141847 - MULTICALOR 140 TL VGD
9 parts · 3140438-3123860
Questions about Ecoflam MULTICALOR 140 PRE TL MB-DLE 420 parts
Which wiring, cables & electrical components fit Ecoflam MULTICALOR 140 PRE TL MB-DLE 420?
These fit Ecoflam MULTICALOR 140 PRE TL MB-DLE 420: AEG Minicontactor LS 05.10-50 65323132; Ecoflam Indicator lamp 65324100; Ecoflam Indicator Lamp Base 65325033; Ecoflam Indicator lamp base 65325044. ↑
Which burner components fit Ecoflam MULTICALOR 140 PRE TL MB-DLE 420?
These fit Ecoflam MULTICALOR 140 PRE TL MB-DLE 420: Ecoflam Adjustment Rod 65320230; Ecoflam Air Ring 65320639; Ecoflam Fusible link nest 65324279. ↑
Which blast tubes & combustion heads fit Ecoflam MULTICALOR 140 PRE TL MB-DLE 420?
These fit Ecoflam MULTICALOR 140 PRE TL MB-DLE 420: Ecoflam Universal Blast Tube 65320420. ↑
Which boiler components fit Ecoflam MULTICALOR 140 PRE TL MB-DLE 420?
These fit Ecoflam MULTICALOR 140 PRE TL MB-DLE 420: Ecoflam Sight Glass 65320487. ↑
Which boiler filters, gaskets & seals fit Ecoflam MULTICALOR 140 PRE TL MB-DLE 420?
These fit Ecoflam MULTICALOR 140 PRE TL MB-DLE 420: Elco Flange Gasket 65321119. ↑
Which burners fit Ecoflam MULTICALOR 140 PRE TL MB-DLE 420?
These fit Ecoflam MULTICALOR 140 PRE TL MB-DLE 420: Ecoflam Burner Cover 65324052. ↑
