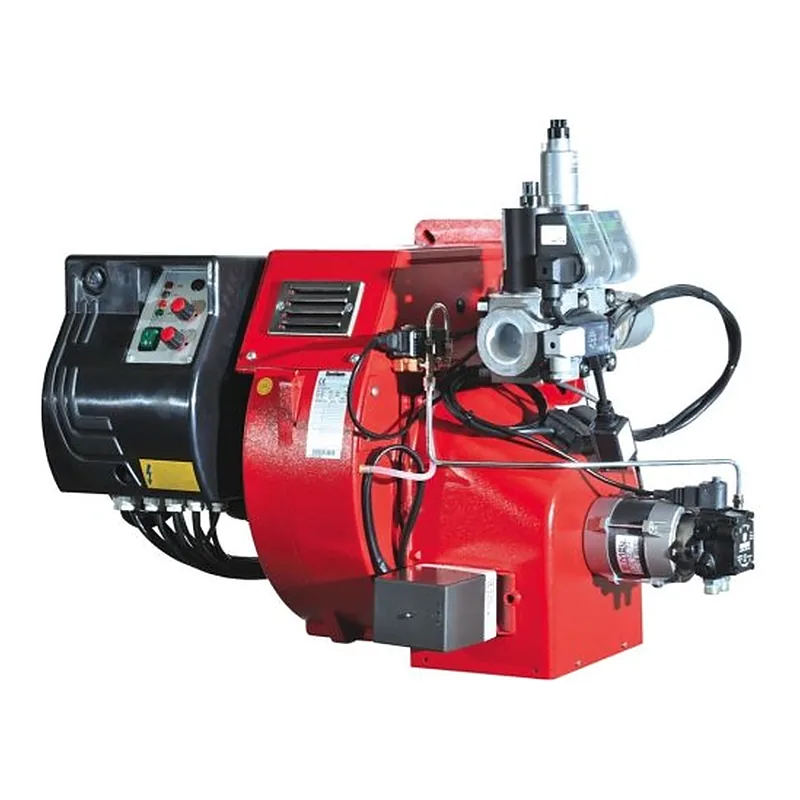

Ecoflam MULTICALOR 140 TC MB-DLE 415 — spare parts
- Output
- 400–1300 kW
- Parts
- 9
- Factory code
- 3140439-3141846
- Series
- MULTICALOR 140 · 24
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Wiring, cables & electrical components for Ecoflam MULTICALOR 140 TC MB-DLE 415 · 3
—on request
—on request
Burner components for Ecoflam MULTICALOR 140 TC MB-DLE 415 · 1
—on request
Burner pipes, flanges & connections for Ecoflam MULTICALOR 140 TC MB-DLE 415 · 1
—on request
Control devices for Ecoflam MULTICALOR 140 TC MB-DLE 415 · 1
—on request
Gas valves & coils for Ecoflam MULTICALOR 140 TC MB-DLE 415 · 1
—on request
Nozzle adapters for Ecoflam MULTICALOR 140 TC MB-DLE 415 · 1
—on request
Sensors and switches for Ecoflam MULTICALOR 140 TC MB-DLE 415 · 1
—on request
Specifications
Output400–1300 kW
Gas connectionRp 1 1/2"
Firing stagesTwo-stage
Fan motor power2200 W
Flame tube length307 mm
Flame tube diameter215 mm
Flame tube typeshort
Back pressure (combustion chamber)0–8.7 mbar
Gas consumption40.1–130.4 m³/h
Gas train pressure13–58 mbar
Operating temperature-10–60 °C
Overall dimensions86.2 x 107 x 49.7 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesEcoflam MULTICALOR 140 · 24
Parts often differ between versions of one series: pick the version named on your rating plate.
- MULTICALOR 140 PRE TL
12 parts · 3145141 - MULTICALOR 140 PRE TL MB-DLE 412
12 parts · 3145141-3145932 - MULTICALOR 140 PRE TL MB-DLE 415
12 parts · 3145141-3145933 - MULTICALOR 140 PRE TL MB-DLE 420
12 parts · 3145141-3145934 - MULTICALOR 140 TC
9 parts · 3140439 - MULTICALOR 140 TC MB-DLE 412
9 parts · 3140439-3141845 - MULTICALOR 140 TC MB-DLE 415
9 parts · 3140439-3141846 - MULTICALOR 140 TC MB-DLE 420
9 parts · 3140439-3141847 - MULTICALOR 140 TC VGD
9 parts · 3140439-3123860-3121384 - MULTICALOR 140 TL GASOL-MET-GPL S-Ra
9 parts · 3140438 - MULTICALOR 140 TL MB-DLE 412
9 parts · 3140438-3141845 - MULTICALOR 140 TL MB-DLE 415
9 parts · 3140438-3141846
All 24 versions
- MULTICALOR 140 PR-AB TC GN SR
9 parts · 3142636 - MULTICALOR 140 PR-AB TC MB-DLE 412
9 parts · 3142636-3141845 - MULTICALOR 140 PR-AB TC MB-DLE 415
9 parts · 3142636-3141846 - MULTICALOR 140 PR-AB TC MB-DLE 420
9 parts · 3142636-3141847 - MULTICALOR 140 PR-AB TC VGD 20.503
9 parts · 3142636-3123860 - MULTICALOR 140 PR-AB TL GN SR
9 parts · 3142637 - MULTICALOR 140 PR-AB TL MB-DLE 412
9 parts · 3142637-3141845 - MULTICALOR 140 PR-AB TL MB-DLE 415
9 parts · 3142637-3141846 - MULTICALOR 140 PR-AB TL MB-DLE 420
9 parts · 3142637-3141847 - MULTICALOR 140 PR-AB TL VGD 20.503
9 parts · 3142637-3123860 - MULTICALOR 140 PRE TL
12 parts · 3145141 - MULTICALOR 140 PRE TL MB-DLE 412
12 parts · 3145141-3145932 - MULTICALOR 140 PRE TL MB-DLE 415
12 parts · 3145141-3145933 - MULTICALOR 140 PRE TL MB-DLE 420
12 parts · 3145141-3145934 - MULTICALOR 140 TC
9 parts · 3140439 - MULTICALOR 140 TC MB-DLE 412
9 parts · 3140439-3141845 - MULTICALOR 140 TC MB-DLE 415
9 parts · 3140439-3141846 - MULTICALOR 140 TC MB-DLE 420
9 parts · 3140439-3141847 - MULTICALOR 140 TC VGD
9 parts · 3140439-3123860-3121384 - MULTICALOR 140 TL GASOL-MET-GPL S-Ra
9 parts · 3140438 - MULTICALOR 140 TL MB-DLE 412
9 parts · 3140438-3141845 - MULTICALOR 140 TL MB-DLE 415
9 parts · 3140438-3141846 - MULTICALOR 140 TL MB-DLE 420
9 parts · 3140438-3141847 - MULTICALOR 140 TL VGD
9 parts · 3140438-3123860
Questions about Ecoflam MULTICALOR 140 TC MB-DLE 415 parts
Which wiring, cables & electrical components fit Ecoflam MULTICALOR 140 TC MB-DLE 415?
These fit Ecoflam MULTICALOR 140 TC MB-DLE 415: Baltur Minicontactor 0005110110; Cogema Network Interference Filter 951409; Ecoflam Capacitor 14 uF 65321854. ↑
Which burner components fit Ecoflam MULTICALOR 140 TC MB-DLE 415?
These fit Ecoflam MULTICALOR 140 TC MB-DLE 415: Ecoflam Fusible Link Nest 65322181. ↑
Which burner pipes, flanges & connections fit Ecoflam MULTICALOR 140 TC MB-DLE 415?
These fit Ecoflam MULTICALOR 140 TC MB-DLE 415: Ecoflam Nipple Set 65322346. ↑
Which control devices fit Ecoflam MULTICALOR 140 TC MB-DLE 415?
These fit Ecoflam MULTICALOR 140 TC MB-DLE 415: Finder Time Relay 85.04.8.240.0000.PAS. ↑
Which gas valves & coils fit Ecoflam MULTICALOR 140 TC MB-DLE 415?
These fit Ecoflam MULTICALOR 140 TC MB-DLE 415: Elco Electromagnetic coil Delta F84 NC 65323765. ↑
Which nozzle adapters fit Ecoflam MULTICALOR 140 TC MB-DLE 415?
These fit Ecoflam MULTICALOR 140 TC MB-DLE 415: Ecoflam Nozzle adapter 65320711. ↑
